Woofer Speaker Driver - 8 Inch
These Response woofers are excellent for replacement or for new speaker design constructions. Not only are they price competitive and perform very well, but they also look fantastic!
The concave treated paper cone matched with rubber surround provides smooth overall response. Equipped strong steel frame baskets, high power magnet and voice coils, these drivers will produce massive quantities of clean bass output for any musical application.
The concave treated paper cone matched with rubber surround provides smooth overall response. Equipped strong steel frame baskets, high power magnet and voice coils, these drivers will produce massive quantities of clean bass output for any musical application.
Specifications:
| Driver Material | Coated Paper |

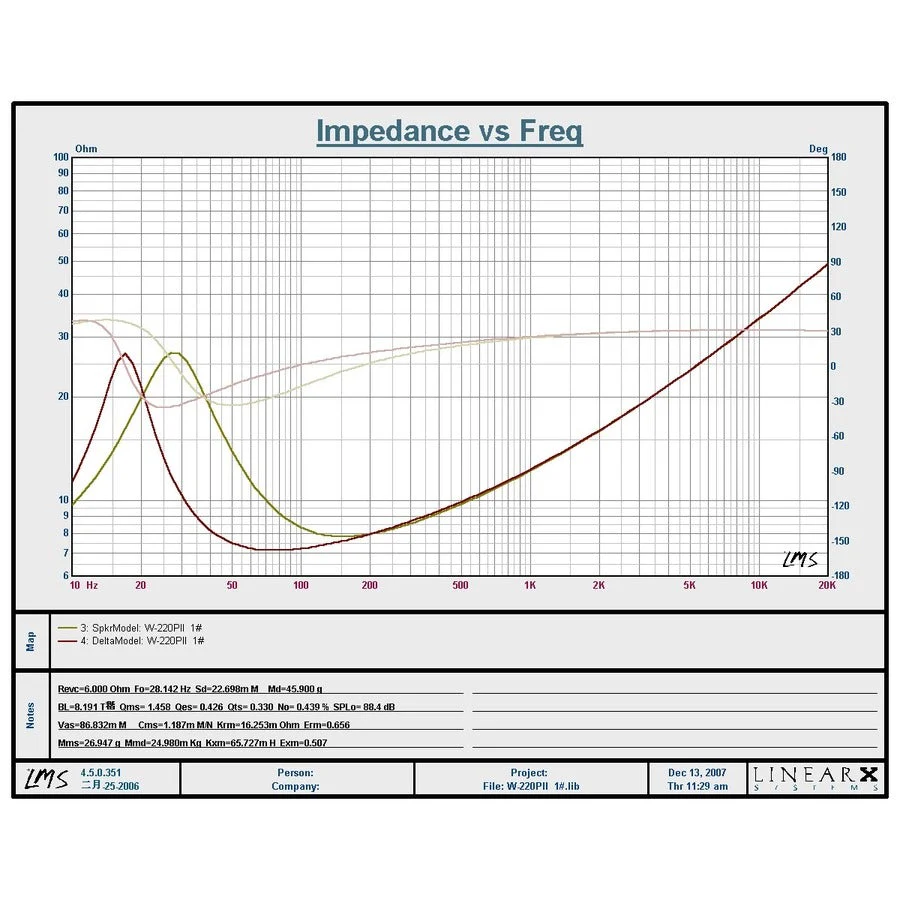

| Nominal Impedance | 8Ω |
| RMS Power Rating | 90W |

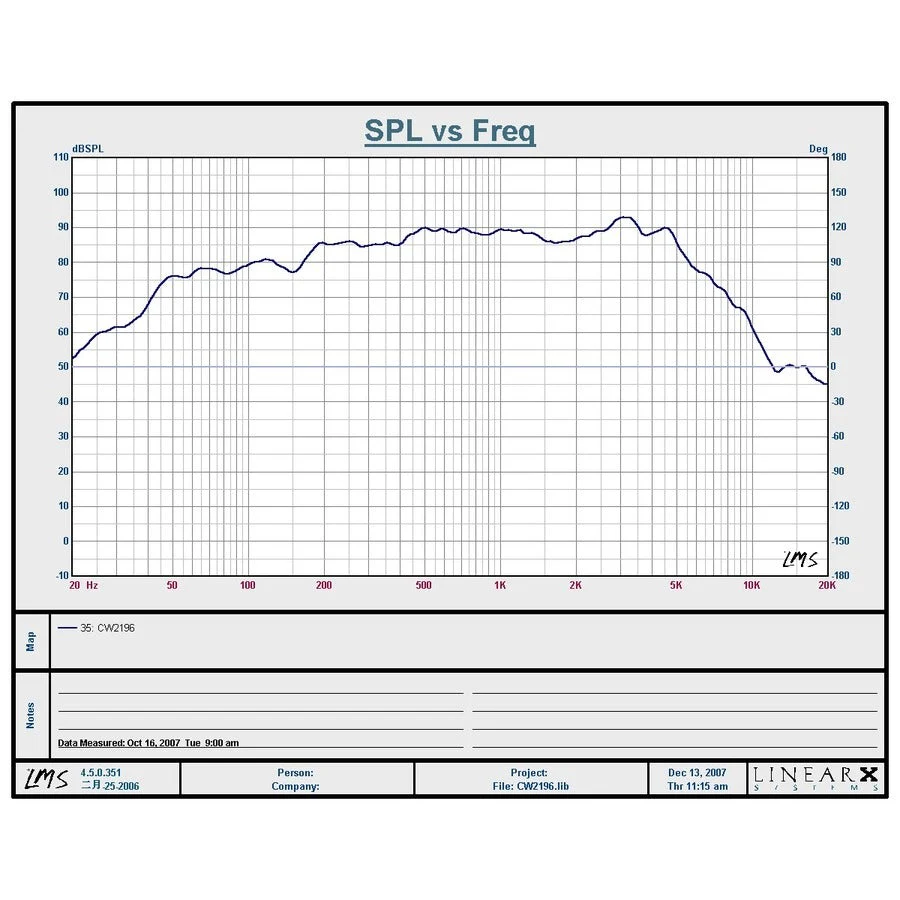

| Frequency Response | 38Hz-4.5kHz |
| Sensitivity (SPL@1W, 1m) | 89dB |
| Resonant Frequency | 28.1Hz |
| Driver Channels | Single Driver |
| Side-to-Side Diameter (A) | 220mm |
| Recommended Speaker Box Volume | 42l |
| Mechanical Q (Qms) | 1.46 |
| Electrical Q Factor (Qes) | 0.43 |
| Total Q (Qts) | 0.33 |
| Equivalent Volume (Vas) | 42l |
| DC Coil Resistance (Re) | 6Ω |
| Speaker Type | Woofer Driver |
| Mounting Hole Diameter (B) | 212mm |
| Cutout Diameter (C) | 182mm |
| Insert Depth (D) | 92mm |
| Cutout shape | Round |
| Mounting Method | Front of Panel |
| Attachment / Securing Method | Screw Down |
| Diameter | 220mm |
Downloads
- Download Datasheet
