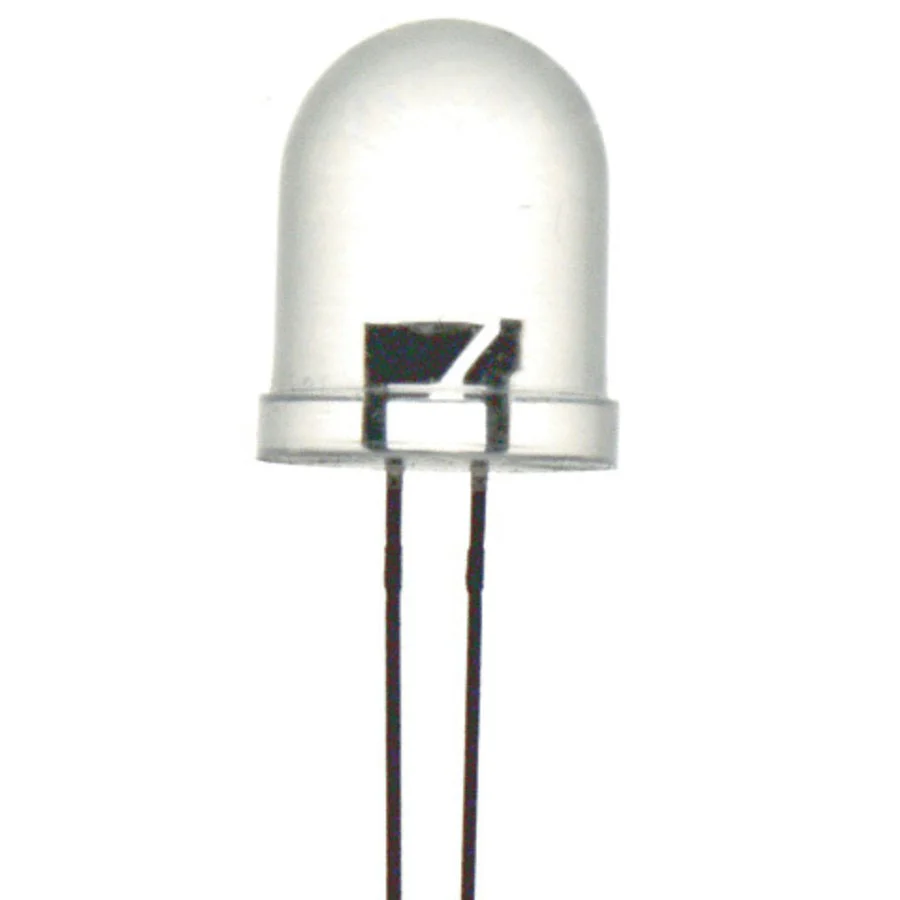

White 5mm LED 7000mcd Round Clear
White 5mm LED 7000mcd Round Clear
Specifications:
| Diameter | 5mm |
| LED Type | 5mm Standard LED |
| Illumination Type | Single Colour |
| Light Colour | White |
| Light Wavelength | 0.31nm |
| Lens Type | waterclear |
| Viewing Angle | 20° |
| Intensity | 7000mcd |
| Vf (typ) - Typical Forward Voltage | 3.2V |
| If (typ) - Typical Forward Current | 20mA |
| If (max) - Maximum Forward Current | 30mA |
| Resistor for 5VDC | 91Ω |
| Resistor for 9VDC | 300Ω |
| Resistor for 12VDC | 430Ω |
Downloads
- Download Datasheet
White 5mm LED 7000mcd Round Clear
Specifications:
| Diameter | 5mm |
| LED Type | 5mm Standard LED |
| Illumination Type | Single Colour |
| Light Colour | White |
| Light Wavelength | 0.31nm |
| Lens Type | waterclear |
| Viewing Angle | 20° |
| Intensity | 7000mcd |
| Vf (typ) - Typical Forward Voltage | 3.2V |
| If (typ) - Typical Forward Current | 20mA |
| If (max) - Maximum Forward Current | 30mA |
| Resistor for 5VDC | 91Ω |
| Resistor for 9VDC | 300Ω |
| Resistor for 12VDC | 430Ω |
Downloads
- Download Datasheet
$1.15
White 5mm LED 7000mcd Round Clear—
$1.15
