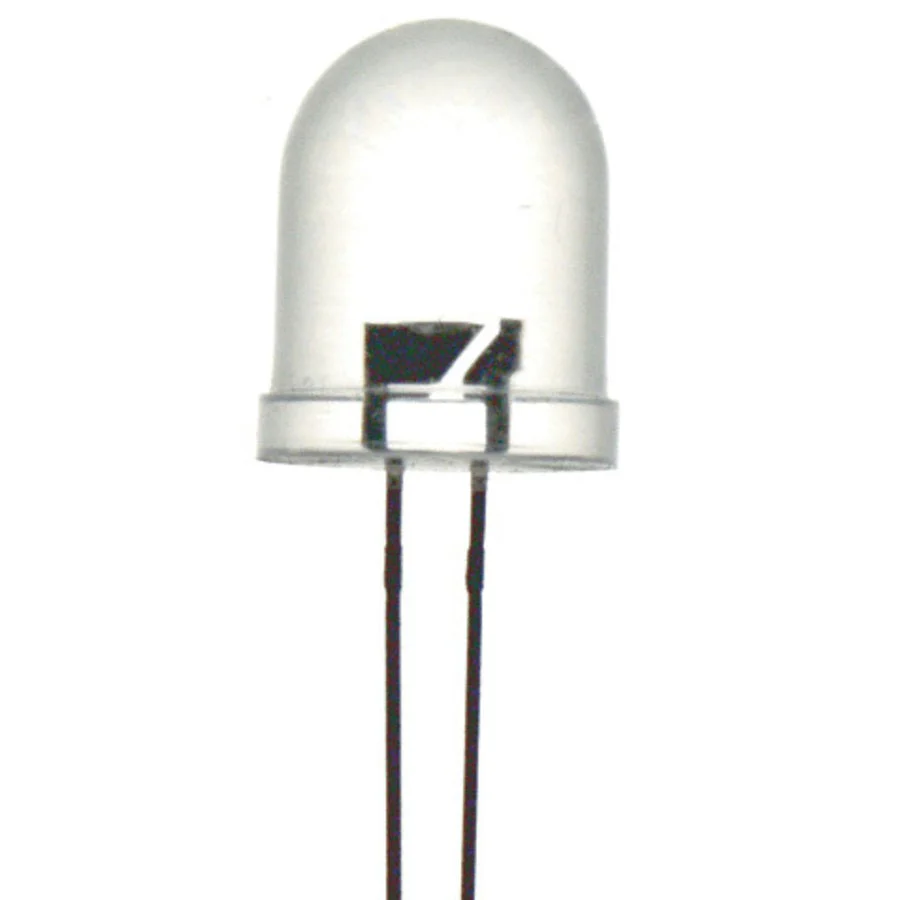

White 10mm LED 5000mcd Round Clear
White 10mm LED 5000mcd Round Clear
Specifications:
| Diameter | 10mm |
| LED Type | 10mm Standard LED |
| Illumination Type | Single Colour |
| Light Colour | White |
| Light Wavelength | 0.25nm |
| Lens Type | waterclear |
| Viewing Angle | 30° |
| Intensity | 5000mcd |
| Vf (typ) - Typical Forward Voltage | 3.2V |
| If (typ) - Typical Forward Current | 20mA |
| If (max) - Maximum Forward Current | 30mA |
| Resistor for 5VDC | 91Ω |
| Resistor for 9VDC | 300Ω |
| Resistor for 12VDC | 430Ω |
Downloads
- Download Datasheet
