Westinghouse 60cm 4 Zone Ceramic Cooktop WHC643BE, Black Glass
- Summary
- Features
- Specifications
- Downloads
-

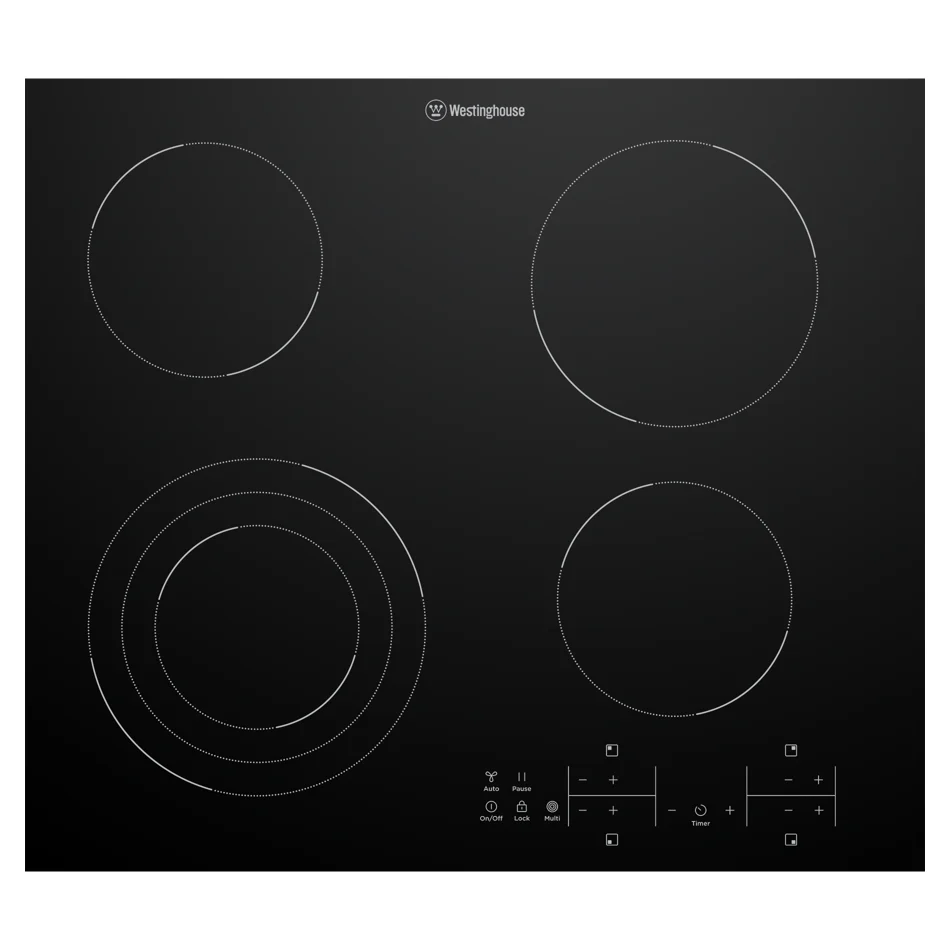

60cm 4 zone ceramic cooktop with Hob2Hood, triple variable zone, touch controls, and Pause function.
Clear the air with Hob2Hood
With Hob2Hood technology, compatible rangehoods work seamlessly with your induction or ceramic cooktop to clear your kitchen of cooking smells and steam. As you start cooking, the rangehood will automatically turn on then intuitively adjust the fan speed and airflow to match your cooking. How's that for hands-free convenience?
Triple zone, for pots of different sizes
Whether youre using your smallest pan or your larger pot theres an extra large cooking zone to handle them all. With the ability to adjust its diameter into three sizes, this unrivalled flexibility gives you the freedom to create your best meals yet.
Easy touch-on glass control
Total control is at your fingertips with a simple touch on the easy-clean glass control panel.
Hold everything with our clever Pause function
We know that family life is full of distractions. That's why you'll appreciate our clever Pause function. Simply touch the Pause icon on your cooktop and all operating induction zones will drop to the lowest setting. When you're ready to go again, hit Pause again and settings will return to where you left off.
Timed to perfection
Never over-cook or burn dinner again. Just set the cooking time and your cooktop will automatically turn the heat off for you.
Easy Clean Ceramic Surface
Not only aesthetically pleasing, the full glass ceramic hob with touch controls is easy to use and clean and eliminates dirt traps.
- Hob2Hood
- Triple Zone
- Touch on glass controls
- Pause
- QuickCook Timer
- 2.3kW powerful zone
- Residual Heat Indicator
- Child safety lock
- Easy clean ceramic surface
-
Dimension
- 51 mm (H)
- 590 mm (W)
- 520 mm (D)
Product profile
- Type: ceramic
- Finish: black ceramic glass
- Domestic warranty details (yrs): 2
- Removable trim (for cleaning): No
Dimensions
- Total product height (mm): 51 mm
- Total product width (mm): 590 mm
- Total product depth (mm): 520 mm
- Cut out width (mm): 560
- Cut out depth (mm): 490
Controls
- Control: touch
- Position of controls: front
- Functions of Cooktops: timer, Keep warm function, pause, Hob2Hood
- Indicators/display: fault indicator, residual heat warning lamps
- Features of Cooktop: safety child lock, hot surface indicator, safety cut off, electronic timer, Hob2Hood
- Timer of Cooktop: programmable 99min, countdown
Elements/burners
- Cooking Zones: 4
- Left front zone: ceramic triple
- Left front Watts: 2300
- Left front number of cooking zones: 1
- Left front diameter mm: 210
Electrical specifications
- Connected load KW: 6.5
- Type of connection: hardwired
Left rear zone
- Left rear zone: ceramic
- Left rear watts: 1200
- Left rear number of cooking zones: 1
- Left rear diameter mm: 140
Right front zone
- Right front zone: ceramic
- Right front Watts: 1200
- Right front number of cooking zones: 1
- Right front diameter mm: 140
Right rear zone
- Right rear zone: ceramic
- Right rear watts: 1800
- Right rear number of cooking zones: 1
- Right rear diameter mm: 180
-
Westinghouse Ceramic Hob User Manual.pdf
Westinghouse Cooktop Dimension Sheet.pdf
Westinghouse WHC643BE Fact Sheet.pdf
