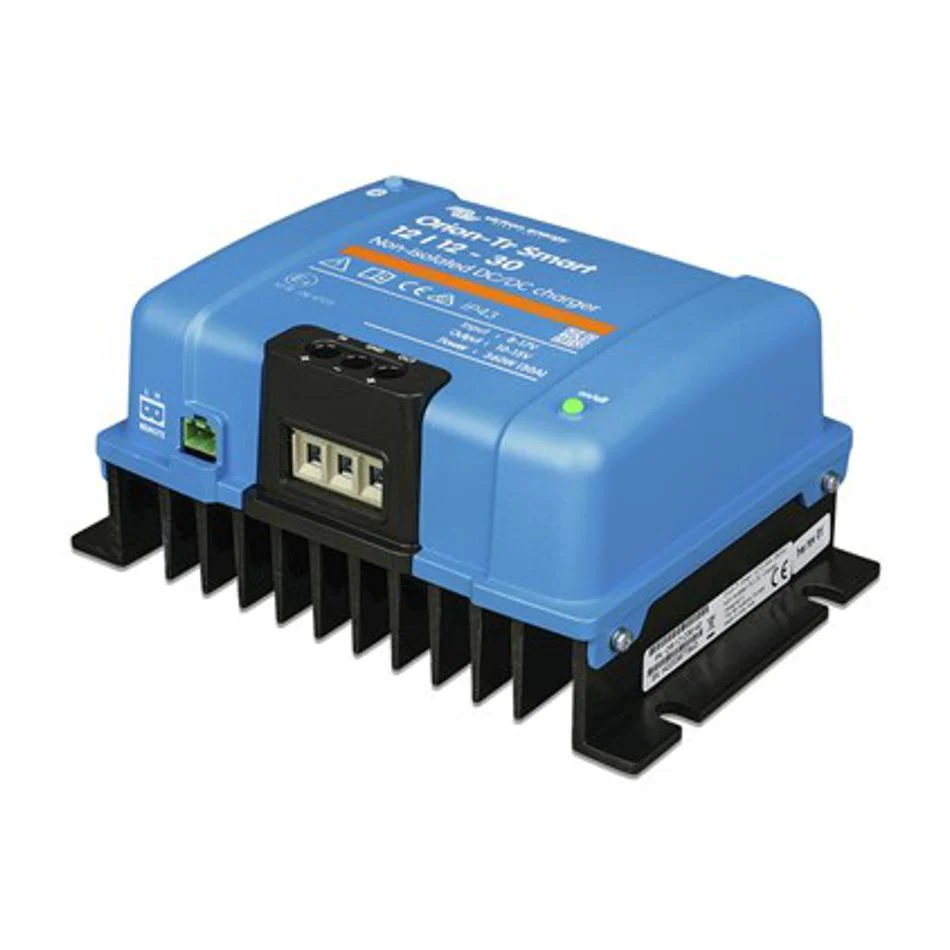

Victron Orion-Tr Smart 12/12-30A (360W) Non-Isolated Dc-Dc Charger
- Summary
- Specifications
-
This professional DC-DC charger is designed for dual-battery systems in vehicles or boats where the alternator and the start battery are used to charge the service battery. A configurable 3-stage charge algorithm provides an adaptive bulk, absorption, or float modes to keep your 12V lead-acid or Lithium service battery in top condition. Alternatively, a fixed voltage can be chosen. Features include engine running and shutdown detection, remote on/off switch capability for manual or BMS control, and Bluetooth® technology to monitor charging status in real-time, view historical data, or program via a Bluetooth® enabled Smartphone, tablet or laptop. In addition, the charger can also double as a stable power supply to power 12V devices in your vehicle, such as a fridge/freezer, which can automatically disconnect power at a pre-defined voltage to avoid the service battery going flat. Safety features include overload, over-temperature, and short circuit protection, and multiple units can be paralleled to increase the output current. Non-insulated.
FEATURES:- 3-stage charge algorithm
- Suits 12V Lead-acid or Lithium batteries
- Supports regular & smart ECU controlled alternators
- Bluetooth® enabled
- Remote on-off capability
Input Voltage: 10-17VDC
Under Voltage Shutdown: 7V
Under Voltage Restart: 7.5V
Output Voltage: 12.2V (nominal), 10 to 15V (Adjustable)
Output Current: Up to 30A (nominal), 40A (10s)
Short Circuit Output Current: 60A
Efficiency: 87%
No Load Input Current: <80mA
Standby Current: <1mA
Screw Terminals: 16mm2 (AWG6)Victron Orion-Tr Smart 12/12-30A (360W) Non-isolated DC-DC charger
Packaged Volume 1.04l Packaged Weight 0.29kg Packaged Length 15.7cm Packaged Width 8.8cm Packaged Height 7.5cm Width 205mm Height 130mm Depth 95mm Weight 1.8kg Dust/Particle Ingress Protection 6 - Dust tight, no ingress of dust Liquid/Moisture Ingress Protection 5 - Water jets IP Rating IP65 Type of Batteries Lithium Ferrous Phosphate (LiFePO4)Lead Acid Charger Output Voltage 12V Controller Type Non-Isolated Connection Type Spade Terminals Charger Output Current 30A Additional Functions Short Circuit ProtectionOverload ProtectionSafety Timer ProtectionBluetooth Monitoring Number of Modes 3 count Charger Input Voltage 8V, 17V Availability Stocked item Additional Information For more information on our shipping policy follow this link and for our returns policy click here.
