Victron Battery Monitor Bmv712-Smart With Built-In Bluetooth MS6194
- Summary
- Specifications
-

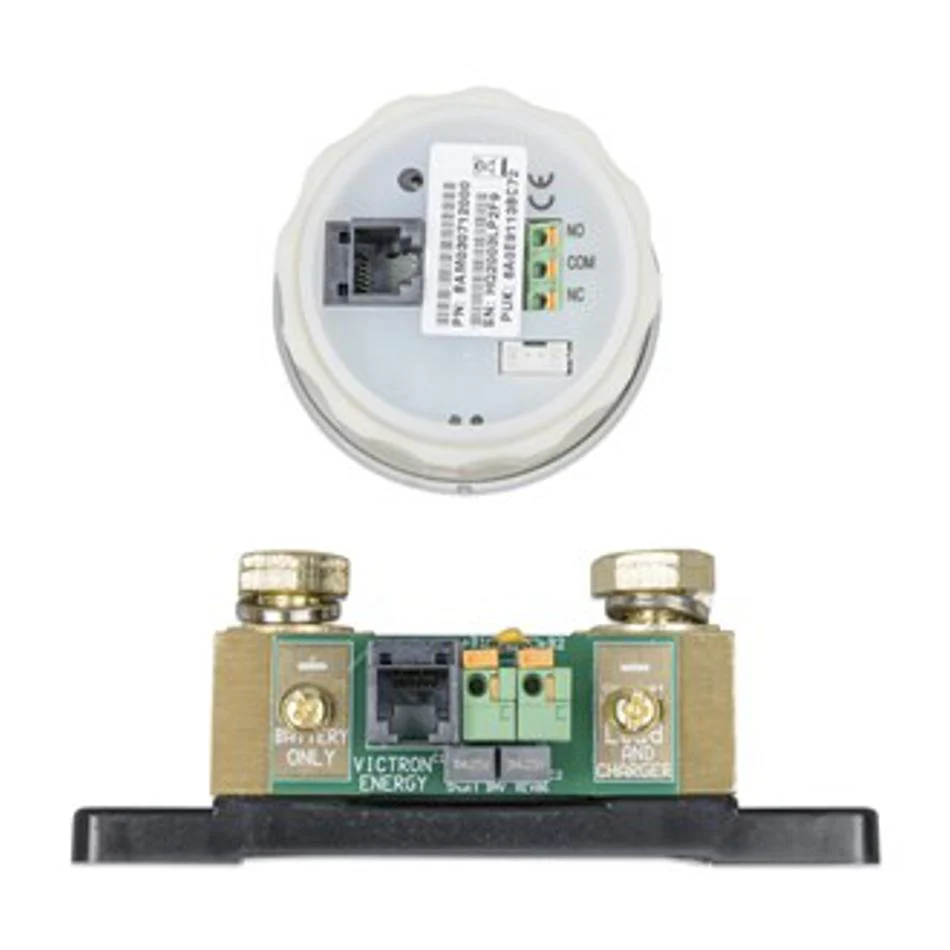

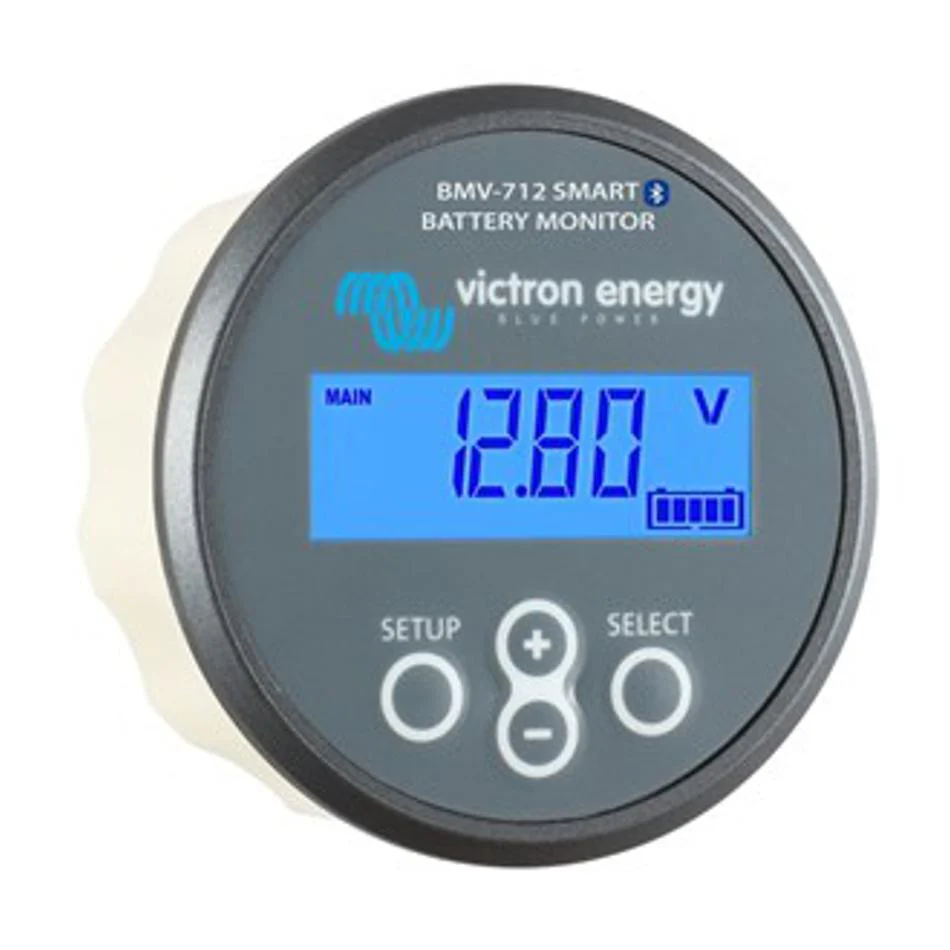

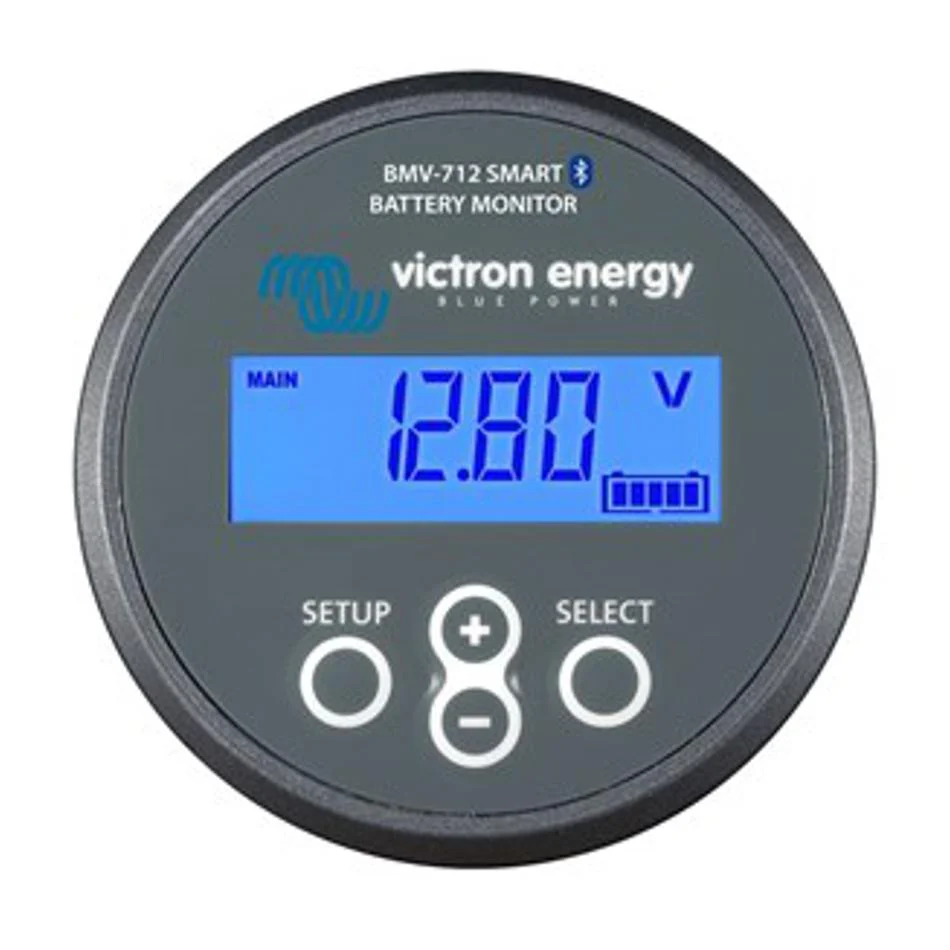

Use this high-precision smart battery monitor to keep an eye on your power usage and battery status, and to prevent unexpected total battery discharge. From the backlit display or Bluetooth® enabled Smartphone, tablet or computer, see comprehensive real-time data including voltages, Ampere hours or current being consumed, state of charge, and time to go before the battery needs charging. Historical data can also be accessed on-screen or via the App to evaluate usage patterns and battery health. Other features include second (auxiliary) battery monitoring, midpoint voltage function, as well as a range of alarm, buzzer and bi-stable relay outputs when pre-set thresholds are met. The round panel is designed to mount flush, and a square bezel is included if you prefer it has a square appearance. Supplied with 500A/50mV current shunt with quick-connect PCB, square bezel, fused power cable, and a 10m 6-core UTP connecting lead. Not intended for outdoor use.
Compatible with other Bluetooth® enabled Victron Energy products
- LED-backlit LCD screen
- Built-in Bluetooth
Supply Voltage: 6.5-70VDC
Battery Voltage: 6.5 - 70VDC
Battery Capacity: 1 - 9999Ah
Resolution:
- Current: +- 0.01A
- Voltage: +- 0.01V
- Amp Hours: +/- 0.01Ah
- SoC: +/- 0.1%
Accuracy:
- Current: +- 0.4%
- Voltage: +- 0.3%
Protection: IP55
Shunt Terminals: M10Victron Battery Monitor BMV712-Smart with built-in Bluetooth
Packaged Volume 4.91l Packaged Weight 1.09kg Packaged Length 27.6cm Packaged Width 23.4cm Packaged Height 7.6cm Dimension details Front Bezel: 69 x 69mm Dimension details Overall: 63(Dia.) x 31(D)mm Availability Stocked item Additional Information For more information on our shipping policy follow this link and for our returns policy click here.
