Tubular Key Change Over Keyswitch

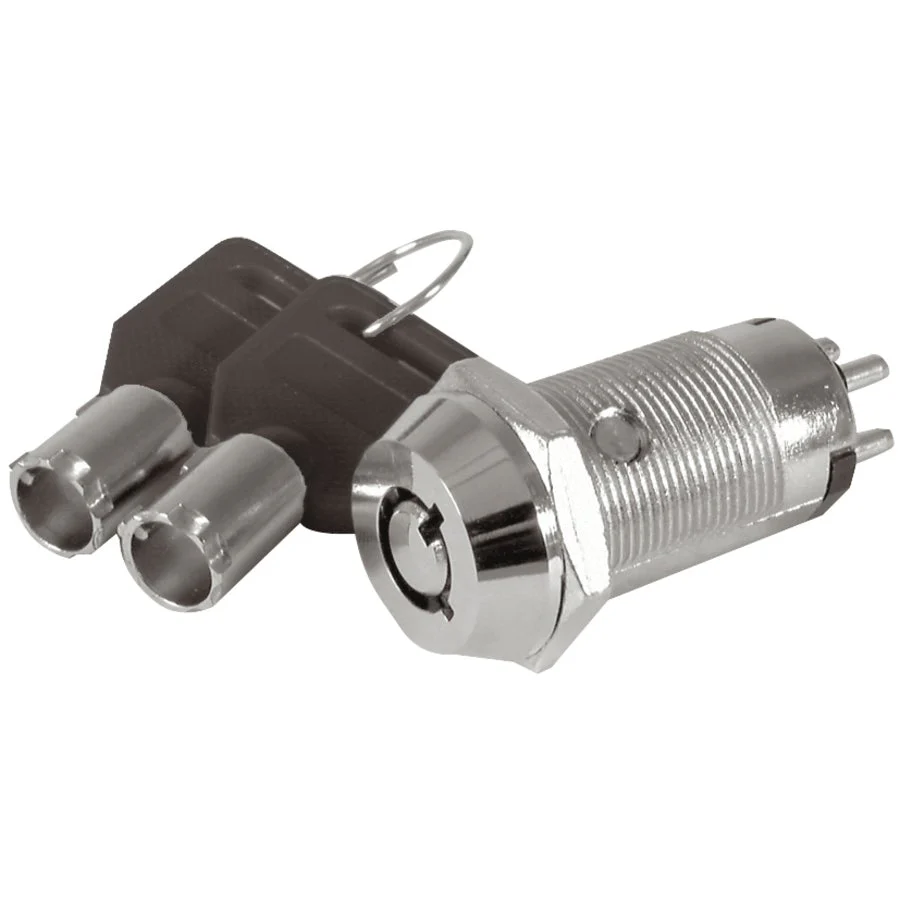

This keyswitch uses tubular keys with black plastic inserts to easily identify them. It has 2 positions and the key is removable from both. There are 4 connection terminals, however, it is not a regular Double Pole Single Throw (DPST) switch, but rather a dual Single Pole Single Throw (SPST) change-over switch as each pair of contacts is in the opposite state to the other.
So it could conceivably be wired to create a Single Pole Double Throw (SPDT) switch, or used in its native state to independently switch one circuit on while switching another off with complete isolation.
Contact rating is 2A, 250VAC.
So it could conceivably be wired to create a Single Pole Double Throw (SPDT) switch, or used in its native state to independently switch one circuit on while switching another off with complete isolation.
Contact rating is 2A, 250VAC.
Specifications:
| Switch Type | Key |
| Break/Make Function | Changeover Mechanism |
| Pole Throw Type | SPST |
| Switch Function | Locking On/Off |
| Throws / Positions | 2pos |
| Switch Connection | Solder Tags |
| Mechanism Material | Metal |
| Attachment / Securing Method | Collar / Nut |
| Mounting Method | Panel |
| AC Voltage rating | 250V |
| AC current rating | 2A |
| Length | 27mm |
| Height | 22mm |
Downloads
- Download Datasheet
This keyswitch uses tubular keys with black plastic inserts to easily identify them. It has 2 positions and the key is removable from both. There are 4 connection terminals, however, it is not a regular Double Pole Single Throw (DPST) switch, but rather a dual Single Pole Single Throw (SPST) change-over switch as each pair of contacts is in the opposite state to the other.
So it could conceivably be wired to create a Single Pole Double Throw (SPDT) switch, or used in its native state to independently switch one circuit on while switching another off with complete isolation.
Contact rating is 2A, 250VAC.
So it could conceivably be wired to create a Single Pole Double Throw (SPDT) switch, or used in its native state to independently switch one circuit on while switching another off with complete isolation.
Contact rating is 2A, 250VAC.
Specifications:
| Switch Type | Key |
| Break/Make Function | Changeover Mechanism |
| Pole Throw Type | SPST |
| Switch Function | Locking On/Off |
| Throws / Positions | 2pos |
| Switch Connection | Solder Tags |
| Mechanism Material | Metal |
| Attachment / Securing Method | Collar / Nut |
| Mounting Method | Panel |
| AC Voltage rating | 250V |
| AC current rating | 2A |
| Length | 27mm |
| Height | 22mm |
Downloads
- Download Datasheet
