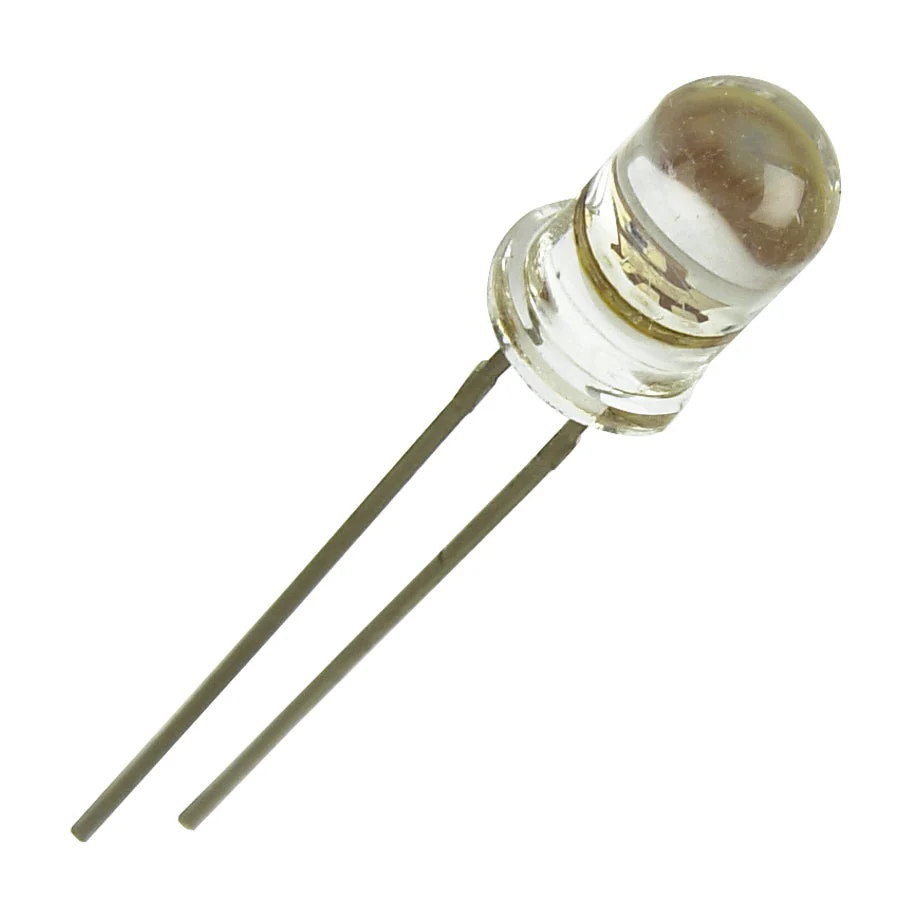

Tricolour RGB LED 5mm
Cycles between colours automatically, 5 seconds per colour before fading into the next colour.
It cycles through the following colours
- Red
- Green
- Blue,
- Yellow(Red+Green)
- Teal(Blue+Green)
- Magneta(Red+Blue)
The Rating for each Colour is:
- Red 625nm 500mcd
- Green 520nm 5000mcd
- Blue 470nm 2000mcd
| Diameter | 5mm |
| LED Type | 5mm Standard LED |
| Illumination Type | Tri Colour |
| Light Colour | Red, Green, and Blue Trio |
| Lens Type | waterclear |
| Viewing Angle | 30° |
| Vf (typ) - Typical Forward Voltage | 4.5V |
| If (typ) - Typical Forward Current | 20mA |
| Resistor for 5VDC | 4.5Ω |
Downloads
- Download Datasheet
