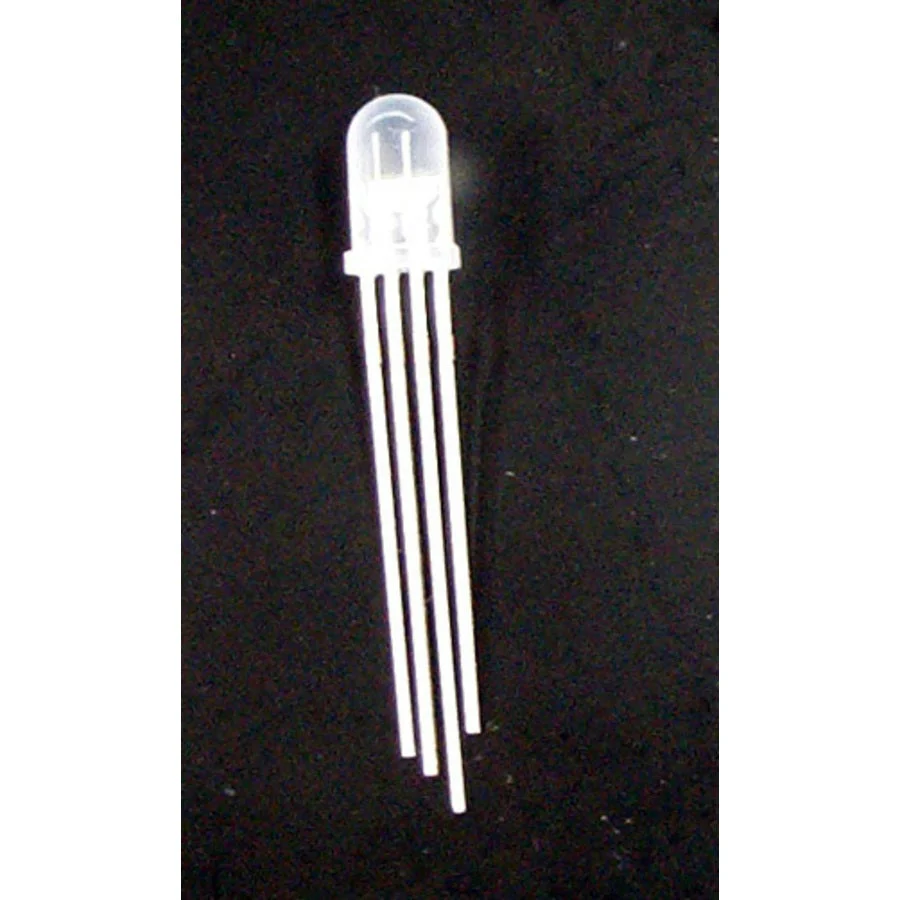

Tricolour RGB 5mm LED 600-1000mcd Round Diffused
Red, Green, Blue tri-colour LED with common cathode to allow simultaneous use of all three elements. Illuminate the elements to different levels and you can acheive almost any colour.
Specifications:
• Colour: Red, Green, and Blue with common cathode
• Size: 5mm
• Lens: Diffused
• Viewing Angle: 45 degrees
• Wavelength: Red 625nm, Green 520nm, Blue 470nm
• Typical Forward Current: 20mA
• Typical Forward Voltage: Red 2.0V, Green/Blue 3.5V
• Luminous Intensity: Red 600mcd, Green 1000mcd, Blue 200mcd
• Continuous Maximum Current: 30mA
| LED Type | 5mm Standard LED |
| Illumination Type | Tri Colour,Common Cathode |
| Light Colour | Red,Green,Blue |
| Light Wavelength | 470nm-625nm |
| Lens Type | Diffused |
| Viewing Angle | 45° |
| Intensity | 200mcd-1000mcd |
| If (typ) - Typical Forward Current | 20mA |
| If (max) - Maximum Forward Current | 30mA |
| Colour Section | Blue |
| Typical Voltage | 3.5V |
| Intensity | 200mcd |
| Wavelength | 470nm |
| Resistor at 5V Supply | 75Ω |
| Resistor at 9V Supply | 270Ω |
| Resistor at 12V Supply | 430Ω |
| Colour Section | Green |
| Wavelength | 520nm |
| Typical Voltage | 3.5V |
| Intensity | 1000mcd |
| Resistor at 5V Supply | 75Ω |
| Resistor at 9V Supply | 270Ω |
| Resistor at 12V Supply | 430Ω |
| Colour Section | Red |
| Wavelength | 625nm |
| Typical Voltage | 2V |
| Intensity | 600mcd |
| Resistor at 5V Supply | 150Ω |
| Resistor at 9V Supply | 360Ω |
| Resistor at 12V Supply | 510Ω |
| active mount type | Through Hole |
| active connector type | Solder Legs |
| component package | radial |
| active number of legs | 4 count |
