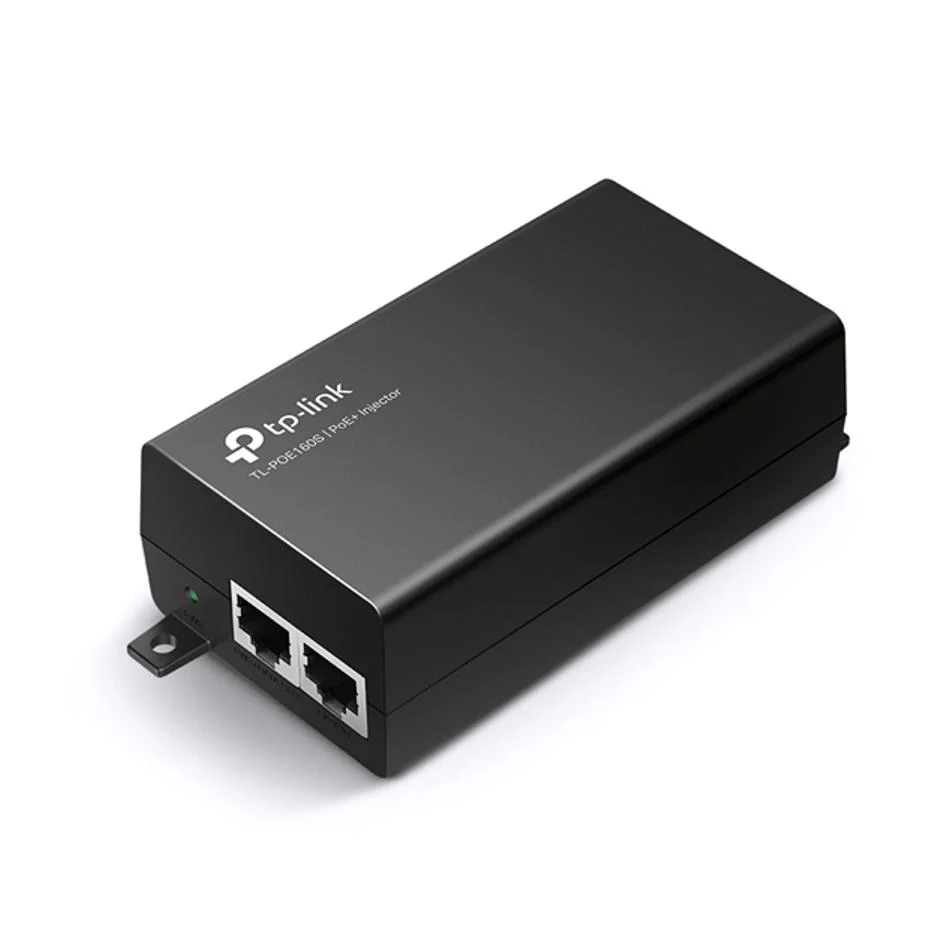

Tp-Link Poe160S Power Over Ethernet Injector TP4907

Product image 1

Tp-Link Poe160S Power Over Ethernet Injector TP4907

  • Summary
  • Features
  • Specs

  • The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

    • 2 Gigabit ports ensure faster transmission
    • Complies with IEEE802.3af/at standards, supplies up to 30 W
    • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
    • Automatically determines and supplies the exact power to meet the device's need
    • Wall-mounting and desktop design accommodates most installation scenarios
    • Plug & Play installation, requires no configuration
    • Integrated power supply
  • Network Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
    Certification FCC, CE, RoHS
    Environment Operating Temperature: 0°C to 40°C (32°F to 104°F)
    Storage Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Humidity: 10% to 90%RH non-condensing
    Storage Humidity: 5% to 90%RH non-condensing
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
    EIA/TIA-568 100Ω STP (maximum 100 m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
    EIA/TIA-568 100Ω STP (maximum 100 m)
    1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
    Ports 1 10/100/1000Mbps RJ45 data-in port
    1 10/100/1000Mbps RJ45 power+data-out port
    1 AC socket
    Power Consumption Input: 100-240 V, 50/60 Hz
    Output: Auto-determine the necessary power requirements (max. 30 W)
    Basic Function Auto-Sensing Algorithm enables providing power with 802.3af/at PD
    Auto-determine the necessary power requirements
    Wall-mounting and desktop installation supported
    Plug-and-Play
    LED Indicator ON: Supplying power normally
    OFF: No power supply
    Dimensions ( W x D x H ) 125*59.4*36.8 mm
    Additional Information For more information on our shipping policy follow this link and for our returns policy click here.
  • Summary
  • Features
  • Specs

  • The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

    • 2 Gigabit ports ensure faster transmission
    • Complies with IEEE802.3af/at standards, supplies up to 30 W
    • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
    • Automatically determines and supplies the exact power to meet the device's need
    • Wall-mounting and desktop design accommodates most installation scenarios
    • Plug & Play installation, requires no configuration
    • Integrated power supply
  • Network Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
    Certification FCC, CE, RoHS
    Environment Operating Temperature: 0°C to 40°C (32°F to 104°F)
    Storage Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Humidity: 10% to 90%RH non-condensing
    Storage Humidity: 5% to 90%RH non-condensing
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
    EIA/TIA-568 100Ω STP (maximum 100 m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
    EIA/TIA-568 100Ω STP (maximum 100 m)
    1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
    Ports 1 10/100/1000Mbps RJ45 data-in port
    1 10/100/1000Mbps RJ45 power+data-out port
    1 AC socket
    Power Consumption Input: 100-240 V, 50/60 Hz
    Output: Auto-determine the necessary power requirements (max. 30 W)
    Basic Function Auto-Sensing Algorithm enables providing power with 802.3af/at PD
    Auto-determine the necessary power requirements
    Wall-mounting and desktop installation supported
    Plug-and-Play
    LED Indicator ON: Supplying power normally
    OFF: No power supply
    Dimensions ( W x D x H ) 125*59.4*36.8 mm
    Additional Information For more information on our shipping policy follow this link and for our returns policy click here.
$11.29

Original: $32.27

-65%
Tp-Link Poe160S Power Over Ethernet Injector TP4907—

$32.27

$11.29

Description

  • Summary
  • Features
  • Specs

  • The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

    • 2 Gigabit ports ensure faster transmission
    • Complies with IEEE802.3af/at standards, supplies up to 30 W
    • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
    • Automatically determines and supplies the exact power to meet the device's need
    • Wall-mounting and desktop design accommodates most installation scenarios
    • Plug & Play installation, requires no configuration
    • Integrated power supply
  • Network Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
    Certification FCC, CE, RoHS
    Environment Operating Temperature: 0°C to 40°C (32°F to 104°F)
    Storage Temperature: -40°C to 70°C (-40°F to 158°F)
    Operating Humidity: 10% to 90%RH non-condensing
    Storage Humidity: 5% to 90%RH non-condensing
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
    EIA/TIA-568 100Ω STP (maximum 100 m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
    EIA/TIA-568 100Ω STP (maximum 100 m)
    1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
    Ports 1 10/100/1000Mbps RJ45 data-in port
    1 10/100/1000Mbps RJ45 power+data-out port
    1 AC socket
    Power Consumption Input: 100-240 V, 50/60 Hz
    Output: Auto-determine the necessary power requirements (max. 30 W)
    Basic Function Auto-Sensing Algorithm enables providing power with 802.3af/at PD
    Auto-determine the necessary power requirements
    Wall-mounting and desktop installation supported
    Plug-and-Play
    LED Indicator ON: Supplying power normally
    OFF: No power supply
    Dimensions ( W x D x H ) 125*59.4*36.8 mm
    Additional Information For more information on our shipping policy follow this link and for our returns policy click here.
