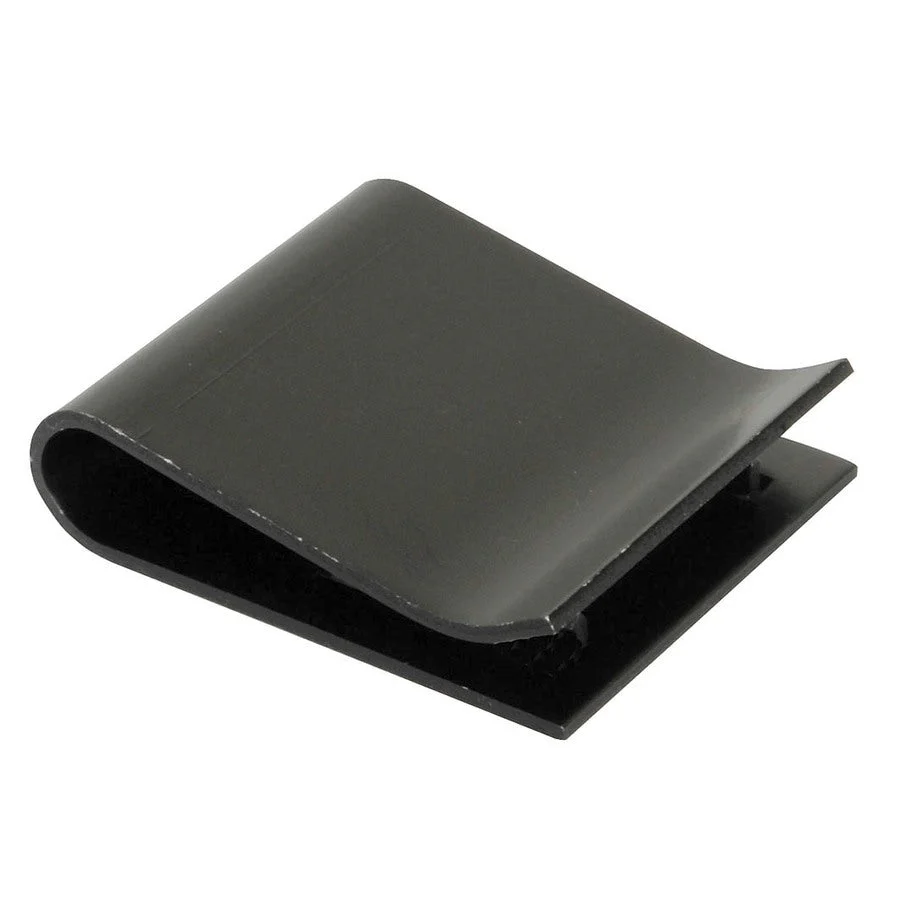

TO-220 Clip-on Heatsink (6043 Type)
The heatsink will just clip over a device when required for permanent or temporary installation.
Specifications:
| Heatsink Layout | Clip-on |
| Sink Area Width | 25.5mm |
| Heatsink Thermal Resistance | 30°C/W |
| Heatsink Mounting Method | Snap-in |
| Specific Application | TO-220 |
| Heatsink Fins | 1pc |
| Component Mount Area Height | 6.8mm |
| Length | 25.5mm |
| Width | 20.3mm |
| Height | 6.8mm |
The heatsink will just clip over a device when required for permanent or temporary installation.
Specifications:
| Heatsink Layout | Clip-on |
| Sink Area Width | 25.5mm |
| Heatsink Thermal Resistance | 30°C/W |
| Heatsink Mounting Method | Snap-in |
| Specific Application | TO-220 |
| Heatsink Fins | 1pc |
| Component Mount Area Height | 6.8mm |
| Length | 25.5mm |
| Width | 20.3mm |
| Height | 6.8mm |
$0.98
TO-220 Clip-on Heatsink (6043 Type)—
$0.98
Description
The heatsink will just clip over a device when required for permanent or temporary installation.
Specifications:
| Heatsink Layout | Clip-on |
| Sink Area Width | 25.5mm |
| Heatsink Thermal Resistance | 30°C/W |
| Heatsink Mounting Method | Snap-in |
| Specific Application | TO-220 |
| Heatsink Fins | 1pc |
| Component Mount Area Height | 6.8mm |
| Length | 25.5mm |
| Width | 20.3mm |
| Height | 6.8mm |
