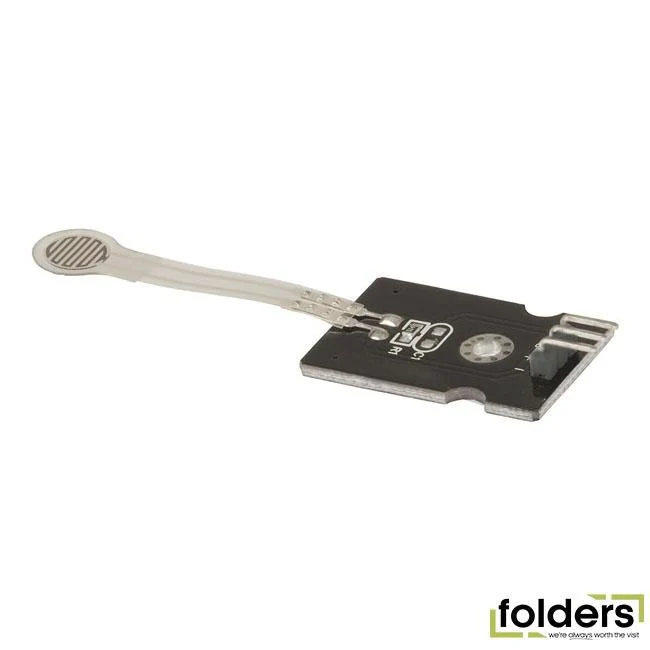

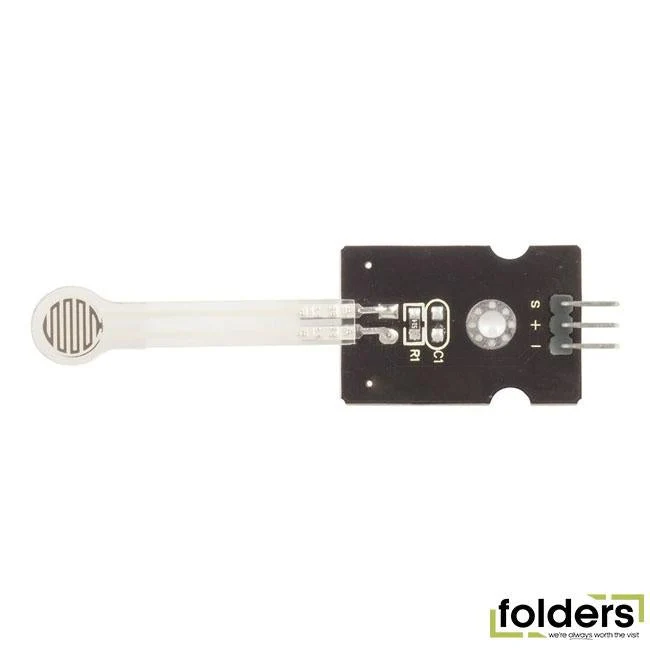

A highly sensitive waterproof sensor to detect pressure. The 5mm round thin sensor is mounted at the end of a 40mm long flexible lead that connects to the main board. Pressure up to 10kg on the sensor sends the change in resistance to your favourite microcontroller. Powered from either 3.3V or 5V.



Features:

- Flexible nano sensor

- Waterproof

- Pressure sensitive



Specifications:

Range: 0-10kg*

Thickness: <0.25mm

Response Point: <20g

Repeatability: <5.8% (50? Load)

Accuracy: 2.5% (85% range interval)

Durability: >100,000 Times

Response Time: <1ms

Recovery Time: <15ms



* Capable of measuring gross weight up to 10kg, but most accurate results are obtained up to 0.5kg.
