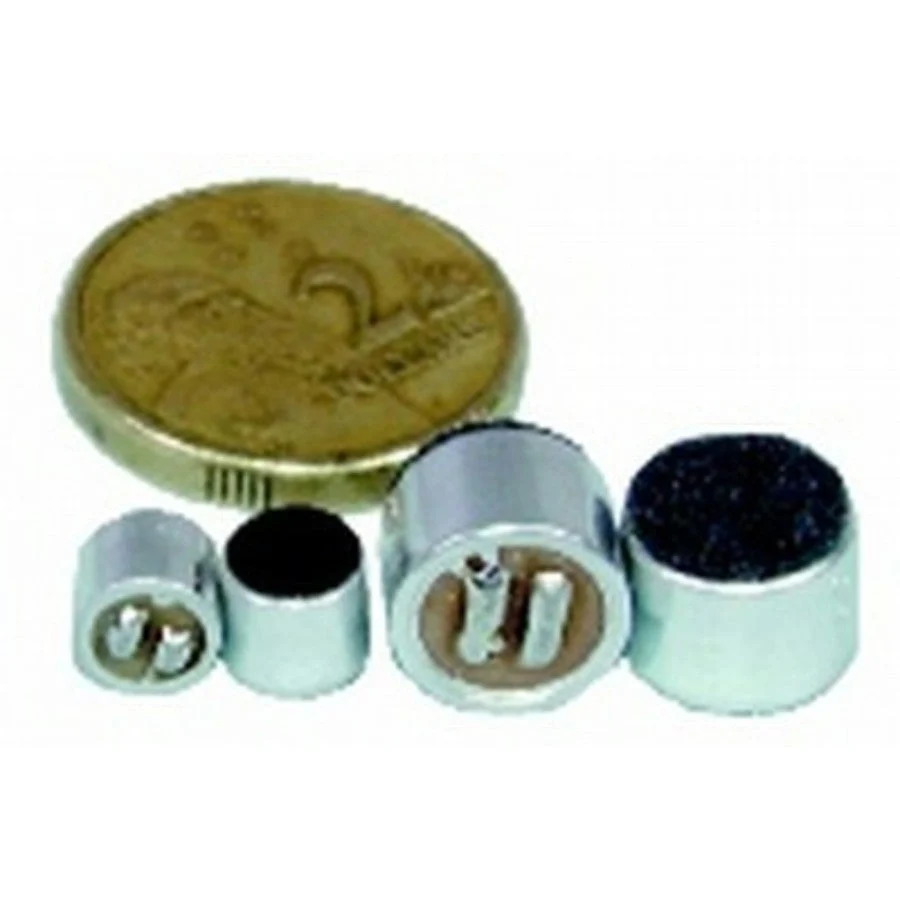

Standard Microphone Insert
Replacement electret mic inserts for tape recorders and other low-cost microphones. Once power is supplied they work beautifully. For example, you can solder them to a PCB for a mic input. Used by OEM’s. Omnidirectional.
Features:
• Power: 1.5V – 10VDC
• Current consumption: <0.5mA
• S/N ratio: >56dB
• Solder tabs
Specifications:
| Diameter | 9.7mm |
| Height | 6.7mm |
| Type | Electret Insert |
| Insert/Pickup Type | Electret |
| Frequency Response | 50Hz-16kHz |
| Sensitivity | 68dB |
| Sensitivity Tolerance | 3% |
| Impedence | 2.2kΩ |
| Windsock Included | No |
Replacement electret mic inserts for tape recorders and other low-cost microphones. Once power is supplied they work beautifully. For example, you can solder them to a PCB for a mic input. Used by OEM’s. Omnidirectional.
Features:
• Power: 1.5V – 10VDC
• Current consumption: <0.5mA
• S/N ratio: >56dB
• Solder tabs
Specifications:
| Diameter | 9.7mm |
| Height | 6.7mm |
| Type | Electret Insert |
| Insert/Pickup Type | Electret |
| Frequency Response | 50Hz-16kHz |
| Sensitivity | 68dB |
| Sensitivity Tolerance | 3% |
| Impedence | 2.2kΩ |
| Windsock Included | No |
$2.02
Standard Microphone Insert—
$2.02
Description
Replacement electret mic inserts for tape recorders and other low-cost microphones. Once power is supplied they work beautifully. For example, you can solder them to a PCB for a mic input. Used by OEM’s. Omnidirectional.
Features:
• Power: 1.5V – 10VDC
• Current consumption: <0.5mA
• S/N ratio: >56dB
• Solder tabs
Specifications:
| Diameter | 9.7mm |
| Height | 6.7mm |
| Type | Electret Insert |
| Insert/Pickup Type | Electret |
| Frequency Response | 50Hz-16kHz |
| Sensitivity | 68dB |
| Sensitivity Tolerance | 3% |
| Impedence | 2.2kΩ |
| Windsock Included | No |
