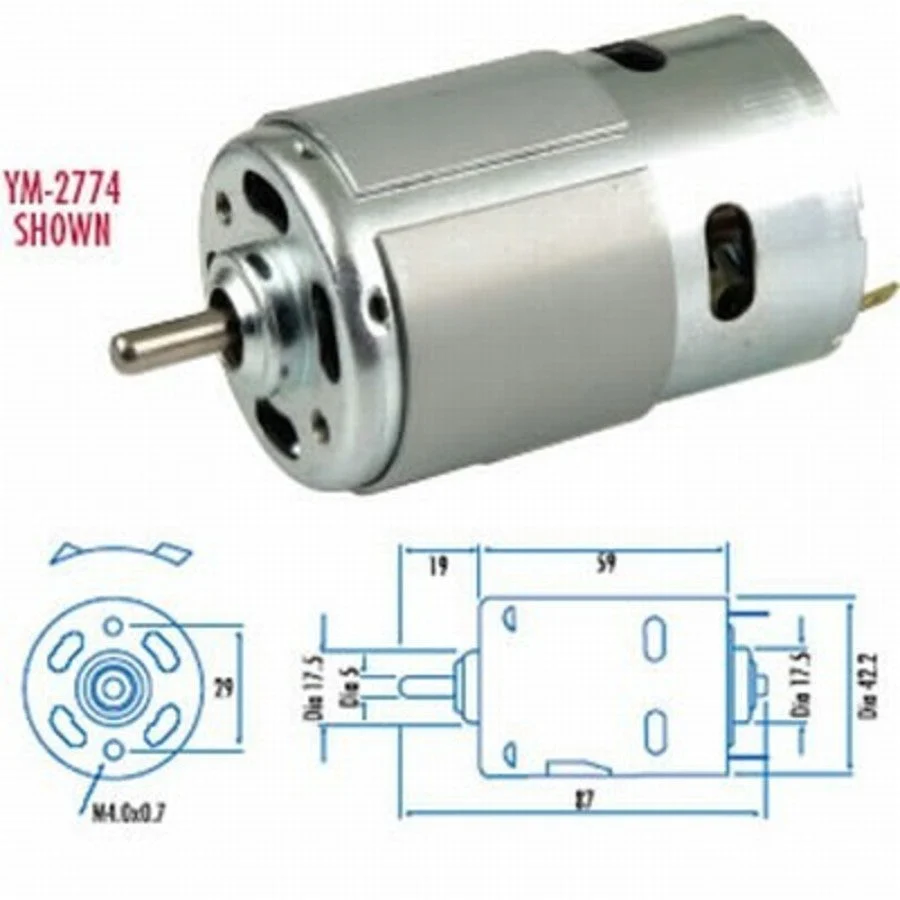

Standard (High Power) D.C. Motors 18800 RPM
Standard (High Power) D.C. Motors
Astonishing speed and power from these compact ferrite magnet types.
All units feature hard steel drive shafts, long life design and are built in an ISO 9002 quality environment.
At Stall
Torque: 4.8kg.cm
Current: 80.7A
Astonishing speed and power from these compact ferrite magnet types.
All units feature hard steel drive shafts, long life design and are built in an ISO 9002 quality environment.
At Stall
Torque: 4.8kg.cm
Current: 80.7A
Specifications:
| Motor Type | High Power |
| Motor Nominal Voltage | 12V |
| No load current | 2.6A |
| Full load current | 92A |
| Full load torque | 4900g.cm |
| No load RPM | 18800RPM |
| Max efficiency RPM | 16000RPM |
| Max efficiency | 71% |
| Max. efficiency current | 10.5A |
| Max efficiency power | 126W |
| Maximum efficiency torque | 778g.cm |
| Shaft diameter | 5mm |
| Shaft length | 19mm |
| DC Voltage | 6V |
| Length | 78mm |
| Diameter | 42mm |
Downloads
- Download Datasheet
Standard (High Power) D.C. Motors
Astonishing speed and power from these compact ferrite magnet types.
All units feature hard steel drive shafts, long life design and are built in an ISO 9002 quality environment.
At Stall
Torque: 4.8kg.cm
Current: 80.7A
Astonishing speed and power from these compact ferrite magnet types.
All units feature hard steel drive shafts, long life design and are built in an ISO 9002 quality environment.
At Stall
Torque: 4.8kg.cm
Current: 80.7A
Specifications:
| Motor Type | High Power |
| Motor Nominal Voltage | 12V |
| No load current | 2.6A |
| Full load current | 92A |
| Full load torque | 4900g.cm |
| No load RPM | 18800RPM |
| Max efficiency RPM | 16000RPM |
| Max efficiency | 71% |
| Max. efficiency current | 10.5A |
| Max efficiency power | 126W |
| Maximum efficiency torque | 778g.cm |
| Shaft diameter | 5mm |
| Shaft length | 19mm |
| DC Voltage | 6V |
| Length | 78mm |
| Diameter | 42mm |
Downloads
- Download Datasheet
