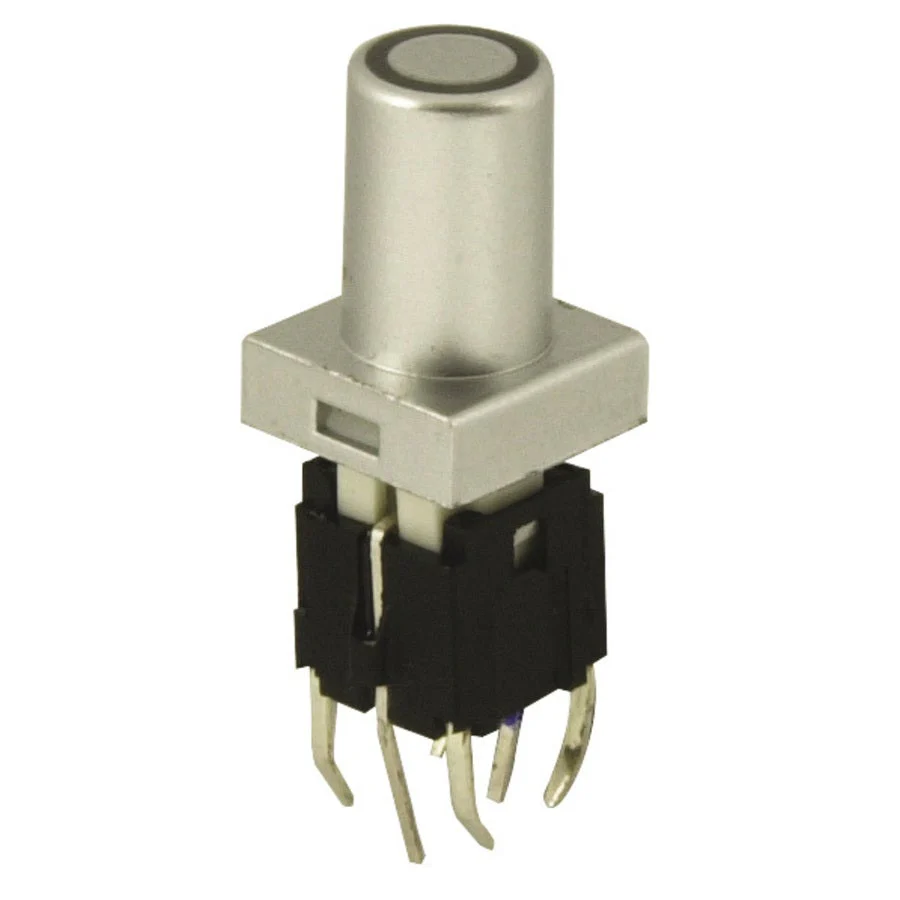

SPST PCB Mount Vertical & Horizontal with Red LED
LED SPST PCB tactile switch
LED Power Supply: 3.5-4V DC @ 25mA
Orientation Colour Cat #
Vertical Red SP-0612
Vertical Green SP-0613
Vertical Blue SP-0614
Horizontal Red SP-0615
Horizontal Green SP-0616
Horizontal Blue SP-0617
LED Power Supply: 3.5-4V DC @ 25mA
Orientation Colour Cat #
Vertical Red SP-0612
Vertical Green SP-0613
Vertical Blue SP-0614
Horizontal Red SP-0615
Horizontal Green SP-0616
Horizontal Blue SP-0617
Specifications:
| Switch Type | Tactile Pushbutton |
| Pole Throw Type | SPST |
| Switch Function | Single Action Momentary |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Contact Resistance | 100mΩ |
| Insulation Resistance | 100MΩ |
| Switch Connection | PCB Pins |
| Dielectric Strength | 100V |
| Switch Colour Coded | Red |
| Mechanism Material | Plastic |
| Mounting Method | PCB |
| Pin Spacing Width | 5mm |
| Pin Spacing Depth | 2.5mm |
| DC Voltage | 12V |
| DC current rating | 50mA |
| Length | 7.5mm |
| Width | 7.5mm |
| Height | 17.3mm |
Downloads
- Download Datasheet
LED SPST PCB tactile switch
LED Power Supply: 3.5-4V DC @ 25mA
Orientation Colour Cat #
Vertical Red SP-0612
Vertical Green SP-0613
Vertical Blue SP-0614
Horizontal Red SP-0615
Horizontal Green SP-0616
Horizontal Blue SP-0617
LED Power Supply: 3.5-4V DC @ 25mA
Orientation Colour Cat #
Vertical Red SP-0612
Vertical Green SP-0613
Vertical Blue SP-0614
Horizontal Red SP-0615
Horizontal Green SP-0616
Horizontal Blue SP-0617
Specifications:
| Switch Type | Tactile Pushbutton |
| Pole Throw Type | SPST |
| Switch Function | Single Action Momentary |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Contact Resistance | 100mΩ |
| Insulation Resistance | 100MΩ |
| Switch Connection | PCB Pins |
| Dielectric Strength | 100V |
| Switch Colour Coded | Red |
| Mechanism Material | Plastic |
| Mounting Method | PCB |
| Pin Spacing Width | 5mm |
| Pin Spacing Depth | 2.5mm |
| DC Voltage | 12V |
| DC current rating | 50mA |
| Length | 7.5mm |
| Width | 7.5mm |
| Height | 17.3mm |
Downloads
- Download Datasheet
$0.95
Original: $2.71
-65%SPST PCB Mount Vertical & Horizontal with Red LED—
$2.71
$0.95Description
