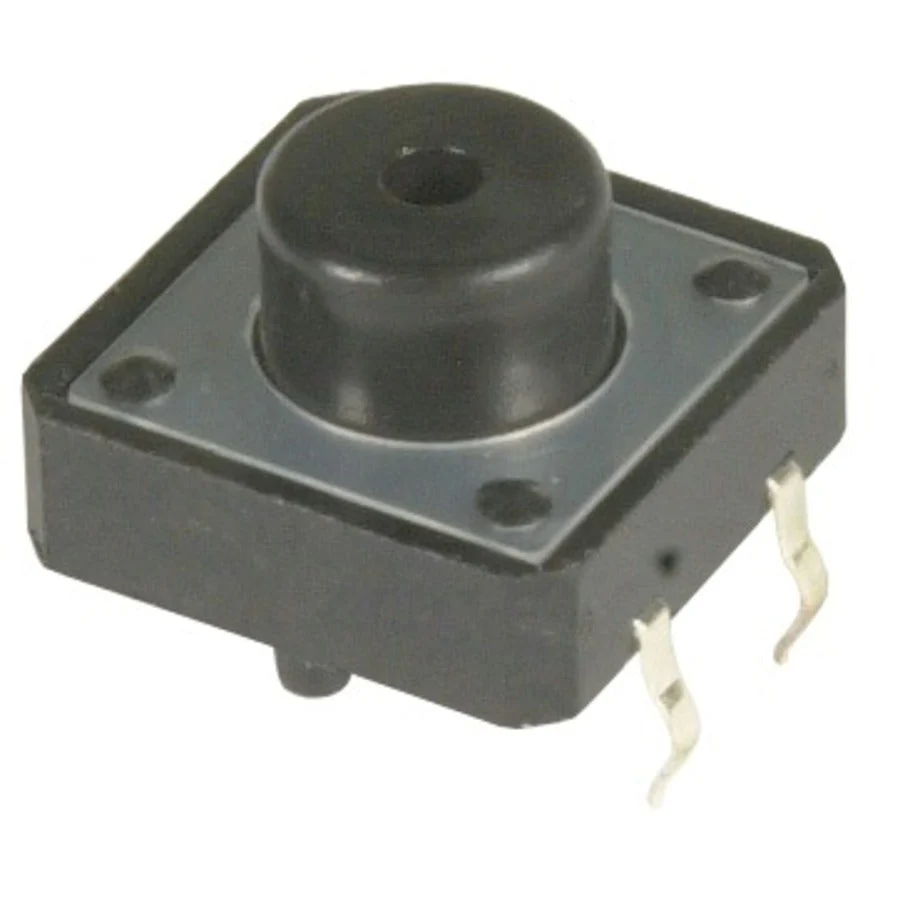

SPST PCB Mount Tactile Switch Round
Normally open SPST round micro tactile switch.
Specifications:
| Switch Type | Tactile Pushbutton |
| Pole Throw Type | SPST |
| Switch Function | Single Action Momentary |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Contact Resistance | 100Ω |
| Insulation Resistance | 100MΩ |
| Switch Connection | PCB Pins |
| Dielectric Strength | 100V |
| Switch Colour Coded | Black |
| Mechanism Material | Plastic |
| Actuator Height | 3.3mm |
| Actuator Diameter | 6.5mm |
| Mounting Method | PCB |
| Pin Spacing Width | 11.9mm |
| Pin Spacing Depth | 4.1mm |
| DC Voltage | 12V |
| DC current rating | 50A |
| Length | 11.9mm |
| Width | 11.9mm |
| Height | 7.3mm |
Downloads
- Download Datasheet
Normally open SPST round micro tactile switch.
Specifications:
| Switch Type | Tactile Pushbutton |
| Pole Throw Type | SPST |
| Switch Function | Single Action Momentary |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Contact Resistance | 100Ω |
| Insulation Resistance | 100MΩ |
| Switch Connection | PCB Pins |
| Dielectric Strength | 100V |
| Switch Colour Coded | Black |
| Mechanism Material | Plastic |
| Actuator Height | 3.3mm |
| Actuator Diameter | 6.5mm |
| Mounting Method | PCB |
| Pin Spacing Width | 11.9mm |
| Pin Spacing Depth | 4.1mm |
| DC Voltage | 12V |
| DC current rating | 50A |
| Length | 11.9mm |
| Width | 11.9mm |
| Height | 7.3mm |
Downloads
- Download Datasheet
$0.30
Original: $0.86
-65%SPST PCB Mount Tactile Switch Round—
$0.86
$0.30Description
