Solid State Relay - 5VDC Control AC Load

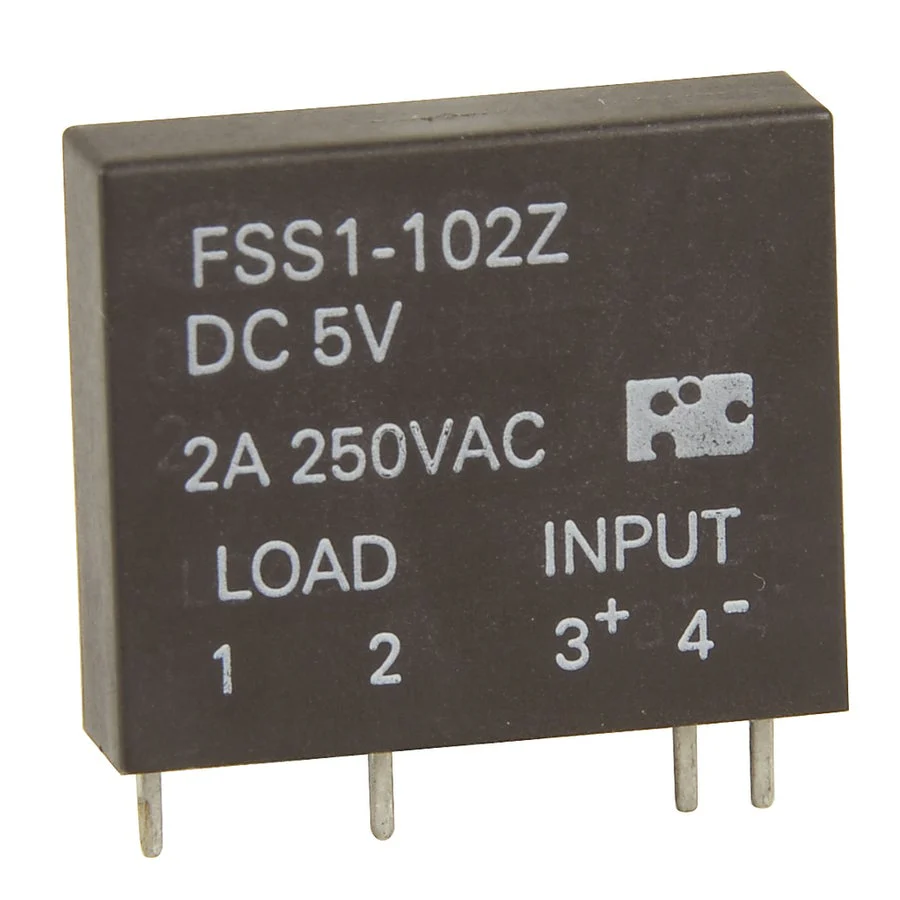

Product image 1
1 / 2

Solid State Relay - 5VDC Control AC Load

Ultra slim solid state relay for switching AC loads up to 250V using a DC control voltage.

• Control Voltage: 4-6VDC
• Maximum Control Current: 15mA
• Load Voltage: 50-250VAC
• Maximum Load Current: 2A

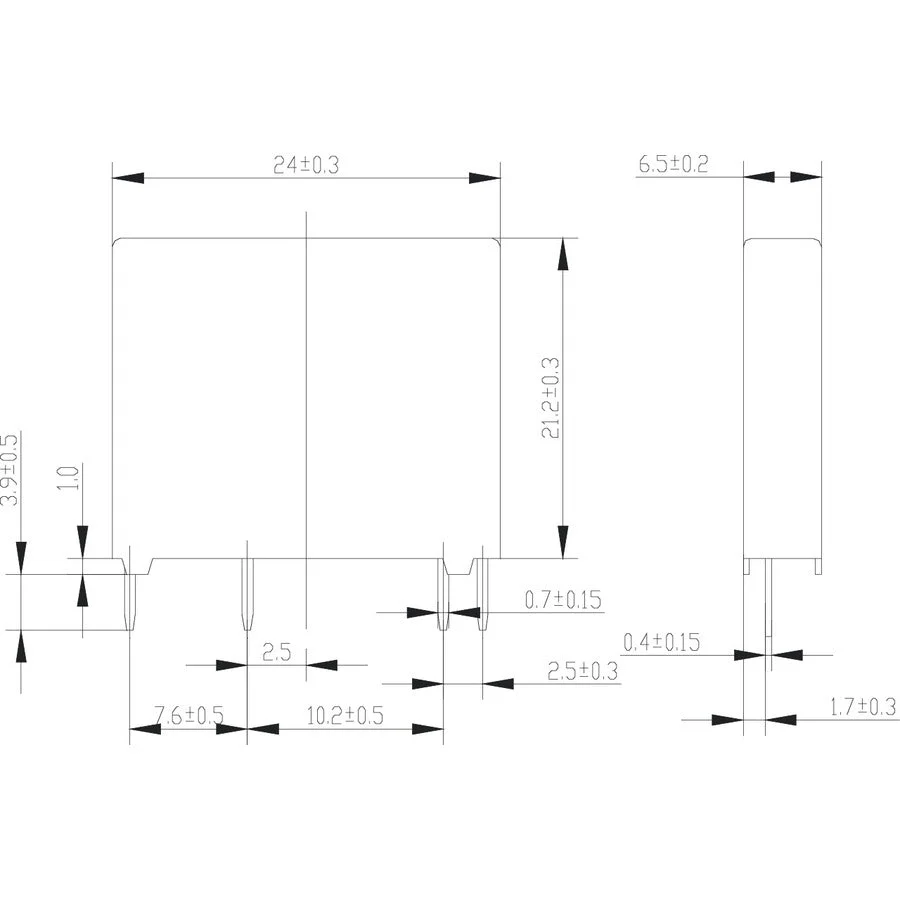

• Dimensions: 24(L)x21(H)x6.5(D)mm

Specifications:
DC Contact Voltage 6V
Pickup Voltage 4V
Dropout Voltage 1V
Device Type Solid State Relay
Input DC
AC Switching Current (Closing) 0A
Contact format SPST
AC Contact Voltage 50V-250V
Nominal Voltage 5V
DC Voltage 4V-6V
DC Current Draw 15mA
Mounting Method PCB
Length 24mm

Downloads

  • Download Datasheet
Ultra slim solid state relay for switching AC loads up to 250V using a DC control voltage.

• Control Voltage: 4-6VDC
• Maximum Control Current: 15mA
• Load Voltage: 50-250VAC
• Maximum Load Current: 2A
• Dimensions: 24(L)x21(H)x6.5(D)mm

Specifications:
DC Contact Voltage 6V
Pickup Voltage 4V
Dropout Voltage 1V
Device Type Solid State Relay
Input DC
AC Switching Current (Closing) 0A
Contact format SPST
AC Contact Voltage 50V-250V
Nominal Voltage 5V
DC Voltage 4V-6V
DC Current Draw 15mA
Mounting Method PCB
Length 24mm

Downloads

  • Download Datasheet
$6.86
Solid State Relay - 5VDC Control AC Load—
$6.86
