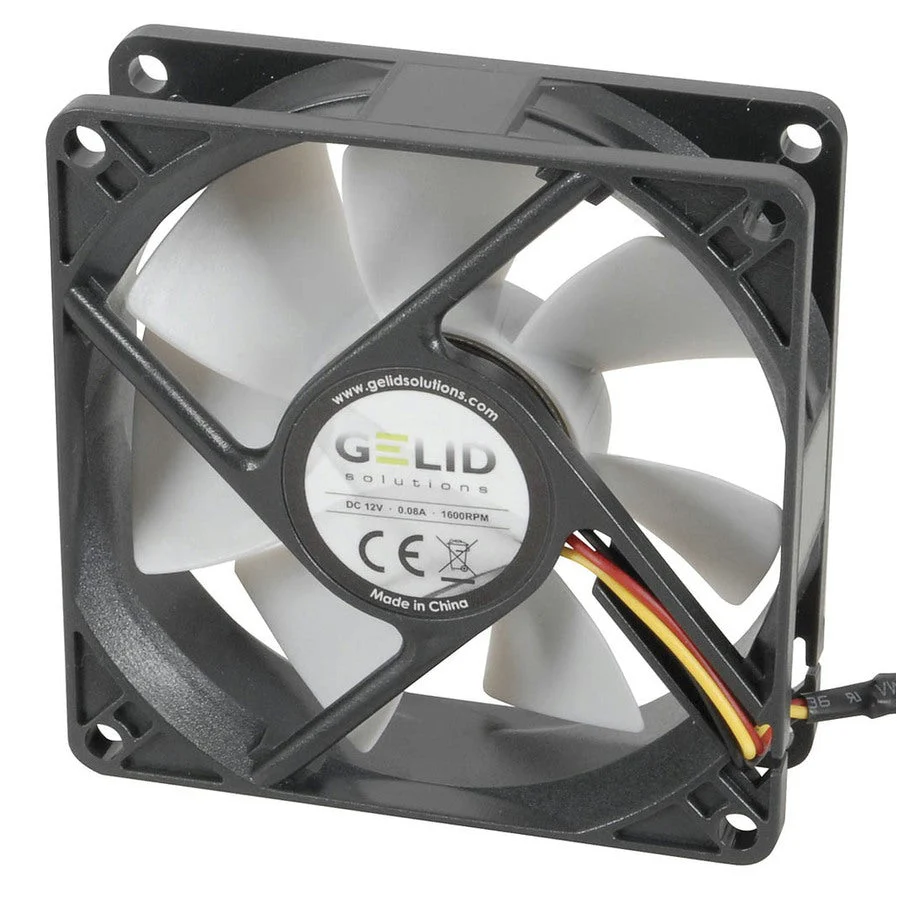

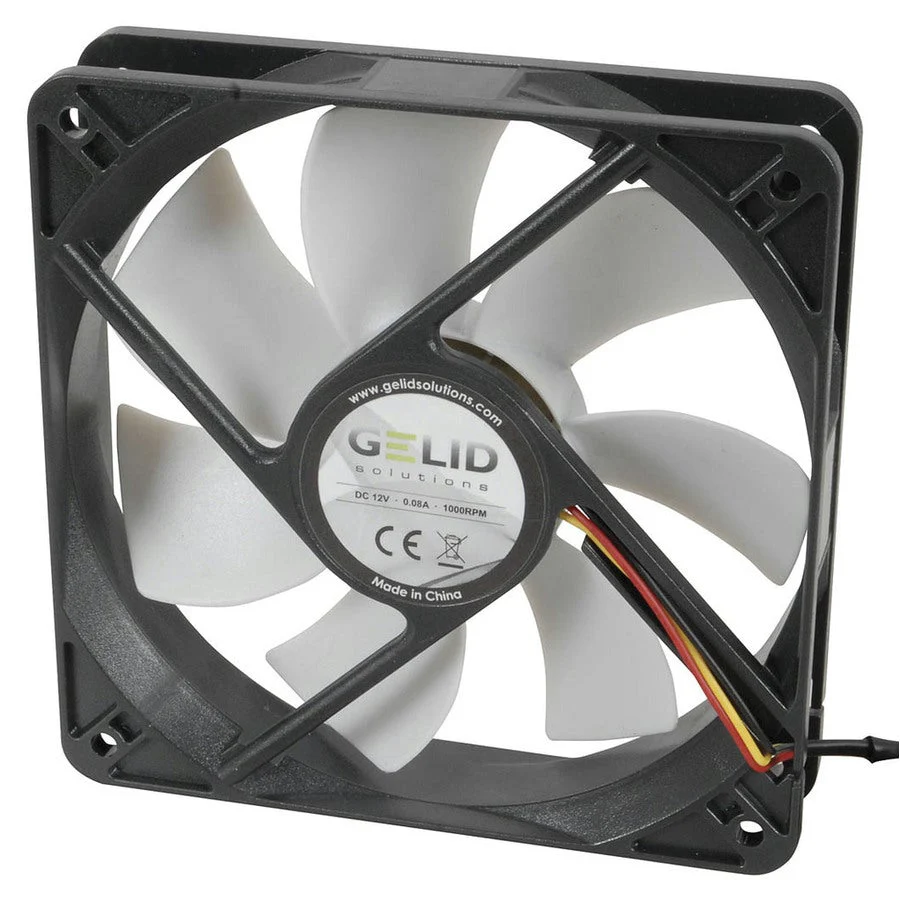

Silent Hydrodynamic Bearing Case Fan
Features:
Designed to provide additional airflow without increasing noise levels these fans have precisely balanced blades and long-life hydro-dynamic bearin. Ultra-low noise making these fans are perfect for a home theatre PC, or ventilating the amplifier wedged into your entertainment unit. To further improve silence, rubber fan mounts are included to eliminate fan motor vibrations inducing vibration noise. Rated to last for 50,000hrs at 40°C (even longer at 25°C).
Bearings Ball (Hydrodynamic)
Connections 3 Pin Molex
| fan RPM | 1600RPM, 1500RPM, 1000RPM |
| fan air colume cubic feet | 20.7ft³/min, 31.3ft³/min, 37ft³/min |
| fan noise | 18dB, 20dB, 20.2dB |
| type of fan | Axial |
| fan air volume cubic metres | 0.59m³/min, 0.89m³/min, 1.05 m³/min |
| fan bearing type | Hydrodynamic |
| fan housing material | Polycarbonate |
| fan impeller material | Polycarbonate |
| Fan Operational Life at 25°C | 100000hr |
| fan number of wires | 3pc |
| fan connector type | Flyleads |
| Tachometer Output | Yes |
| DC Plugpack Voltage | 12V |
| DC Current Draw | 80mA, 130mA, 80mA |
| Length | 80mm, 92mm, 120mm |
| Width | 80mm , 92mm, 120mm |
| Depth | 25mm |
Features:
Designed to provide additional airflow without increasing noise levels these fans have precisely balanced blades and long-life hydro-dynamic bearin. Ultra-low noise making these fans are perfect for a home theatre PC, or ventilating the amplifier wedged into your entertainment unit. To further improve silence, rubber fan mounts are included to eliminate fan motor vibrations inducing vibration noise. Rated to last for 50,000hrs at 40°C (even longer at 25°C).
Bearings Ball (Hydrodynamic)
Connections 3 Pin Molex
| fan RPM | 1600RPM, 1500RPM, 1000RPM |
| fan air colume cubic feet | 20.7ft³/min, 31.3ft³/min, 37ft³/min |
| fan noise | 18dB, 20dB, 20.2dB |
| type of fan | Axial |
| fan air volume cubic metres | 0.59m³/min, 0.89m³/min, 1.05 m³/min |
| fan bearing type | Hydrodynamic |
| fan housing material | Polycarbonate |
| fan impeller material | Polycarbonate |
| Fan Operational Life at 25°C | 100000hr |
| fan number of wires | 3pc |
| fan connector type | Flyleads |
| Tachometer Output | Yes |
| DC Plugpack Voltage | 12V |
| DC Current Draw | 80mA, 130mA, 80mA |
| Length | 80mm, 92mm, 120mm |
| Width | 80mm , 92mm, 120mm |
| Depth | 25mm |
