Short Circuits Two Project - Red/Green LED Flasher
Assembly Required

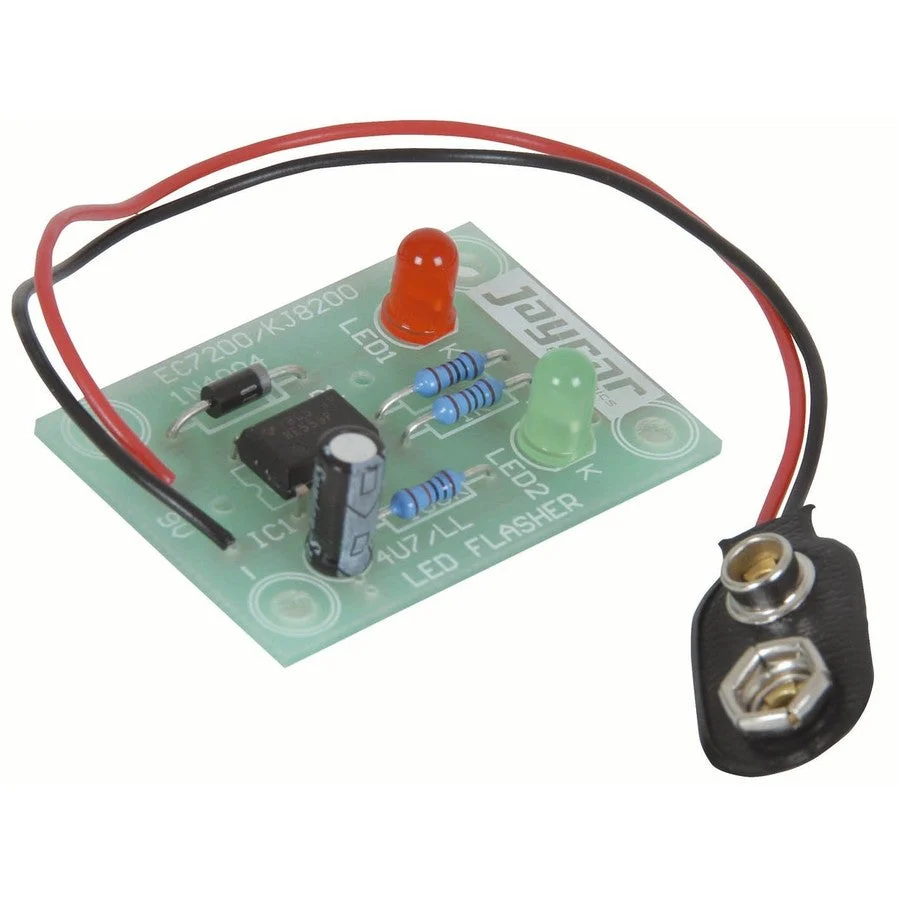

It flashes two LEDs (light emitting diodes) one red and the other green alternately, a it like the light on a police car. A great way to learn how a 555 Timer IC works.
•PCB & all parts supplied
•Requires 9V battery
Instructions sold separately or withing the Short Circuits book range,
Short Circuits Books are available for Download Here
For More Information on Kids science/electronics projects Click Here for Kits for Kids
| Kit Form | Short Form (circuit only) |
| Kit Group | Short Circuit Series |
| Difficulty | Simple |
| Application Field | Flasher |
| Contains High Voltage Components | No |
| Instructions Included | No |
| PCB Width | 30mm |
| PCB Length | 43mm |
| Additional required items | 9V battery |
| Project Number(s) | 1 |
| Volume Number | Volume 2 |
