Short Circuits Two Project - Electronic Organ
Assembly Required

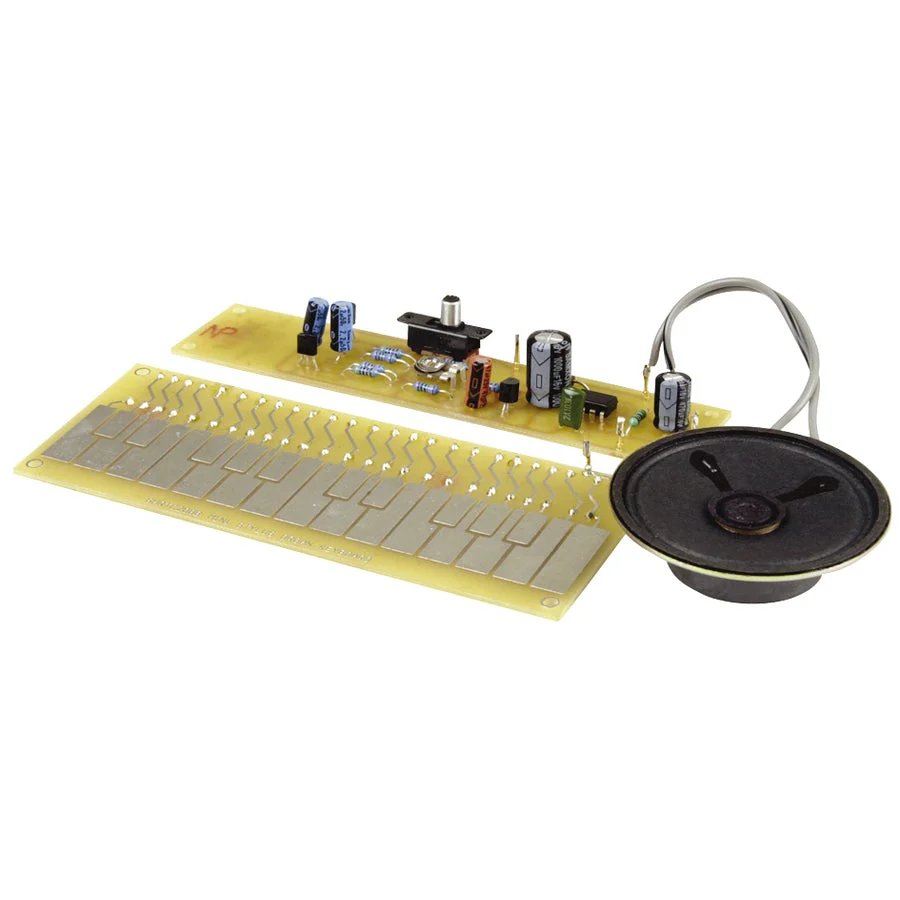

You can play simple tunes easily once you have built this project! The organ ‘keyboard' is actually part of the printed circuit board. It even has vibrato for extra realism.
•Includes PCB and all board components.
•Requires 9V battery.
Instructions sold separately or withing the Short Circuits book range,
Short Circuits Books are available for Download Here
For More Information on Kids science/electronics projects Click Here for Kits for Kids
| Kit Form | Short Form (circuit only) |
| Kit Group | Short Circuit Series |
| Difficulty | Simple |
| Application Field | Electronic Organ |
| Contains High Voltage Components | No |
| Instructions Included | No |
| PCB Width | 51mm |
| PCB Length | 133mm |
| Additional required items | 9V Battery |
| Project Number(s) | 8 |
| Volume Number | Volume 2 |
