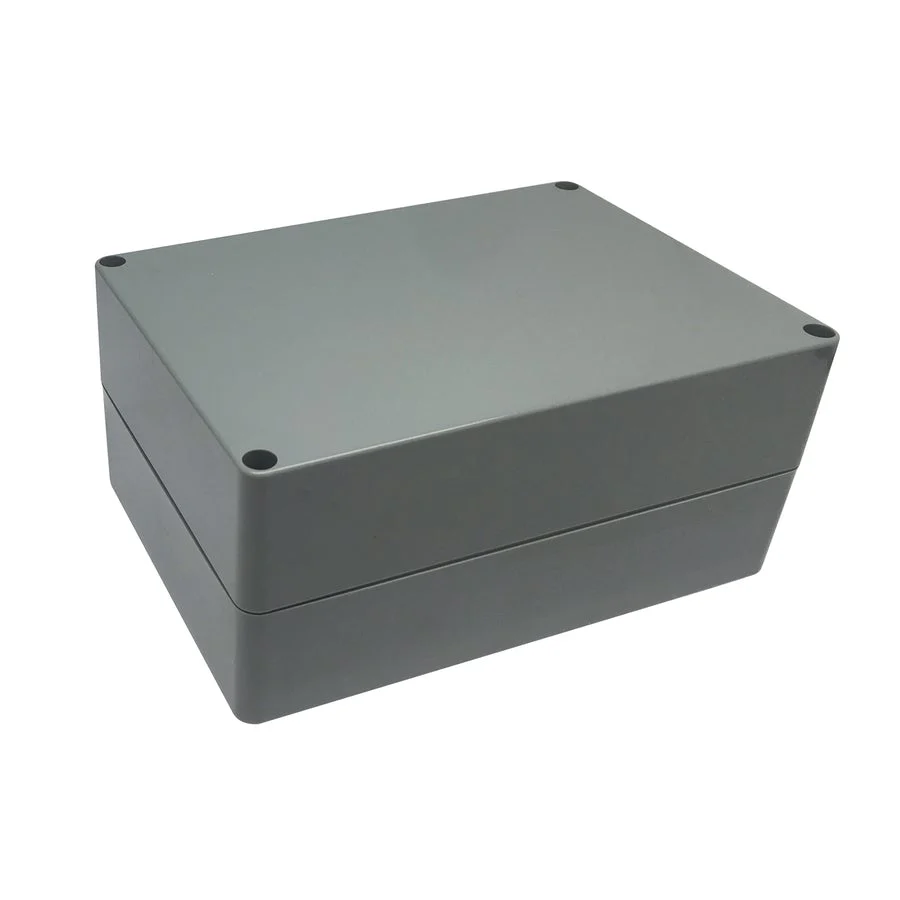

Sealed ABS Enclosure - 171 x 121 x 80mm
Features:
- Operating temperature: -20 to 100 degrees

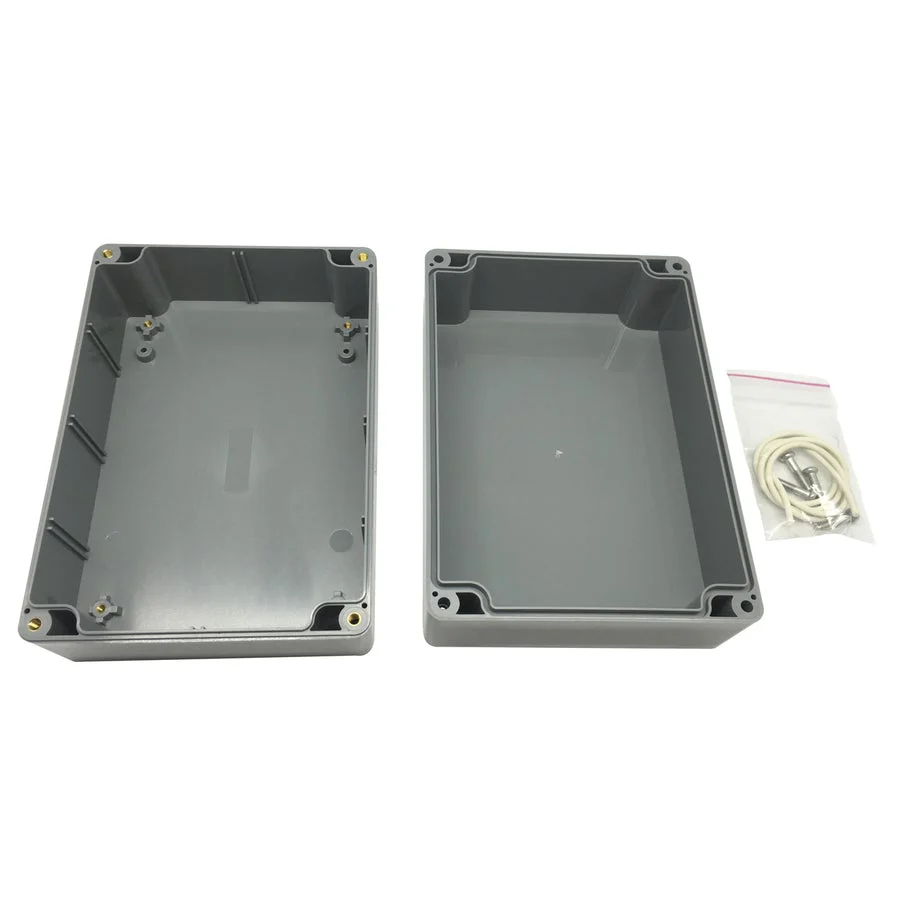

- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
- The lid and base incorporate a tongue and groove sealing systemwith a EPDM gasket
- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
| Width | 171mm |
| Height | 80mm |
| Depth | 121mm |
| Material | ABS Plastic (Acrylonitrile Butadiene Styrene) |
| Ventilation Holes | No |
| PCB Internal Guide Slots | Yes |
| Gasket sealing system | Yes |
| Lid Screws | 4pc |
| Internal Mounting Posts | Yes |
| Colour | Dark Grey |
| IP Rating | IP65 |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 5 - Water jets |
Features:
- Operating temperature: -20 to 100 degrees
- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
- The lid and base incorporate a tongue and groove sealing systemwith a EPDM gasket
- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
| Width | 171mm |
| Height | 80mm |
| Depth | 121mm |
| Material | ABS Plastic (Acrylonitrile Butadiene Styrene) |
| Ventilation Holes | No |
| PCB Internal Guide Slots | Yes |
| Gasket sealing system | Yes |
| Lid Screws | 4pc |
| Internal Mounting Posts | Yes |
| Colour | Dark Grey |
| IP Rating | IP65 |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 5 - Water jets |
Original: $17.24
-65%$17.24
$6.03Description
Features:
- Operating temperature: -20 to 100 degrees
- Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
- The lid and base incorporate a tongue and groove sealing systemwith a EPDM gasket
- Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
- Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
| Width | 171mm |
| Height | 80mm |
| Depth | 121mm |
| Material | ABS Plastic (Acrylonitrile Butadiene Styrene) |
| Ventilation Holes | No |
| PCB Internal Guide Slots | Yes |
| Gasket sealing system | Yes |
| Lid Screws | 4pc |
| Internal Mounting Posts | Yes |
| Colour | Dark Grey |
| IP Rating | IP65 |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 5 - Water jets |
