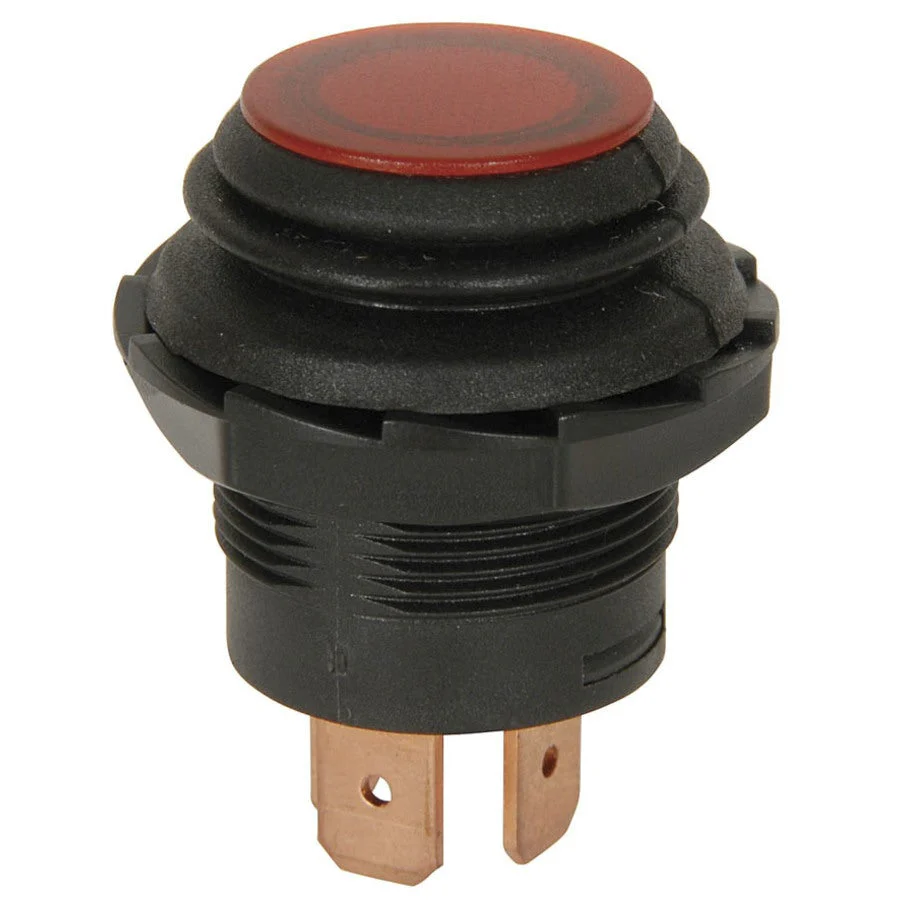

Red Momentary IP65 Pushbutton Switch
• SPST
• IP65 rated
• Momentary action, illuminated red
• IP65 rated
• Momentary action, illuminated red
Specifications:
| Switch Type | Pushbutton |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Pole Throw Type | SPST |
| Contact Resistance | 50Ω |
| Switch Function | Single Action Momentary |
| Insulation Resistance | 100MΩ |
| Switch Connection | Spade Terminals |
| Dielectric Strength | 1500V |
| Switch Colour Coded | Red |
| Mechanism Material | Plastic |
| Mounting Method | Panel |
| Attachment / Securing Method | Collar / Nut |
| Max Mount Panel Thickness | 6mm |
| Round Mount Hole Diameter | 22mm |
| DC Voltage | 14V |
| DC current rating | 10A |
| IP Rating | 65 |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 5 - Water jets |
| IP Rating certificate | Yes |
| Height | 38mm |
| Diameter | 31mm |
| Nominal Voltage | 12V |
| Type | 5mm Standard LED |
| Illumination Colour | Red |
| Connection | Spade Terminals |
| Illumination Position | Top |
Downloads
- Download Datasheet
