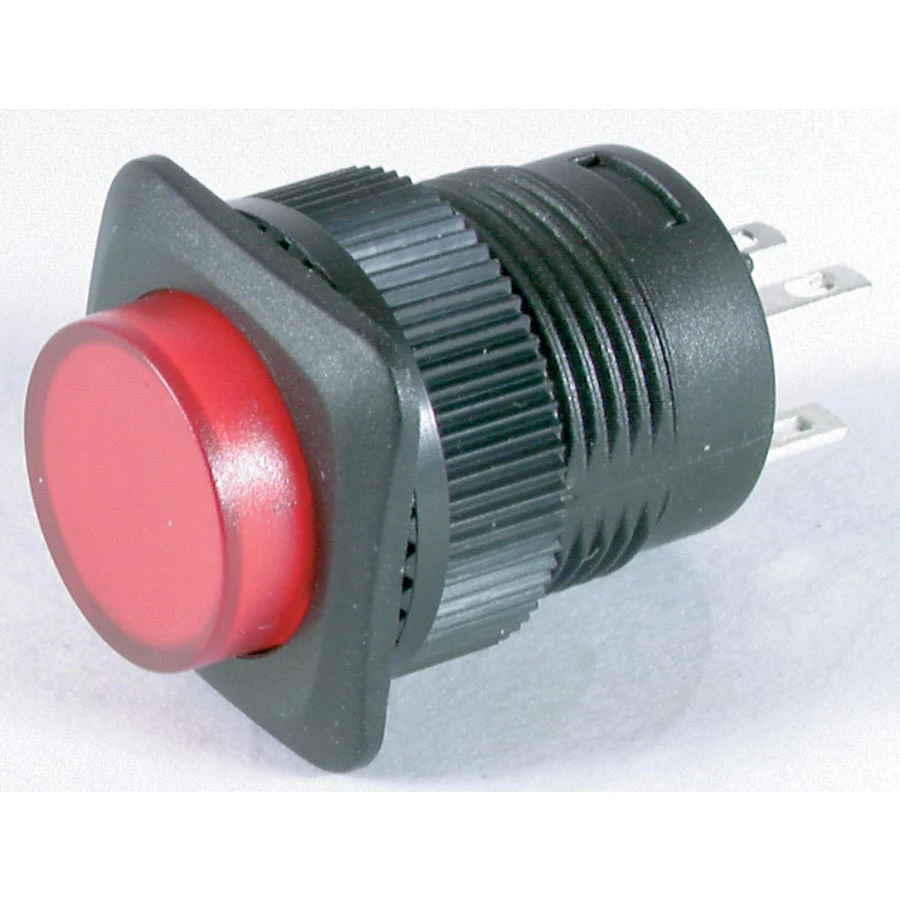

Red LED Illuminated switch
These short bodied pushbuttons are available 2 ways. Both have red LEDs behind a red diffused actuator. LED needs 2V. Red illuminated actuator.
Specifications:
| Switch Type | Pushbutton |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Pole Throw Type | SPST |
| Contact Resistance | 50Ω |
| Switch Function | Single Action Momentary |
| Insulation Resistance | 100Ω |
| Switch Connection | Solder Legs |
| Dielectric Strength | 1500V |
| Switch Colour Coded | Red |
| Mounting Method | Panel |
| AC Voltage rating | 250V |
| AC current rating | 1.5A |
| Length | 18mm |
| Width | 18mm |
| Height | 60mm |
| Diameter | 18mm |
| Nominal Voltage | 2V |
| Type | 5mm Standard LED |
| Illumination Colour | Red |
| Connection | Solder Legs |
Downloads
- Download Datasheet
These short bodied pushbuttons are available 2 ways. Both have red LEDs behind a red diffused actuator. LED needs 2V. Red illuminated actuator.
Specifications:
| Switch Type | Pushbutton |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Pole Throw Type | SPST |
| Contact Resistance | 50Ω |
| Switch Function | Single Action Momentary |
| Insulation Resistance | 100Ω |
| Switch Connection | Solder Legs |
| Dielectric Strength | 1500V |
| Switch Colour Coded | Red |
| Mounting Method | Panel |
| AC Voltage rating | 250V |
| AC current rating | 1.5A |
| Length | 18mm |
| Width | 18mm |
| Height | 60mm |
| Diameter | 18mm |
| Nominal Voltage | 2V |
| Type | 5mm Standard LED |
| Illumination Colour | Red |
| Connection | Solder Legs |
Downloads
- Download Datasheet
$1.66
Original: $4.73
-65%Red LED Illuminated switch—
$4.73
$1.66Description
These short bodied pushbuttons are available 2 ways. Both have red LEDs behind a red diffused actuator. LED needs 2V. Red illuminated actuator.
