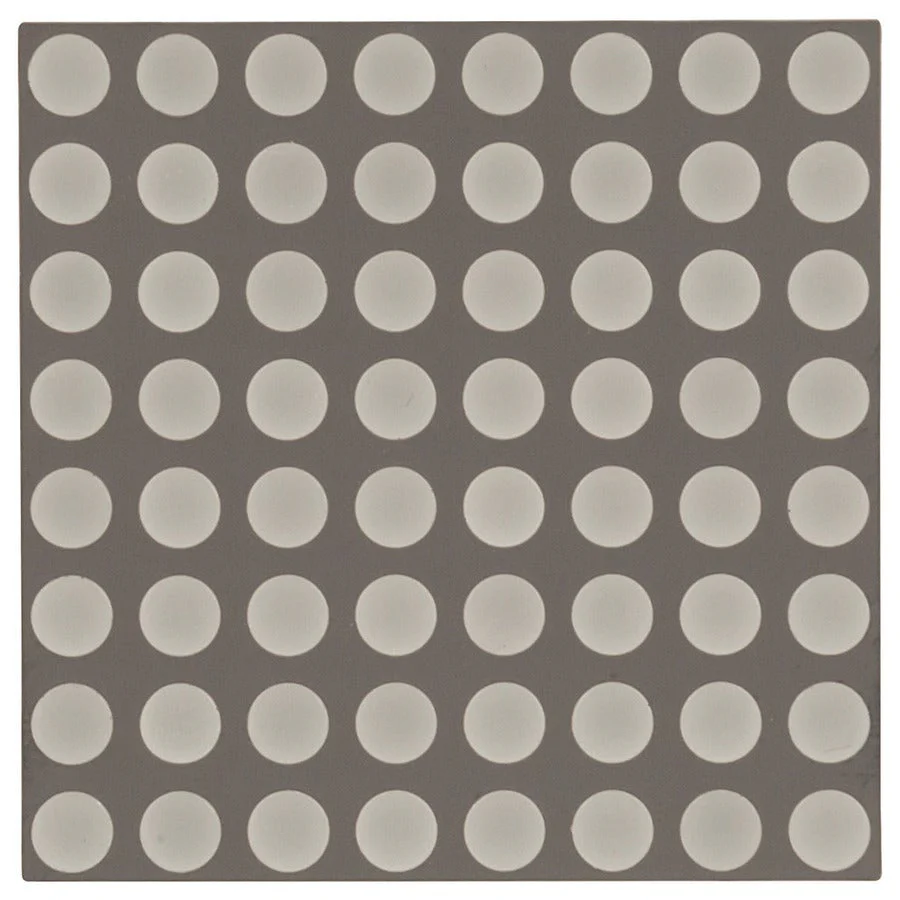

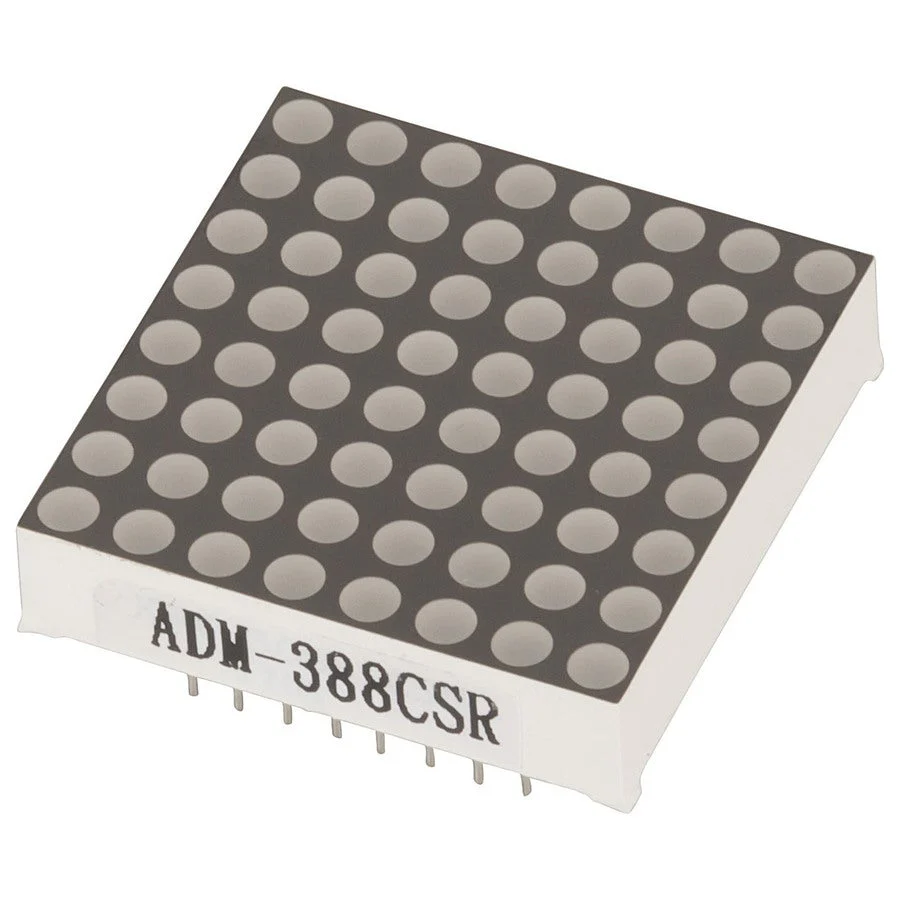

Red 8x8 LED Matrix ZD1802
8x8 LED matrix module for simple graphical output display. Ideal for display of symbols, basic data, or graphics. 16 pin connection with 8 anode pins for column and 8 cathode pins for rows. Available in red or green.
Specifications:
| Width | 32mm |
| Height | 32mm |
| Depth | 8mm |
| Illumination Type | Single Colour |
| Light Colour | Red |
| Light Wavelength | 660nm |
| Intensity | 15mcd |
| Vf (typ) - Typical Forward Voltage | 1.85V |
| If (typ) - Typical Forward Current | 40mA |
Downloads
- Download Datasheet
8x8 LED matrix module for simple graphical output display. Ideal for display of symbols, basic data, or graphics. 16 pin connection with 8 anode pins for column and 8 cathode pins for rows. Available in red or green.
Specifications:
| Width | 32mm |
| Height | 32mm |
| Depth | 8mm |
| Illumination Type | Single Colour |
| Light Colour | Red |
| Light Wavelength | 660nm |
| Intensity | 15mcd |
| Vf (typ) - Typical Forward Voltage | 1.85V |
| If (typ) - Typical Forward Current | 40mA |
Downloads
- Download Datasheet
