Photo Interrupter ZD1901

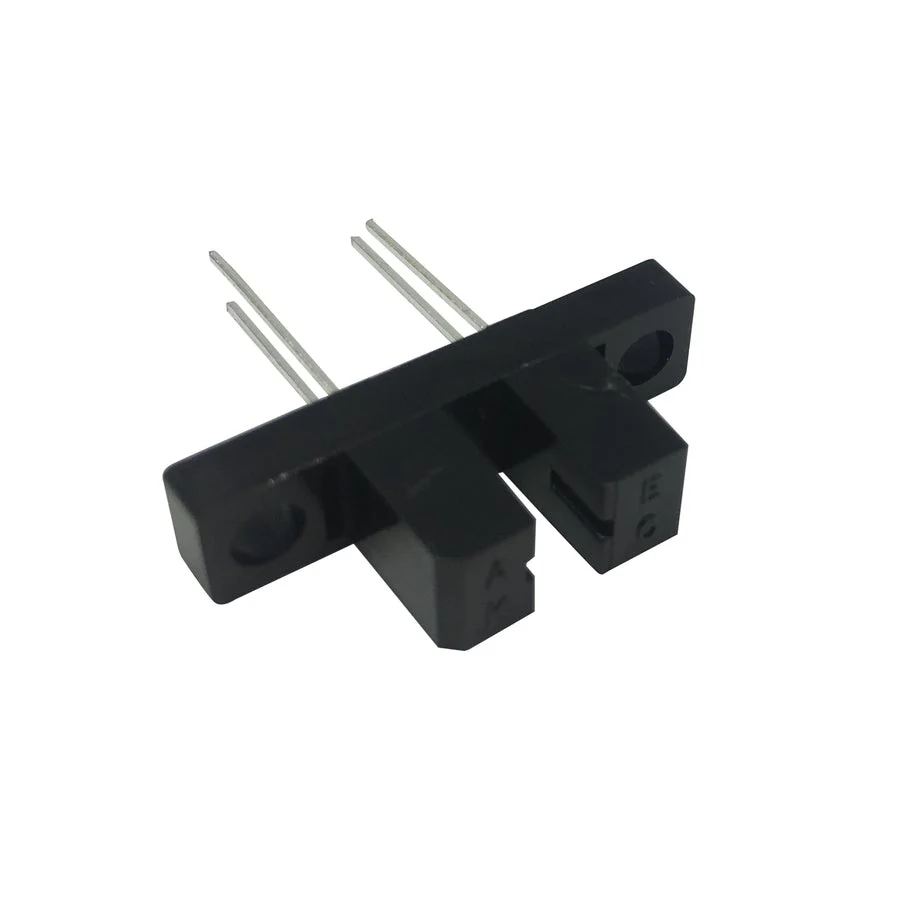

This device enables you to turn a circuit on and off optically. It consists of a moulded plastic housing with an IR LED facing a phototransistor across a gap. Any object in the gap will interrupt the IR beam and consequently switch the phototransistor on and off.The device is very fast and ideal for counting, timing or sensing.Full specs supplied with each unit.
FEATURES:
- PCB or chassis mounting
- Low cost- Rugged one piece construction
- Very fastAPPLICATION:
- Counter sensor
- Tachometer
- Opto ignition
- Edge sensor
- Tape end sensor.
| Optocoupler Operating Current | 50mA |
| Reverse Voltage | 5V |
| Optocoupler Type | Photo interrupter |
| leg distance | 2.54 |
| active mount type | Through Hole |
| active connector type | Solder Legs |
| component package | radial |
| active number of legs | 4 count |
| diameter of leg | 0.38mm |
Downloads
