Panel/Surface Mount LED Voltmeter and Ammeter QP5584
Quite possibly the easiest way to monitor battery voltage and current draw on your van, RV or boat. Simply follow the included wiring diagram to measure 5-30VDC and 0 to 10A DC.
• Supplied with brackets for panel or surface mounting
• Connection is via three 6.3mm spade terminals (current shunt in-built)
• Also available with additional modules
Internal or Sub-part Dimensions
| Diameter | 36mm |
| Depth | 40mm |
| Dimension details | Voltmeter/ammeter module |
| Dimensions for | Without Bracket |
Product Dimensions
| Width | 60mm |
| Dimension details | Panel Mounting |
| Height | 42mm |
| Dimensions for | Including Bracket |
Additional Dimensions

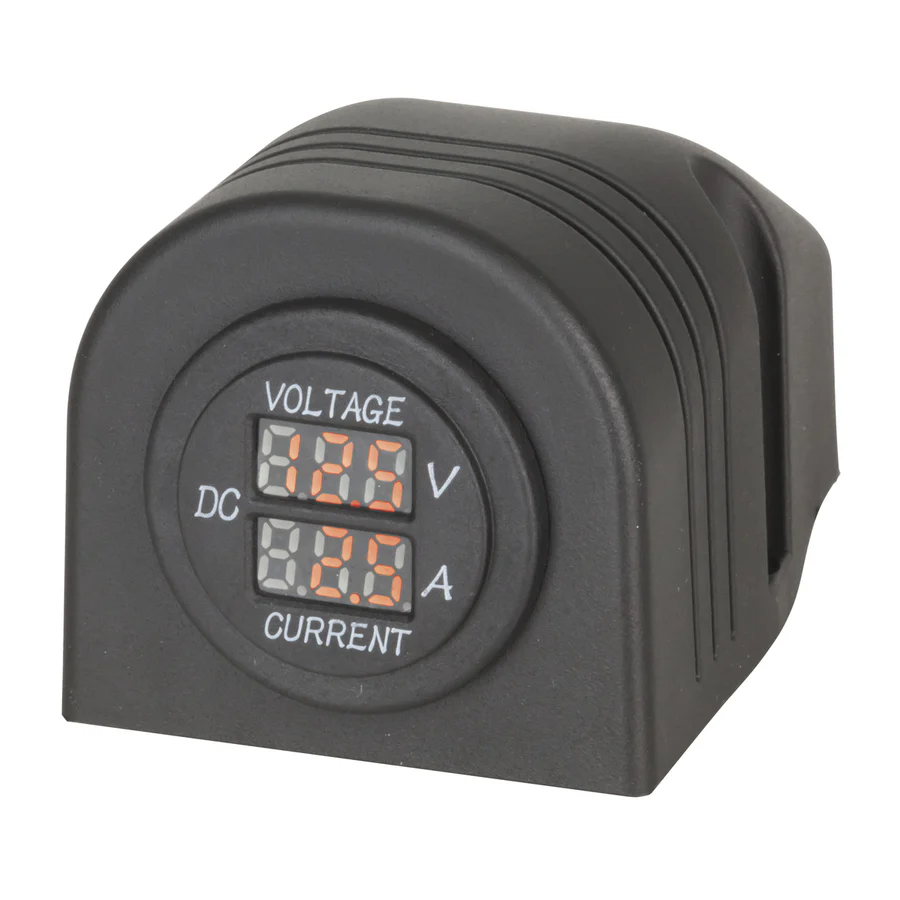

| Dimensions details | Under Dash / Surface Mount Hood |
| Dimension for | Including Bracket |
| Width | 55mm |
| Height | 50mm |
| Depth | 80mm |
Measures Voltage DC
| DC Volts Measurement Range | 5V-30V |
Measures Current DC
| Current DC Measuring Range | 0A-10A |
Product Mounting
| Attachment / Securing Method | Collar / Nut |
| Mounting Method | Panel |
Meter Display
| Digits Displayed | 3 digit |
| Display Type | LED |
| Display Backlight | Red LED Backlit |
Warranty: 12 Months
Quite possibly the easiest way to monitor battery voltage and current draw on your van, RV or boat. Simply follow the included wiring diagram to measure 5-30VDC and 0 to 10A DC.
• Supplied with brackets for panel or surface mounting
• Connection is via three 6.3mm spade terminals (current shunt in-built)
• Also available with additional modules
Internal or Sub-part Dimensions
| Diameter | 36mm |
| Depth | 40mm |
| Dimension details | Voltmeter/ammeter module |
| Dimensions for | Without Bracket |
Product Dimensions
| Width | 60mm |
| Dimension details | Panel Mounting |
| Height | 42mm |
| Dimensions for | Including Bracket |
Additional Dimensions
| Dimensions details | Under Dash / Surface Mount Hood |
| Dimension for | Including Bracket |
| Width | 55mm |
| Height | 50mm |
| Depth | 80mm |
Measures Voltage DC
| DC Volts Measurement Range | 5V-30V |
Measures Current DC
| Current DC Measuring Range | 0A-10A |
Product Mounting
| Attachment / Securing Method | Collar / Nut |
| Mounting Method | Panel |
Meter Display
| Digits Displayed | 3 digit |
| Display Type | LED |
| Display Backlight | Red LED Backlit |
Warranty: 12 Months
$30.49
