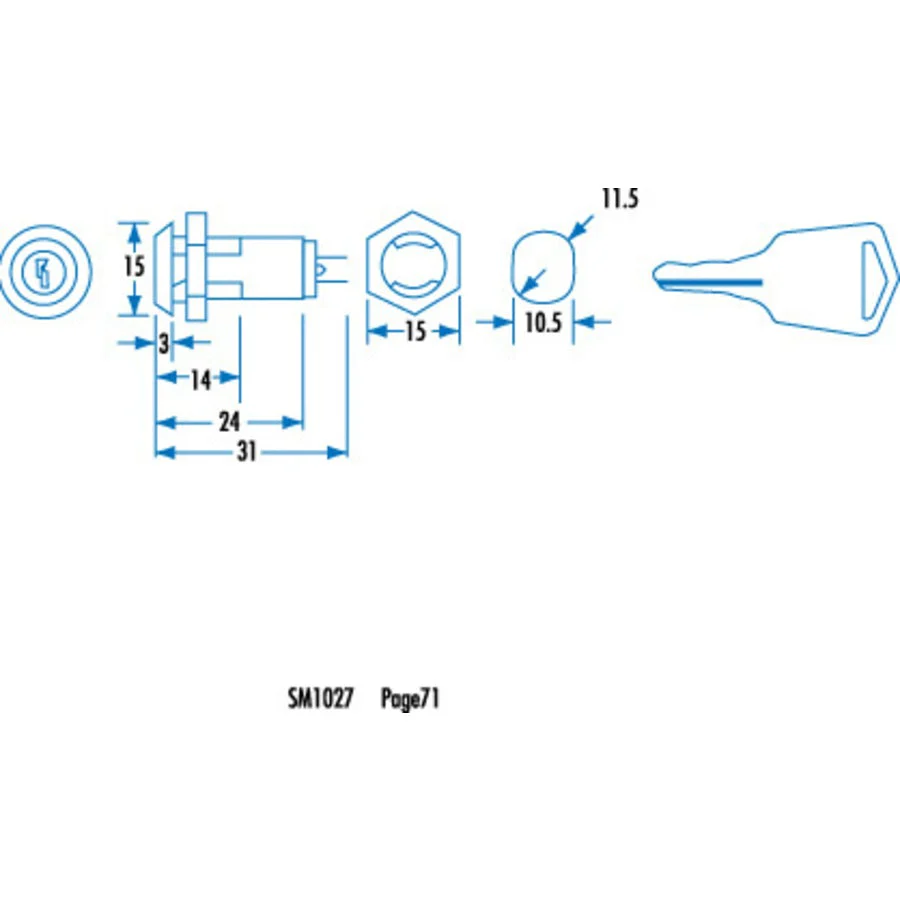

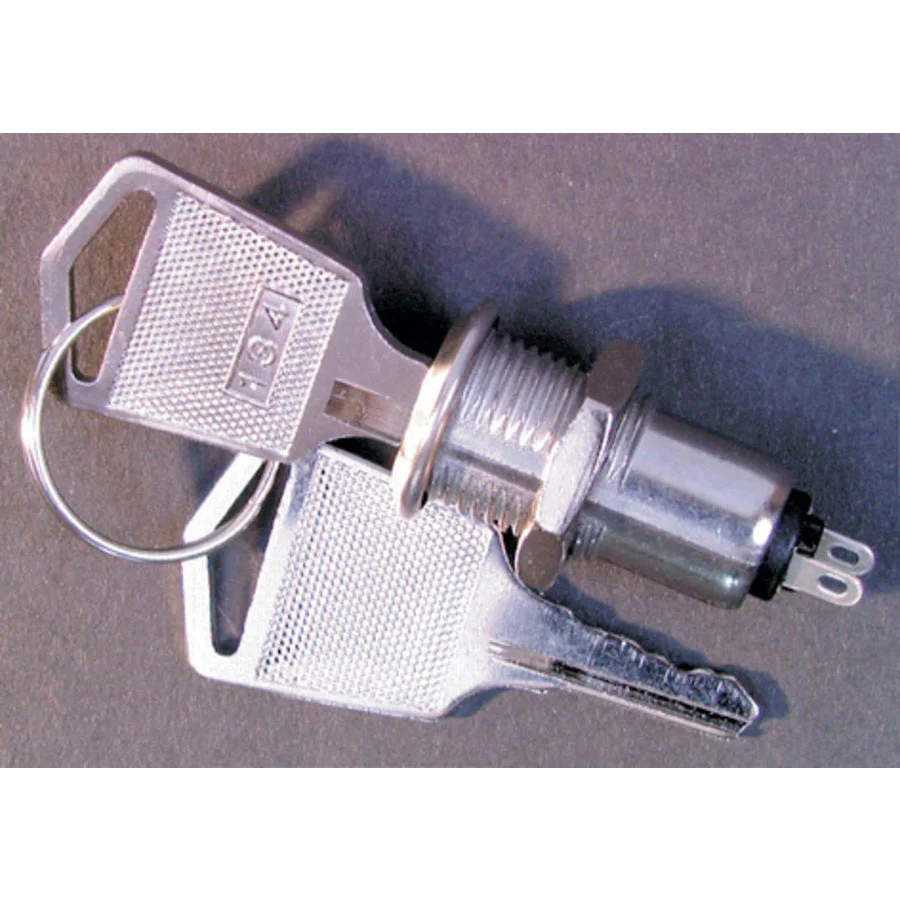

Mini Barrel Key Switch SM1027
Ideal for situations where there is not much room. 2 keys supplied.
Specifications:
| Switch Type | Key |
| Switch Connection | Spade Terminals |
| Mechanism Material | Metal |
| Mounting Method | Panel |
| Attachment / Securing Method | Collar / Nut |
| Max Mount Panel Thickness | 29mm |
| Round Mount Hole Diameter | 12mm |
| DC current rating | 3A |
| AC Voltage rating | 125V,250V |
| AC current rating | 1A,0.5A |
| Length | 31mm |
| Width | 15mm |
| Height | 15mm |
Ideal for situations where there is not much room. 2 keys supplied.
Specifications:
| Switch Type | Key |
| Switch Connection | Spade Terminals |
| Mechanism Material | Metal |
| Mounting Method | Panel |
| Attachment / Securing Method | Collar / Nut |
| Max Mount Panel Thickness | 29mm |
| Round Mount Hole Diameter | 12mm |
| DC current rating | 3A |
| AC Voltage rating | 125V,250V |
| AC current rating | 1A,0.5A |
| Length | 31mm |
| Width | 15mm |
| Height | 15mm |
$6.86
Mini Barrel Key Switch SM1027—
$6.86
