Maycar build a blue led cube 4 x 4 x 4 - learn to solder kit
As described in the May 2020 DIYODE magazine

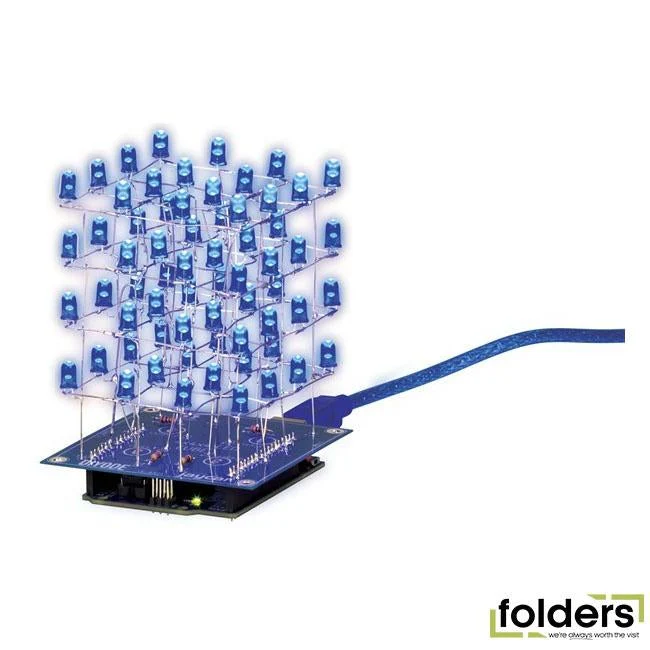

Build and marvel at your own programmable LED cube. This kit turns sixty-four blue LEDs, circuit board, a handful of components, and an Arduino® Uno compatible board (XC4410 sold separately) into an animated 4x4x4 LED cube. Once you have successfully soldered the cube together, plug it into your favourite Arduino® Uno compatible board and watch the LEDs alternate between fifteen different patterns. We also include instructions to program your own patterns. Tools and soldering required.
| Dimension details : LED Frame |
| Width : 65.0mm |
| Height : 88.0mm |
| Depth : 65.0mm |
| LED Type : 5mm Standard LED |
| Illumination Type : Single Colour |
| Light Colour : Blue |
| Lens Type : Diffused |
| Dimension details : Printed Circuit Board |
| Length : 73.0mm |
| Width : 73.0mm |
