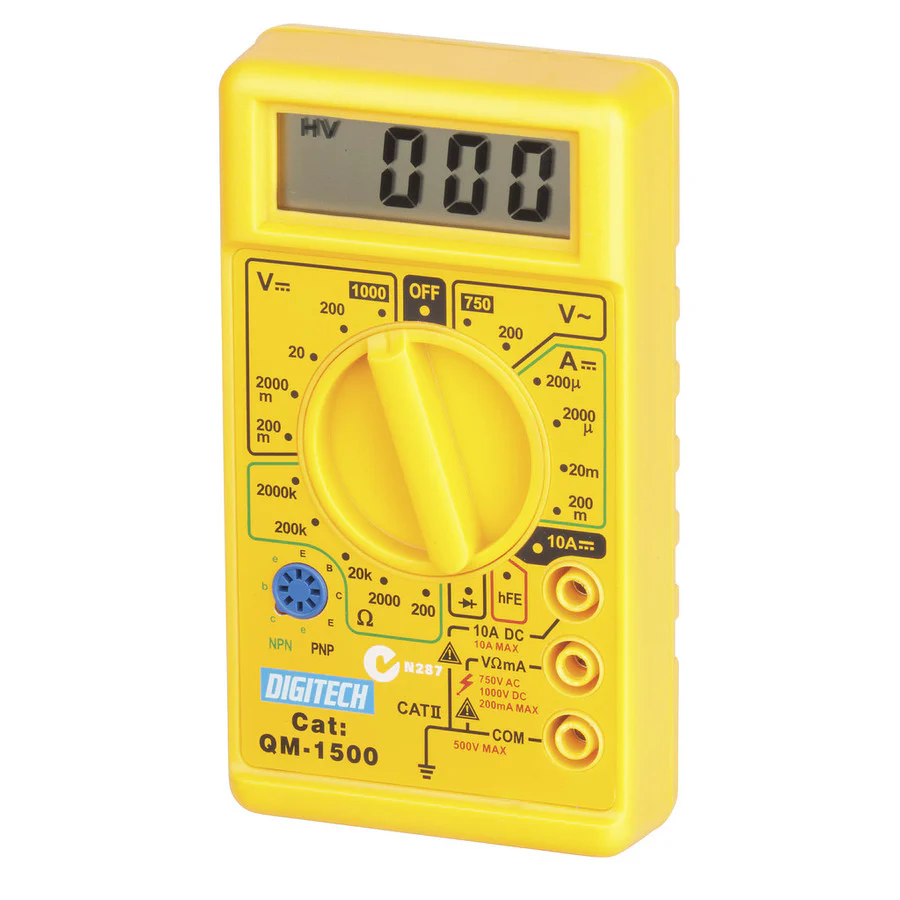

Low Cost Digital Multimeter (DMM)
This is the ideal first multimeter or a handy spare meter for your car or toolbox. Measures essential test ranges and includes plug-in 4mm probes plus transistor tester.
• Ideal First Meter
• Compact Size
• Overload Protected
For More info on Digital Multimeters.
Specifications:
| DC Current Ranges | 200µA,2mA,20mA,200A,10A |
| DC Current Accuracy | 20mA ±1 ±2 Digits,200mA ±1.2 ±2 Digits,10A ±2 ±2 Digits |
| AC Voltage Accuracy | ±1.2 ±10 Digits% |
| AC Voltage Ranges | 200V,750V |
| DC Voltage Accuracy | 200V ±0.5 ±2 Digits,200V ±0.8 ±2 Digits |
| DC Voltage Ranges | 200mV,2V,20V,200V,1000V |
| Safety Rating Cat | Cat II |
| Safety Rating Max Volt | 500V |
| Resistance Ranges | 200Ω,2kΩ,20kΩ,200kΩ,2MΩ |
| Resistance Accuracy | 200kΩ ±0.8 ±2 Digits%,200kΩ ±1 ±2 Digits% |
| Count / Maximum Reading | 1999 count |
| True RMS | No |
| Autorange | No |
| Probe Type | Basic Meter Probes |
| Connection to meter | Shrouded 4mm Banana Plug |
| Includes finger guard | Yes |
| Measures transistor | Yes |
| Special Features | Pocket Sized |
| Casing | Plastic |
| Measurement Range Count | 19 count |
| Meter Input Impedence | 1MΩ |
| Measures diode | Yes |
| Input Protection Fuse | 500mA |
| Led Indicator Display | No |
| Inline Sensor | No |
| Size / Shape | 9V |
| Battery quantity | 1pc |
| Batteries included | Yes |
| Batteries can be replaced by user | Yes |
| Compartment location | Internal / In-built |
| How is battery compartment kept closed | Clip and Screw |
| Weight | 150g |
| Width | 68mm |
| Height | 125mm |
| Depth | 23mm |
| Display Type | LCD |
| Display Height | 30mm |
| Digits Displayed | 3.5 digit |
| Display Width | 100mm |
| Bargraph | No |
| Display Backlight | Not Backlit |
