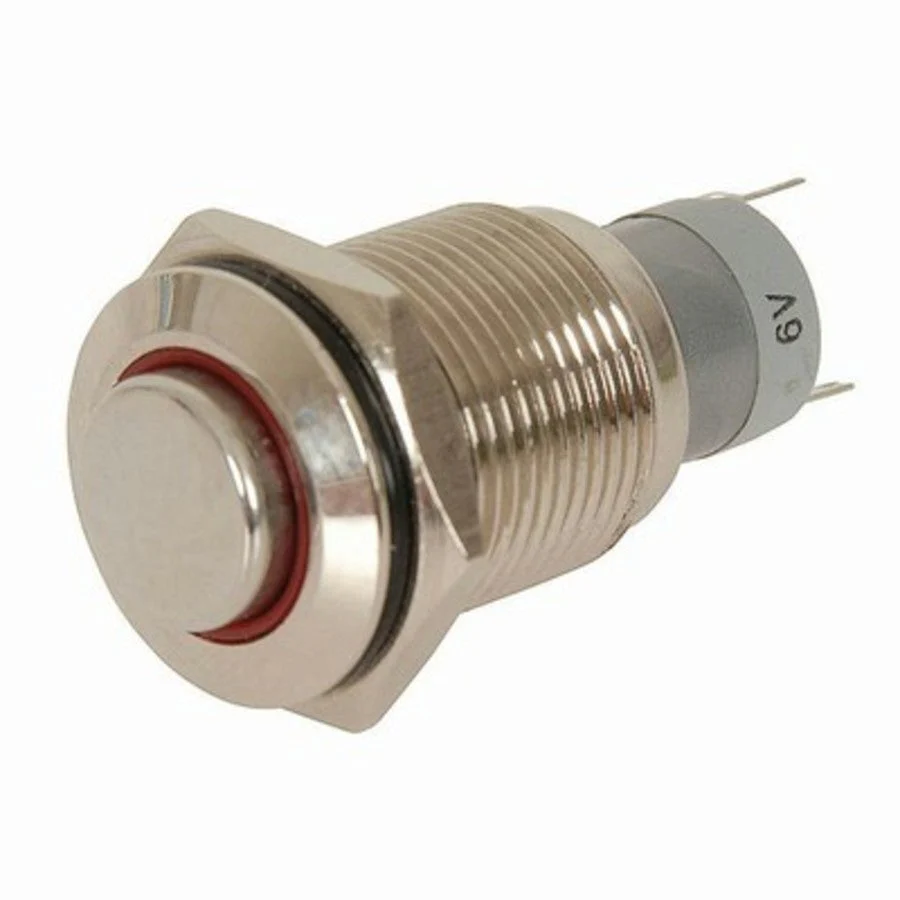

IP67 Rated Illuminated Momentary Switch
IP67 rated for industrial use or other harsh environments. Illuminated, metal body, DPDT, on-off or momentary action.
Specifications:
| Switch Type | Pushbutton |
| Pole Throw Type | DPDT |
| Switch Function | Single Action Momentary |
| Poles / Contacts | 2 pole |
| Throws / Positions | 2pos |
| Switch Connection | Solder Tags |
| Switch Colour Coded | Red, Blue or Green Options Available |
| Actuator Length | 20mm |
| Actuator Width | 18mm |
| Attachment / Securing Method | Collar / Nut |
| Round Mount Hole Diameter | 16mm |
| Mounting Method | Panel |
| AC Voltage rating | 250V |
| AC current rating | 3A |
| Nominal Voltage | 12V |
| Type | 5mm Standard LED |
| Illumination Colour | Red |
| Connection | Solder Tags |
| IP Rating certificate | Yes |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 7 - Immersion up to 1m |
| IP Rating | 67 |
| Height | 40mm |
| Diameter | 22mm |
IP67 rated for industrial use or other harsh environments. Illuminated, metal body, DPDT, on-off or momentary action.
Specifications:
| Switch Type | Pushbutton |
| Pole Throw Type | DPDT |
| Switch Function | Single Action Momentary |
| Poles / Contacts | 2 pole |
| Throws / Positions | 2pos |
| Switch Connection | Solder Tags |
| Switch Colour Coded | Red, Blue or Green Options Available |
| Actuator Length | 20mm |
| Actuator Width | 18mm |
| Attachment / Securing Method | Collar / Nut |
| Round Mount Hole Diameter | 16mm |
| Mounting Method | Panel |
| AC Voltage rating | 250V |
| AC current rating | 3A |
| Nominal Voltage | 12V |
| Type | 5mm Standard LED |
| Illumination Colour | Red |
| Connection | Solder Tags |
| IP Rating certificate | Yes |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 7 - Immersion up to 1m |
| IP Rating | 67 |
| Height | 40mm |
| Diameter | 22mm |
Select Colour
From $16.08
IP67 Rated Illuminated Momentary Switch—
$16.08
