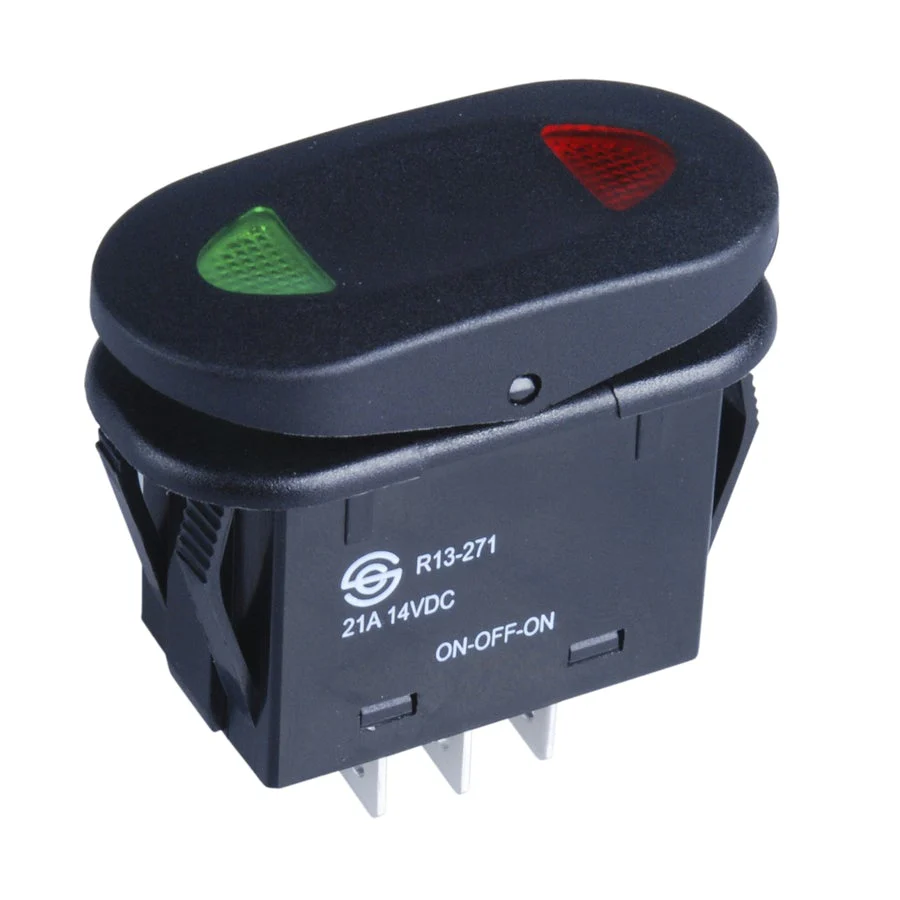

IP65 SPDT Centre Off Rocker Switch Illuminated
IP65 rated, illuminated switch for automotive and marine applications. Illuminates one side red and one side green.
Specifications:
| Switch Type | Rocker |
| Pole Throw Type | SPDT |
| Switch Function | Locking On/Off |
| Centre Off | Yes |
| Poles / Contacts | 1 pole |
| Throws / Positions | 2pos |
| Switch Connection | Spade Terminals |
| Switch Colour Coded | Red |
| Mechanism Material | Plastic |
| Square Mount Hole Width | 21mm |
| Square Mount Hole Height | 38mm |
| Mounting Method | Panel,Front of Panel |
| DC Voltage | 14V |
| DC current rating | 21A |
| Nominal Voltage | 12V |
| Type | 5mm Standard LED |
| Illumination Colour | Green |
| Connection | Spade Terminals |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 5 - Water jets |
| Length | 48mm |
| Width | 24mm |
| Height | 27mm |
IP65 rated, illuminated switch for automotive and marine applications. Illuminates one side red and one side green.
Specifications:
| Switch Type | Rocker |
| Pole Throw Type | SPDT |
| Switch Function | Locking On/Off |
| Centre Off | Yes |
| Poles / Contacts | 1 pole |
| Throws / Positions | 2pos |
| Switch Connection | Spade Terminals |
| Switch Colour Coded | Red |
| Mechanism Material | Plastic |
| Square Mount Hole Width | 21mm |
| Square Mount Hole Height | 38mm |
| Mounting Method | Panel,Front of Panel |
| DC Voltage | 14V |
| DC current rating | 21A |
| Nominal Voltage | 12V |
| Type | 5mm Standard LED |
| Illumination Colour | Green |
| Connection | Spade Terminals |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 5 - Water jets |
| Length | 48mm |
| Width | 24mm |
| Height | 27mm |
$11.47
IP65 SPDT Centre Off Rocker Switch Illuminated—
$11.47
Description
IP65 rated, illuminated switch for automotive and marine applications. Illuminates one side red and one side green.
Specifications:
| Switch Type | Rocker |
| Pole Throw Type | SPDT |
| Switch Function | Locking On/Off |
| Centre Off | Yes |
| Poles / Contacts | 1 pole |
| Throws / Positions | 2pos |
| Switch Connection | Spade Terminals |
| Switch Colour Coded | Red |
| Mechanism Material | Plastic |
| Square Mount Hole Width | 21mm |
| Square Mount Hole Height | 38mm |
| Mounting Method | Panel,Front of Panel |
| DC Voltage | 14V |
| DC current rating | 21A |
| Nominal Voltage | 12V |
| Type | 5mm Standard LED |
| Illumination Colour | Green |
| Connection | Spade Terminals |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 5 - Water jets |
| Length | 48mm |
| Width | 24mm |
| Height | 27mm |
