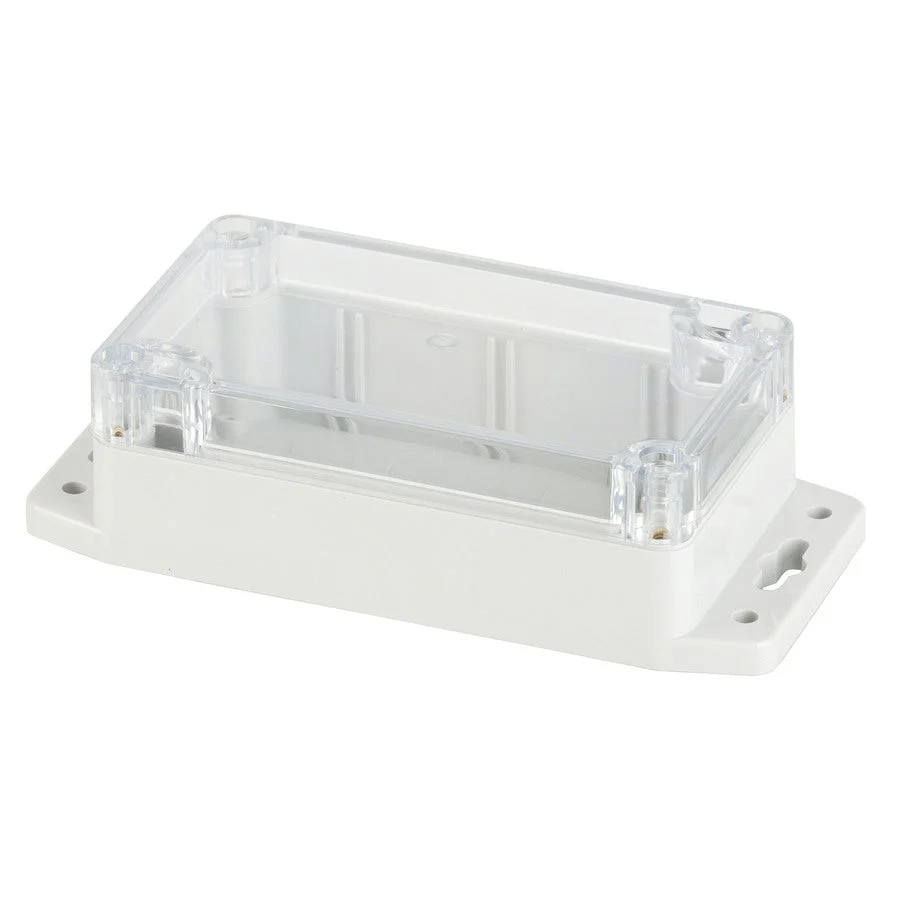

Sealed IP65 Flanged Polycarbonate Enclosure
Features:
• Made with Polycarbonate material
• Moulded in light grey.
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system with a neoprene gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically (not on HB6230)
• Made with Polycarbonate material
• Moulded in light grey.
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system with a neoprene gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically (not on HB6230)
Specifications:
| Width | 115mm |
| Height | 65mm |
| Depth | 40mm |
| Material | Polycarbonate |
| PCB Internal Guide Slots | Yes |
| Gasket sealing system | Yes |
| Gasket Material | Neoprene |
| Lid Screws | 4pc |
| Colour | Light Grey |
| IP Rating | IP65 |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 5 - Water jets |
Features:
• Made with Polycarbonate material
• Moulded in light grey.
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system with a neoprene gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically (not on HB6230)
• Made with Polycarbonate material
• Moulded in light grey.
• Operating temperature: -40 to +125C
• The lid and base incorporate a tongue and groove sealing system with a neoprene gasket
• Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
• Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
• Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
• Internal guide slots for mounting PCB assemblies vertically (not on HB6230)
Specifications:
| Width | 115mm |
| Height | 65mm |
| Depth | 40mm |
| Material | Polycarbonate |
| PCB Internal Guide Slots | Yes |
| Gasket sealing system | Yes |
| Gasket Material | Neoprene |
| Lid Screws | 4pc |
| Colour | Light Grey |
| IP Rating | IP65 |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 5 - Water jets |
$4.22
Original: $12.05
-65%Sealed IP65 Flanged Polycarbonate Enclosure—
$12.05
$4.22Description
