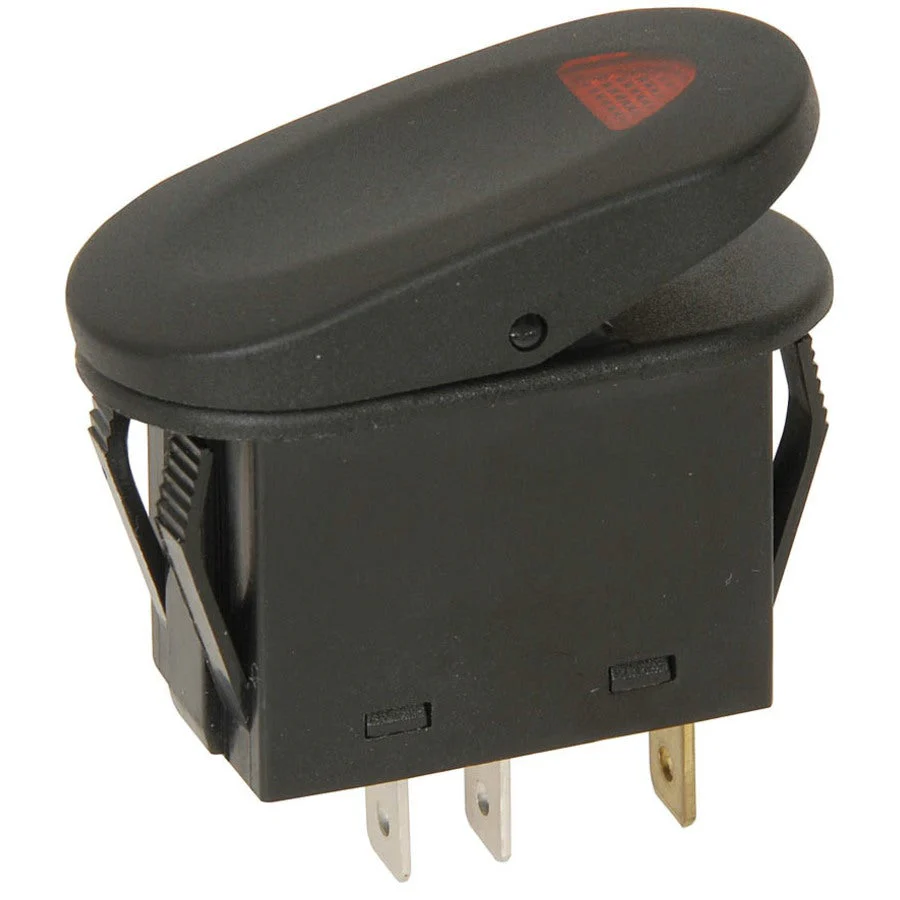

Illuminated IP56 Rated Rocker Switch
IP65 rated, large rocker actuator.
Specifications:
| Switch Type | Rocker |
| Pole Throw Type | SPST |
| Switch Function | Locking On/Off |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Switch Connection | Spade Terminals |
| Switch Colour Coded | Red |
| Mechanism Material | Plastic |
| Attachment / Securing Method | Snap-in |
| Square Mount Hole Width | 21mm |
| Square Mount Hole Height | 36mm |
| Mounting Method | Panel,Front of Panel |
| DC Voltage | 12V |
| DC current rating | 20A |
| Nominal Voltage | 12V |
| Type | 5mm Standard LED |
| Illumination Colour | Red |
| Connection | Spade Terminals |
| Dust/Particle Ingress Protection | 5 - Dust protected, protected but some dust may enter |
| Liquid/Moisture Ingress Protection | 6 - Powerful water jets |
| Length | 48mm |
| Width | 24mm |
| Height | 25mm |
IP65 rated, large rocker actuator.
Specifications:
| Switch Type | Rocker |
| Pole Throw Type | SPST |
| Switch Function | Locking On/Off |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Switch Connection | Spade Terminals |
| Switch Colour Coded | Red |
| Mechanism Material | Plastic |
| Attachment / Securing Method | Snap-in |
| Square Mount Hole Width | 21mm |
| Square Mount Hole Height | 36mm |
| Mounting Method | Panel,Front of Panel |
| DC Voltage | 12V |
| DC current rating | 20A |
| Nominal Voltage | 12V |
| Type | 5mm Standard LED |
| Illumination Colour | Red |
| Connection | Spade Terminals |
| Dust/Particle Ingress Protection | 5 - Dust protected, protected but some dust may enter |
| Liquid/Moisture Ingress Protection | 6 - Powerful water jets |
| Length | 48mm |
| Width | 24mm |
| Height | 25mm |
$10.32
Illuminated IP56 Rated Rocker Switch—
$10.32
Description
IP65 rated, large rocker actuator.
Specifications:
| Switch Type | Rocker |
| Pole Throw Type | SPST |
| Switch Function | Locking On/Off |
| Poles / Contacts | 1 pole |
| Throws / Positions | 1pos |
| Switch Connection | Spade Terminals |
| Switch Colour Coded | Red |
| Mechanism Material | Plastic |
| Attachment / Securing Method | Snap-in |
| Square Mount Hole Width | 21mm |
| Square Mount Hole Height | 36mm |
| Mounting Method | Panel,Front of Panel |
| DC Voltage | 12V |
| DC current rating | 20A |
| Nominal Voltage | 12V |
| Type | 5mm Standard LED |
| Illumination Colour | Red |
| Connection | Spade Terminals |
| Dust/Particle Ingress Protection | 5 - Dust protected, protected but some dust may enter |
| Liquid/Moisture Ingress Protection | 6 - Powerful water jets |
| Length | 48mm |
| Width | 24mm |
| Height | 25mm |
