Housewatch 360 Degree Mini Flush Mount Sensor

Product image 1
1 / 2

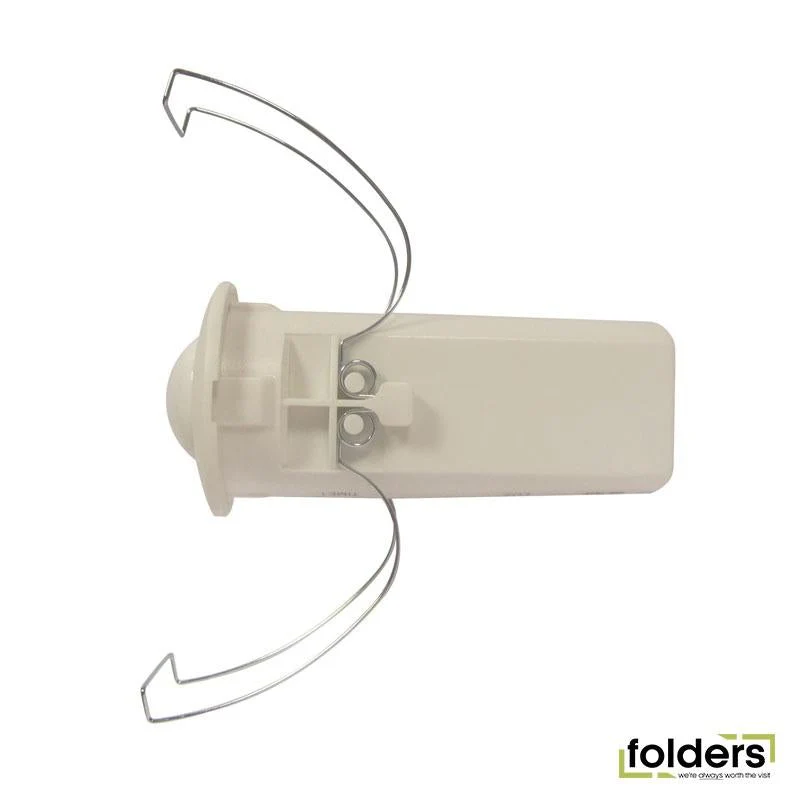

Housewatch 360 Degree Mini Flush Mount Sensor

HOUSEWATCH 360 Degree Mini Flush Mount Sensor. IP40. Passive IR. 5.6 - 11m Detection Range at 2.5m High. Cutout diameter: 33mm. Omni-directional Dual Element Sensor. White Colour

Features:

  • Adjustable Time, Distance & Lux
  • Omni-directional dual element sensor
  • Cutout diameter: 33mm
  • Polycarbonate construction
  • Minimum load 10W
  • Manual Override
Specifications:

Mounting

Flush

Sensor Type

Passive IR

Detection Range

11m Diameter at a 2.5m Mounting Height

Detection Angle

360˚ Fixed

Time on Adjustment

1 sec to 15 mins

Lux Setting (Lux)

0 to 2000

Load

 -2000W max. for Incandescent Light

- 1000W max. for Halogen Light

- 600VA max. for Low Voltage Halogen Light

- 900VA/100˚ μF for Fluorescent Light (CFL & PL Lamps)

- 600VA (Max) 400W for Energy Saving CFL Lamp

- 500VA/400W Max. for LED Lamp

Voltage

240V AC 50Hz

Operating Temperature

0˚C to +45˚C

Environmental Protection

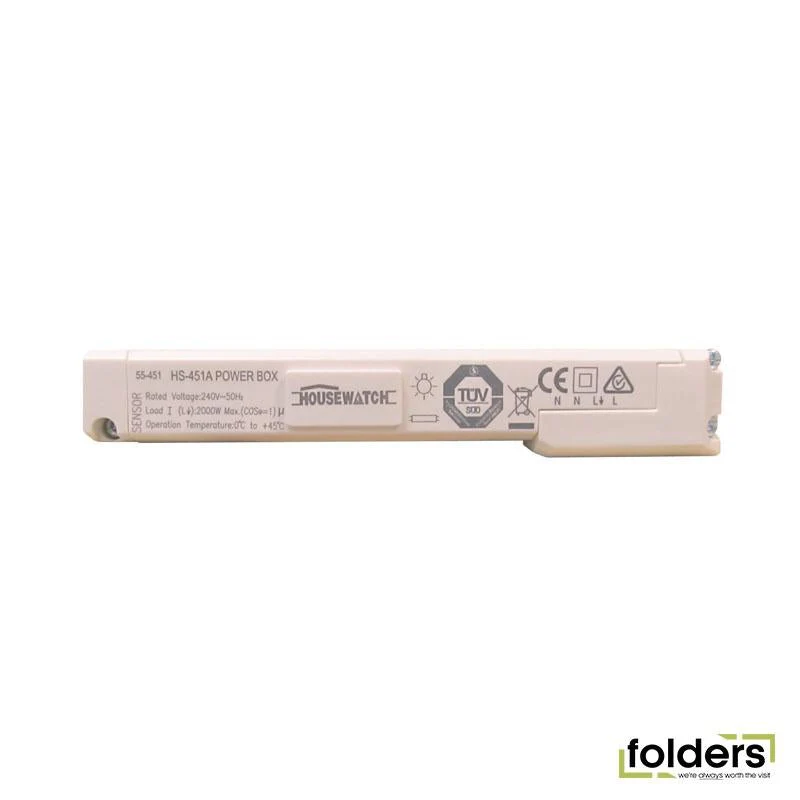

IP40 Detector, IP20 Power Box

Downloads

HOUSEWATCH 360 Degree Mini Flush Mount Sensor. IP40. Passive IR. 5.6 - 11m Detection Range at 2.5m High. Cutout diameter: 33mm. Omni-directional Dual Element Sensor. White Colour

Features:

  • Adjustable Time, Distance & Lux
  • Omni-directional dual element sensor
  • Cutout diameter: 33mm
  • Polycarbonate construction
  • Minimum load 10W
  • Manual Override
Specifications:

Mounting

Flush

Sensor Type

Passive IR

Detection Range

11m Diameter at a 2.5m Mounting Height

Detection Angle

360˚ Fixed

Time on Adjustment

1 sec to 15 mins

Lux Setting (Lux)

0 to 2000

Load

 -2000W max. for Incandescent Light

- 1000W max. for Halogen Light

- 600VA max. for Low Voltage Halogen Light

- 900VA/100˚ μF for Fluorescent Light (CFL & PL Lamps)

- 600VA (Max) 400W for Energy Saving CFL Lamp

- 500VA/400W Max. for LED Lamp

Voltage

240V AC 50Hz

Operating Temperature

0˚C to +45˚C

Environmental Protection

IP40 Detector, IP20 Power Box

Downloads

$17.75

Original: $50.72

-65%
Housewatch 360 Degree Mini Flush Mount Sensor—

$50.72

$17.75

Description

HOUSEWATCH 360 Degree Mini Flush Mount Sensor. IP40. Passive IR. 5.6 - 11m Detection Range at 2.5m High. Cutout diameter: 33mm. Omni-directional Dual Element Sensor. White Colour

Features:

  • Adjustable Time, Distance & Lux
  • Omni-directional dual element sensor
  • Cutout diameter: 33mm
  • Polycarbonate construction
  • Minimum load 10W
  • Manual Override
Specifications:

Mounting

Flush

Sensor Type

Passive IR

Detection Range

11m Diameter at a 2.5m Mounting Height

Detection Angle

360˚ Fixed

Time on Adjustment

1 sec to 15 mins

Lux Setting (Lux)

0 to 2000

Load

 -2000W max. for Incandescent Light

- 1000W max. for Halogen Light

- 600VA max. for Low Voltage Halogen Light

- 900VA/100˚ μF for Fluorescent Light (CFL & PL Lamps)

- 600VA (Max) 400W for Energy Saving CFL Lamp

- 500VA/400W Max. for LED Lamp

Voltage

240V AC 50Hz

Operating Temperature

0˚C to +45˚C

Environmental Protection

IP40 Detector, IP20 Power Box

Downloads
