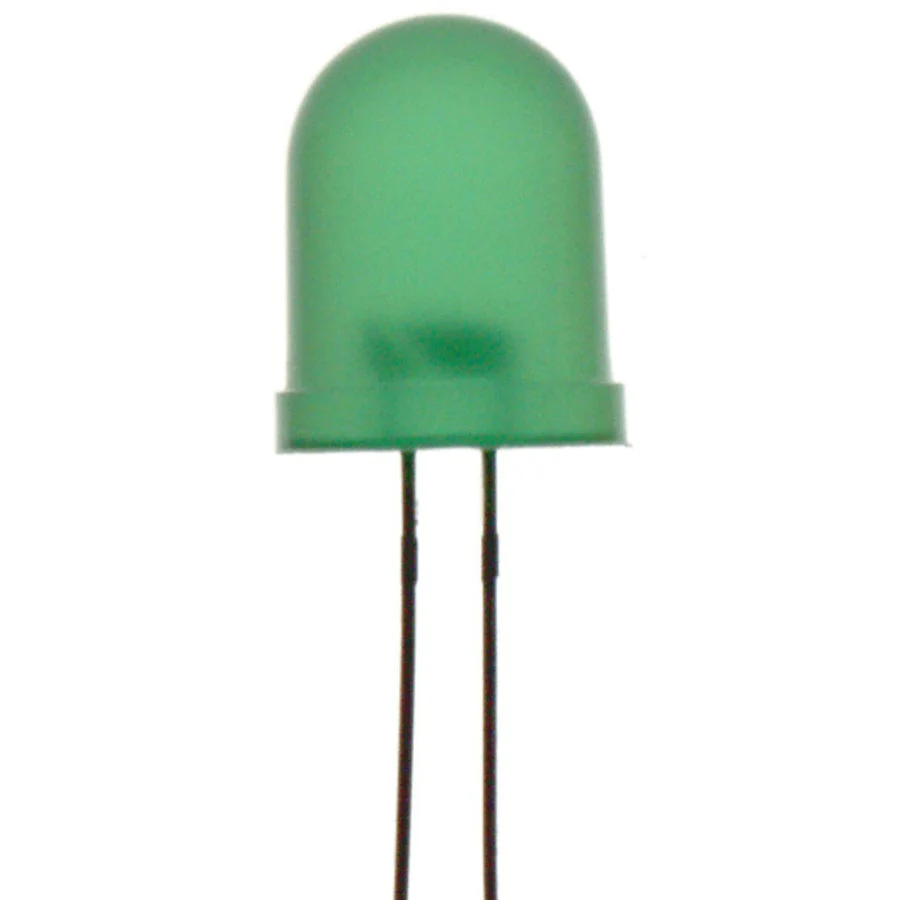

Green 10mm LED 100mcd Round Diffused
Green 10mm LED 100mcd Round Diffused
Specifications:
| Diameter | 10mm |
| LED Type | 10mm Standard LED |
| Illumination Type | Single Colour |
| Light Colour | Green |
| Light Wavelength | 570nm |
| Lens Type | Diffused |
| Viewing Angle | 50° |
| Intensity | 100mcd |
| Vf (typ) - Typical Forward Voltage | 2.2V |
| If (typ) - Typical Forward Current | 20mA |
| If (max) - Maximum Forward Current | 20mA |
| Resistor for 5VDC | 150Ω |
| Resistor for 9VDC | 360Ω |
| Resistor for 12VDC | 510Ω |
Downloads
- Download Datasheet
Green 10mm LED 100mcd Round Diffused
Specifications:
| Diameter | 10mm |
| LED Type | 10mm Standard LED |
| Illumination Type | Single Colour |
| Light Colour | Green |
| Light Wavelength | 570nm |
| Lens Type | Diffused |
| Viewing Angle | 50° |
| Intensity | 100mcd |
| Vf (typ) - Typical Forward Voltage | 2.2V |
| If (typ) - Typical Forward Current | 20mA |
| If (max) - Maximum Forward Current | 20mA |
| Resistor for 5VDC | 150Ω |
| Resistor for 9VDC | 360Ω |
| Resistor for 12VDC | 510Ω |
Downloads
- Download Datasheet
$0.40
Green 10mm LED 100mcd Round Diffused—
$0.40
Description
Green 10mm LED 100mcd Round Diffused
Specifications:
| Diameter | 10mm |
| LED Type | 10mm Standard LED |
| Illumination Type | Single Colour |
| Light Colour | Green |
| Light Wavelength | 570nm |
| Lens Type | Diffused |
| Viewing Angle | 50° |
| Intensity | 100mcd |
| Vf (typ) - Typical Forward Voltage | 2.2V |
| If (typ) - Typical Forward Current | 20mA |
| If (max) - Maximum Forward Current | 20mA |
| Resistor for 5VDC | 150Ω |
| Resistor for 9VDC | 360Ω |
| Resistor for 12VDC | 510Ω |
Downloads
- Download Datasheet
