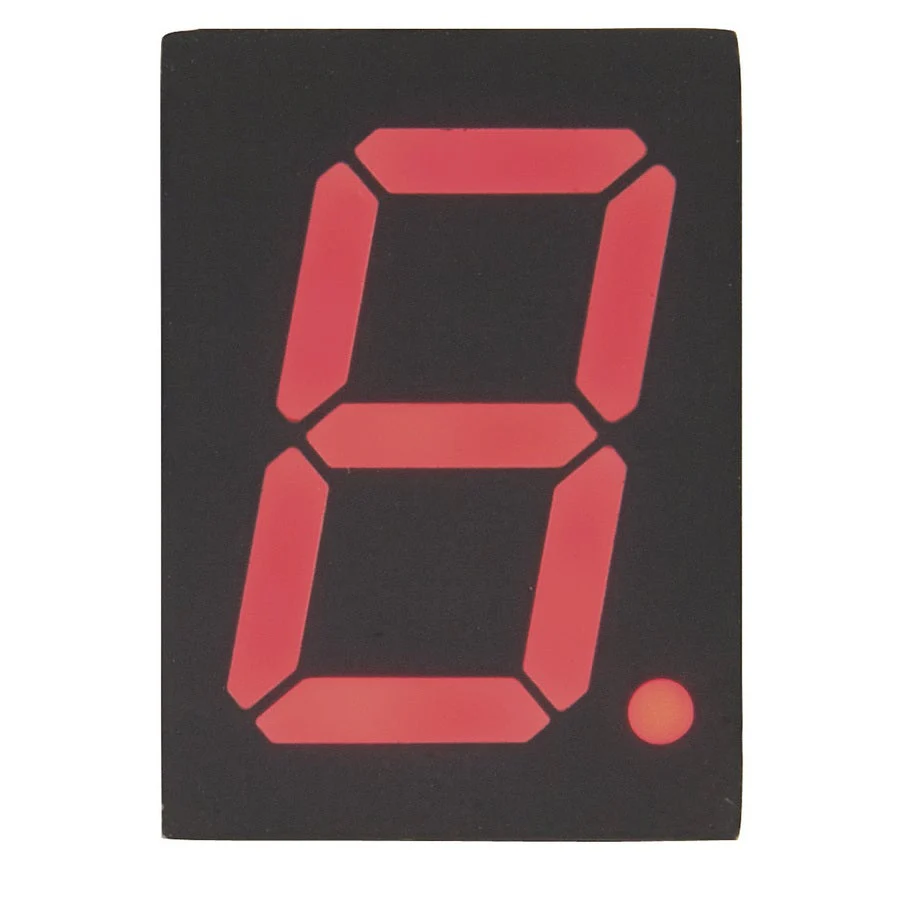

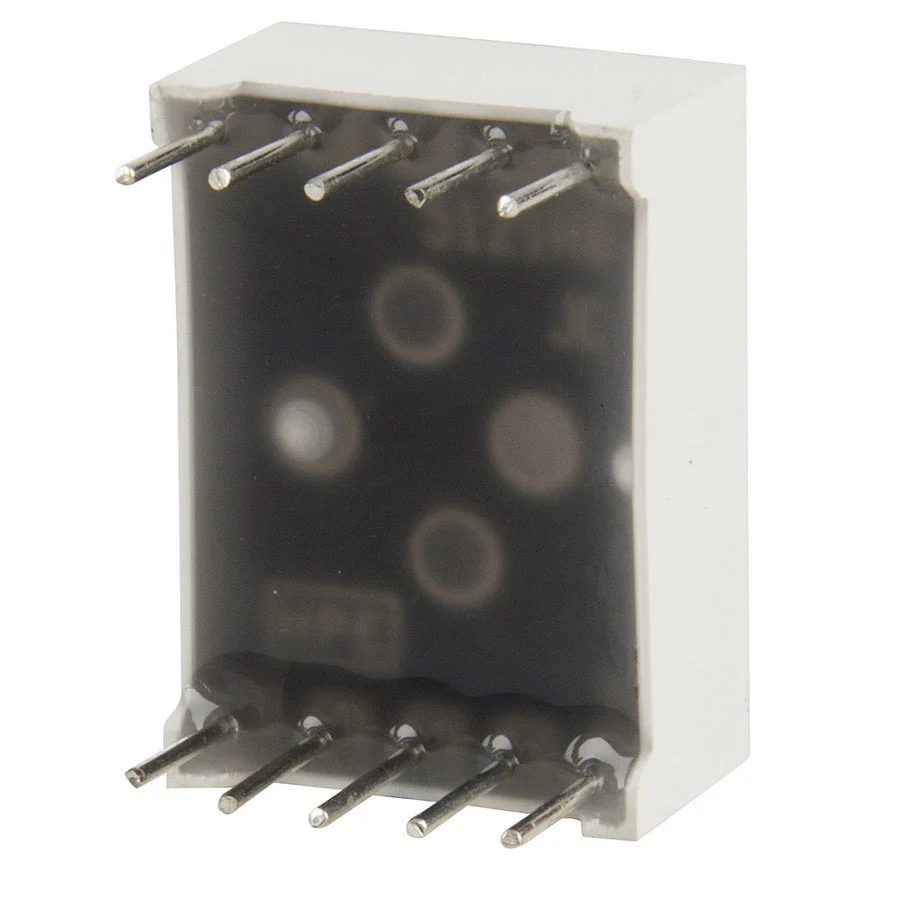

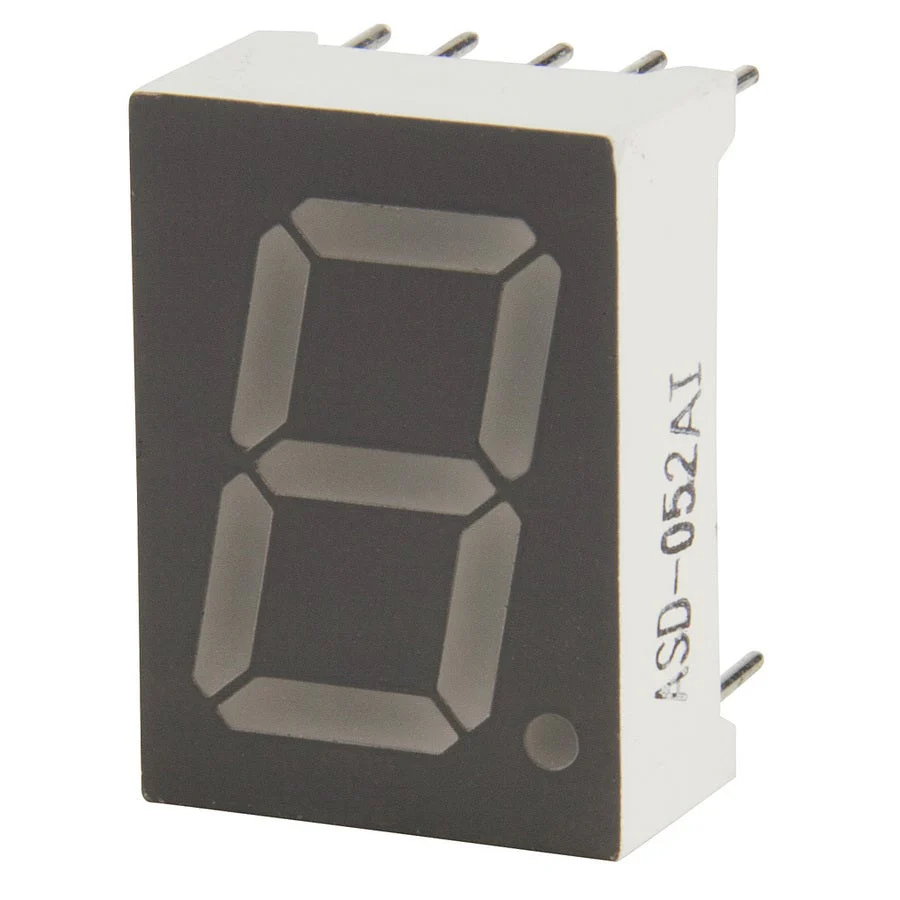

FND507/LTS542R/S50 RWB Common Anode 7 Segment Display
Standard 7 segment LED module for numerical output display. Designed to be fitted in close format to allow display of larger numbers.
• Digit dimensions: 13.2(H) x 7.6(W)mm
• Package dimensions: 17.5(H) x 12.3(W) x 7(D)mm
• Common part number: FND507 / LTS542R / S50RWB
| LED Type | 7 Segment Digit Display |
| Illumination Type | Common Anode |
| Light Colour | Red |
| Lens Type | Diffused |
| Vf (typ) - Typical Forward Voltage | 2.1V |
| If (typ) - Typical Forward Current | 10mA |
Downloads
