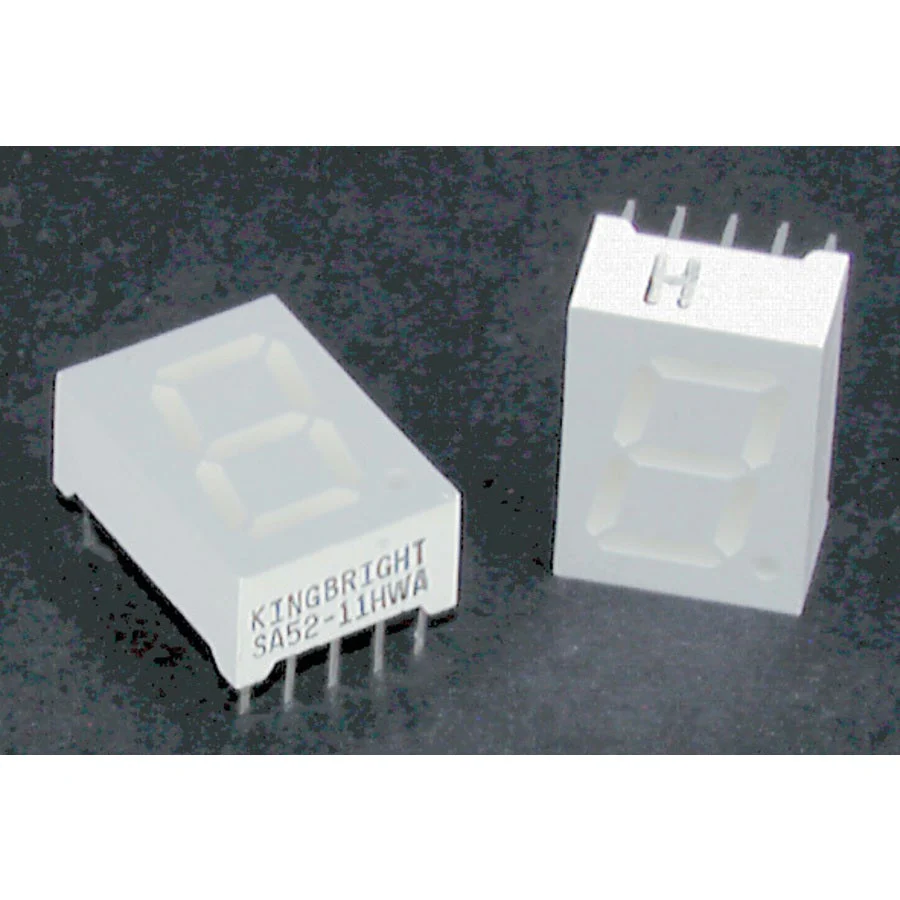

Common Cathode 7 Segment Display
Standard 7 segment LED module for numerical output display. Designed to be fitted in close format to allow display of larger numbers. Wiring format: Common Cathode
FND500/LTS543R/S505RWB

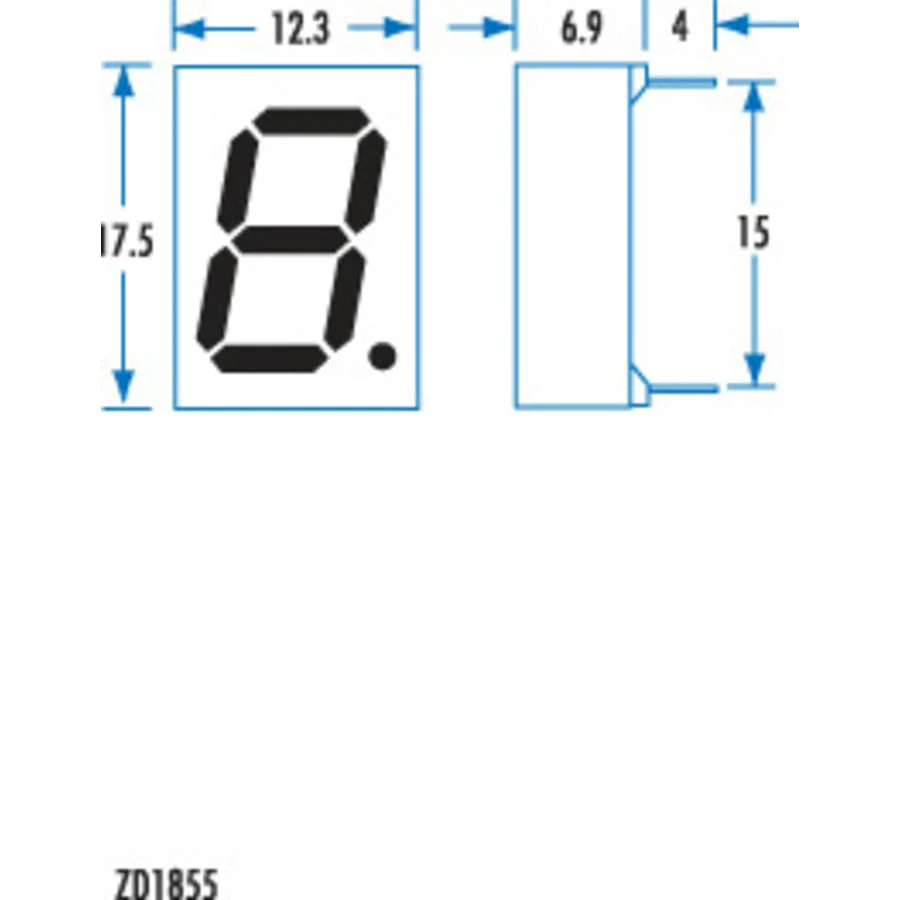

Specifications:
| Width | 12.3mm |
| Height | 17.5mm |
| Depth | 7mm |
| Dimensions details | Digit |
| Dimension for | Other (details below) |
| Width | 7.6mm |
| Height | 13.2mm |
| LED Type | 7 Segment Digit Display |
| Illumination Type | Single Colour |
| Light Colour | Red |
| Vf (typ) - Typical Forward Voltage | 2.1V |
| If (typ) - Typical Forward Current | 10mA |
Downloads
