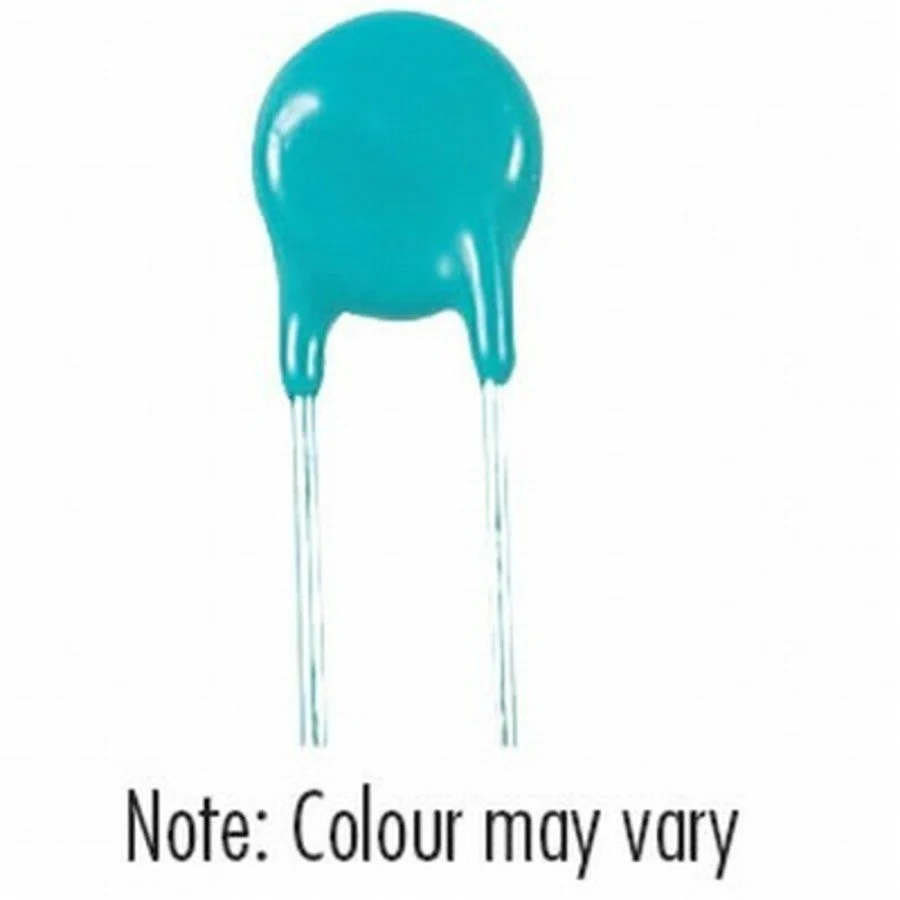

Epoxy Dip NTC Thermistor (15 - 100k Ohms)
These devices are made of a special ceramic material which changes resistance value rapidly with temperature change. They are commonly used to check thermal runaway with bipolar transistor amplifiers etc, but really have dozens of other uses. They are rugged and very reliable.
Features:
- Radial type, dipped epoxy
- Type-NTC Ceramic material with tinned copper lead
Features:
- Radial type, dipped epoxy
- Type-NTC Ceramic material with tinned copper lead
Specifications:
| Diameter | 5mm |
| Temperature Coefficient | Negative (NTC) |
| Resistance at 25°C ±10% | 15 - 100kΩ |
| Thermistor Temperature Range | -20°C |
| Thermal Dissipation Constant | 6mW/°C |
| Component Type | Thermistor |
| Pack Quantity | 1pc |
| Passive mount type | Through Hole |
| Passive connector type | Solder Legs |
| Pitch | 5mm |
| Component package | Radial |
| Maximum Power | 500mW |
| DC current rating | 20mA |
These devices are made of a special ceramic material which changes resistance value rapidly with temperature change. They are commonly used to check thermal runaway with bipolar transistor amplifiers etc, but really have dozens of other uses. They are rugged and very reliable.
Features:
- Radial type, dipped epoxy
- Type-NTC Ceramic material with tinned copper lead
Features:
- Radial type, dipped epoxy
- Type-NTC Ceramic material with tinned copper lead
Specifications:
| Diameter | 5mm |
| Temperature Coefficient | Negative (NTC) |
| Resistance at 25°C ±10% | 15 - 100kΩ |
| Thermistor Temperature Range | -20°C |
| Thermal Dissipation Constant | 6mW/°C |
| Component Type | Thermistor |
| Pack Quantity | 1pc |
| Passive mount type | Through Hole |
| Passive connector type | Solder Legs |
| Pitch | 5mm |
| Component package | Radial |
| Maximum Power | 500mW |
| DC current rating | 20mA |
