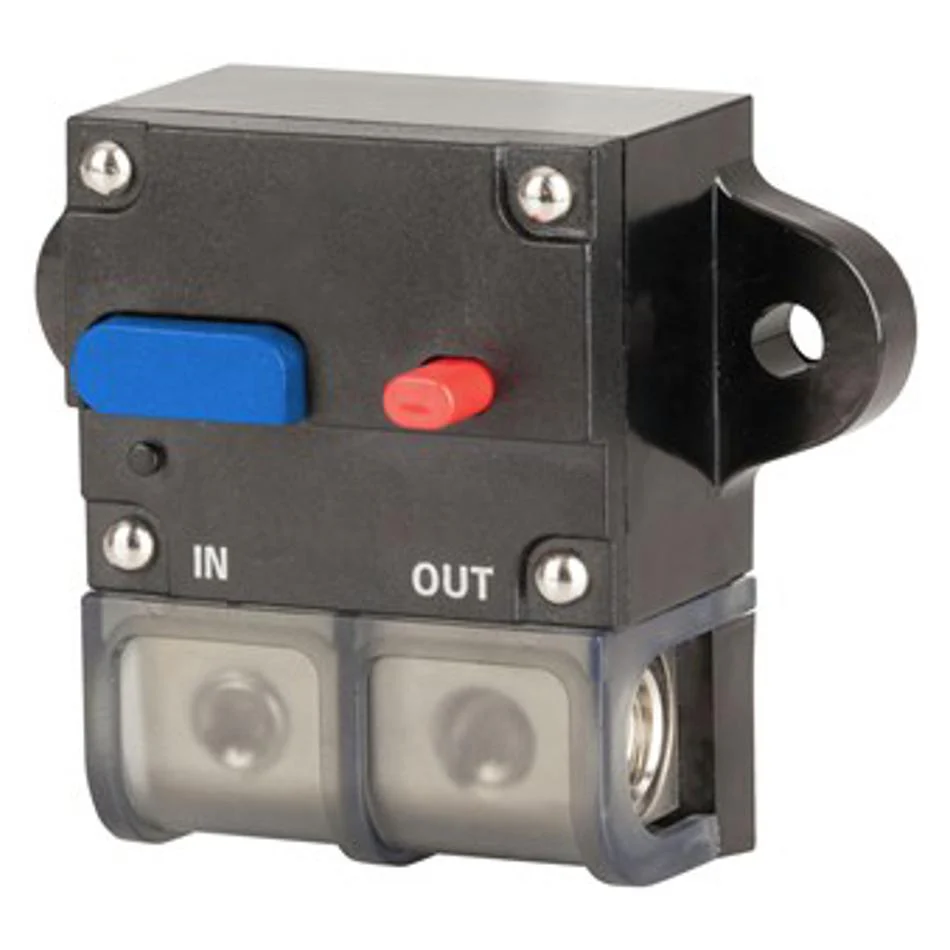

Electus 80A 32Vdc Panel Mount Circuit Breaker SZ2087
- Summary
- Specifications
-
The reset switch is high grade and will not fail in a short period unlike other units in the market. It has a protective plastic cover to prevent accidental shortage. Incorporates multi-wire gauge inputs and outputs, perfect for high end car audio installations, automotive wiring or solar installations. Terminals are platinum plated. Not IP rated for water or dust protection.
- Rated maximum 80A current
- Rated maximum voltage 32VDC
- Trip-free operation
- Built-in brass block suits 0AWG wire
- Switchable/manual push-to-trip operation
- Visible trip indication
- Prominent trip/circuit breaker button
A high quality, heavy duty 12V or 24V panel mount circuit breaker rated to 80 amps. Comes with a cover and connects via screw terminals to your circuit.
Contains Button Cell false Length 85mm Width 68mm Height 35mm Weight 210g Packaged Volume 0.49l Packaged Weight 0.23kg Packaged Length 13cm Packaged Width 7.5cm Packaged Height 5cm Availability Stocked item Additional Information For more information on our shipping policy follow this link and for our returns policy click here.
