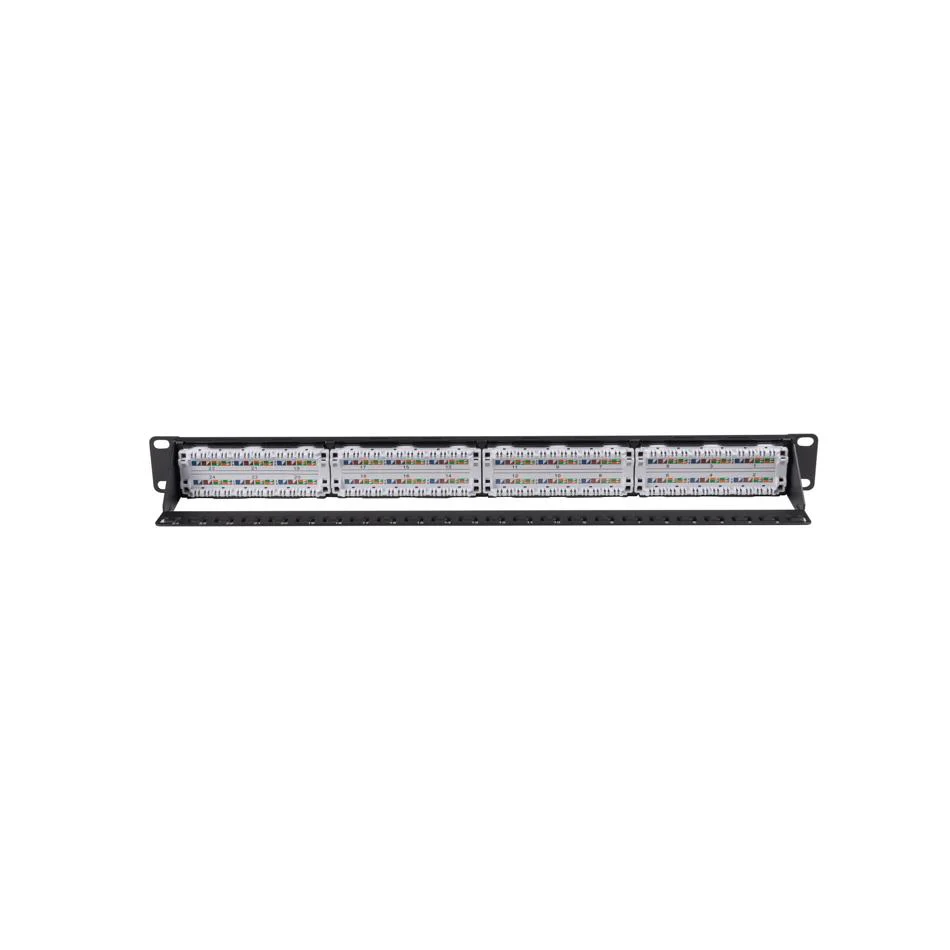

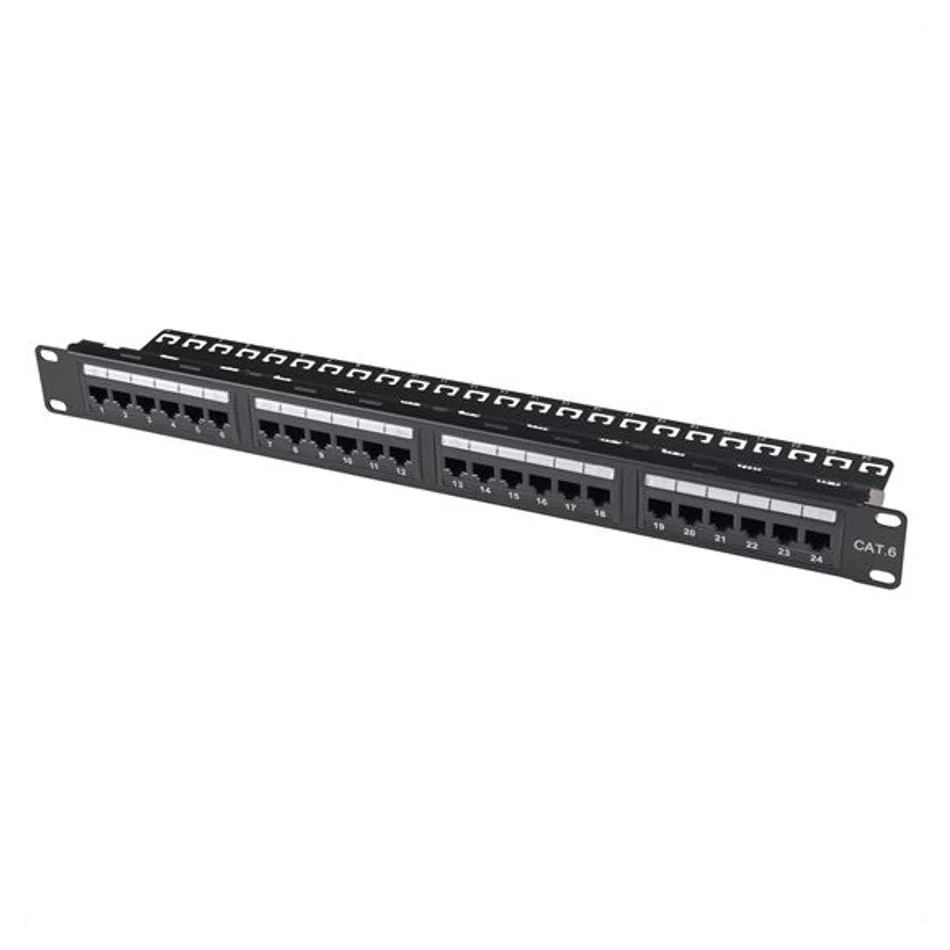

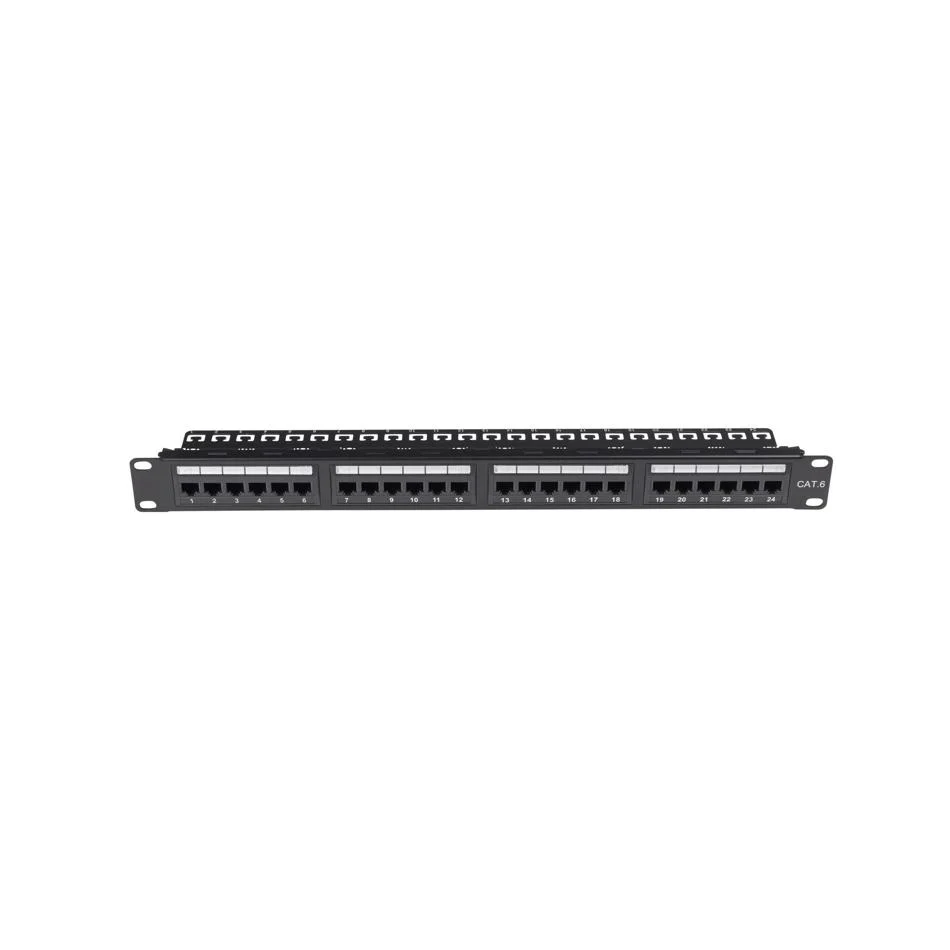

Dynamix 24 Port 19' Cat6 Utp Patch Panel PP-C6-24LCSB
- Summary
- Features
- Specs
- DYNAMIX 24 Port 19'' Cat6 UTP Patch Panel with plastic labelling kit. Rear Support Bar. T568A & T568B Wiring. Dual 110/Krone IDC.
-
- CAT6 patch panel exceeds ANSI/TIA-568-C.2 CAT6 and ISO 11801 2nd edition Class E and EN50173-1 standards
- Component level tested & certified
- Backward compatible to CAT5e, 5 and 3
- Supports termination wiring (T568A/B)
- Including rear cable support bar
- Including plastic labeling kit
- Colour Black
PRODUCT SPECIFICATIONS Material 1.6mm Steel plate Colour Black Installation 19 inch frame/cabine Jack wiring 8p 100 micron inch Gold plated over 100 micron inch nickel Retention strength 7.7kg between jack and plug Insertion force 20N max Operating temperature -10°C ~ 60°C Plug insertion life 750 cycles min IDC insertion life 200 cycles min Conductor 22-26AWG Compliance Standards UL, ETL and 3P certified, ANSI/TIA-568-C.2, ISO/IEC 11801 CAT6 with the applicable electrical transmission characteristics. ETL verified to ANSI/TIA- 568-C.2 and ISO /IEC 11801 CAT6 and teh prodyct model(s) and or brand name. Additional Information For more information on our shipping policy follow this link and for our returns policy click here.
- Summary
- Features
- Specs
- DYNAMIX 24 Port 19'' Cat6 UTP Patch Panel with plastic labelling kit. Rear Support Bar. T568A & T568B Wiring. Dual 110/Krone IDC.
-
- CAT6 patch panel exceeds ANSI/TIA-568-C.2 CAT6 and ISO 11801 2nd edition Class E and EN50173-1 standards
- Component level tested & certified
- Backward compatible to CAT5e, 5 and 3
- Supports termination wiring (T568A/B)
- Including rear cable support bar
- Including plastic labeling kit
- Colour Black
PRODUCT SPECIFICATIONS Material 1.6mm Steel plate Colour Black Installation 19 inch frame/cabine Jack wiring 8p 100 micron inch Gold plated over 100 micron inch nickel Retention strength 7.7kg between jack and plug Insertion force 20N max Operating temperature -10°C ~ 60°C Plug insertion life 750 cycles min IDC insertion life 200 cycles min Conductor 22-26AWG Compliance Standards UL, ETL and 3P certified, ANSI/TIA-568-C.2, ISO/IEC 11801 CAT6 with the applicable electrical transmission characteristics. ETL verified to ANSI/TIA- 568-C.2 and ISO /IEC 11801 CAT6 and teh prodyct model(s) and or brand name. Additional Information For more information on our shipping policy follow this link and for our returns policy click here.
