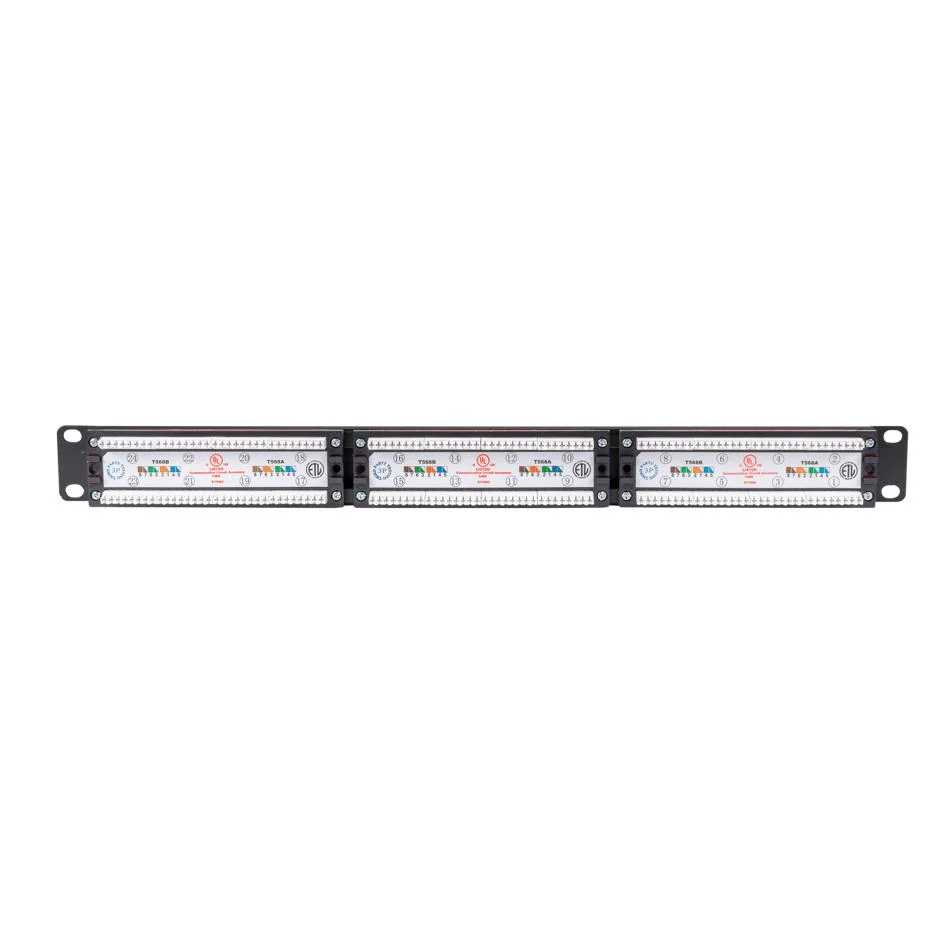

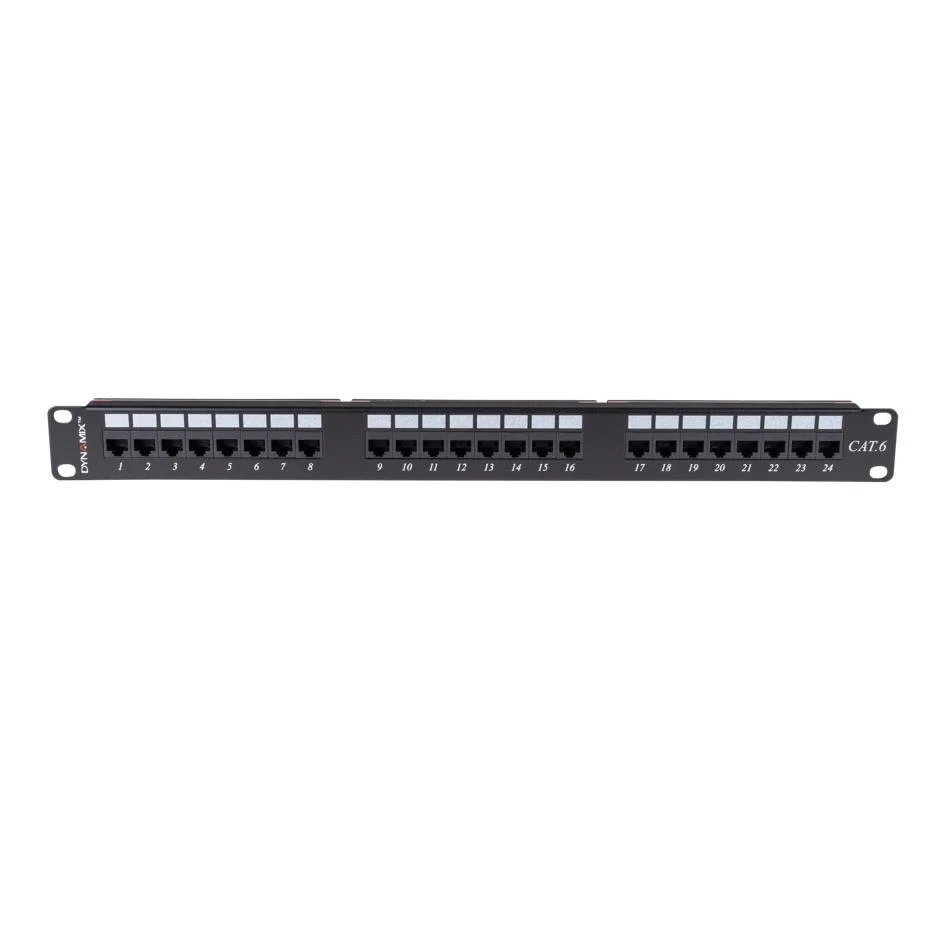

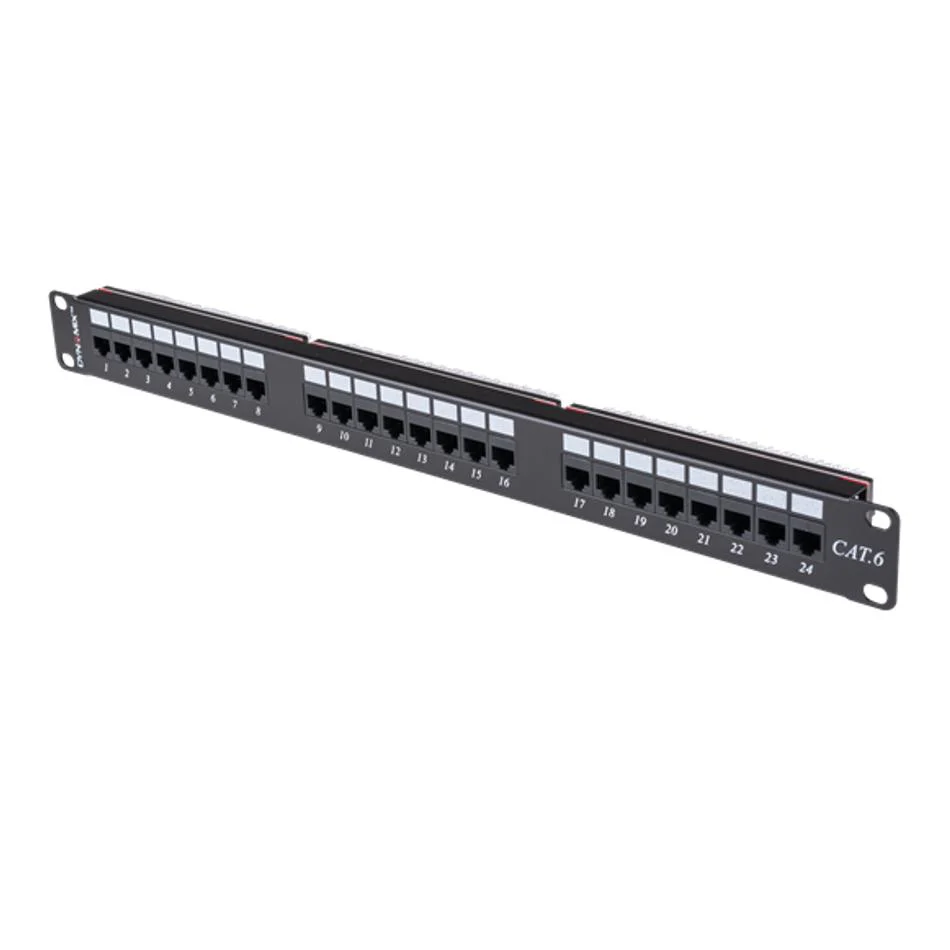

• DYNAMIX 24 Port 19'' Cat6 UTP Patch Panel, T568A & T568B Wiring. 1RU. 110x Terminations With a professional structure design, our Category 6 UTP patch panels are extremely durable for punching down strongly. With 110 and dual type IDC design, accepts 110 and Krone type punch down tools, and 23-26AWG solid and stranded UTP cables. Writable & erasable marking surfaces for each port on the front panel for efficient system management.With a professional structure design, our Category 6 UTP patch panels are extremely durable for punching down strongly. With 110 and dual type IDC design, accepts 110 and Krone type punch down tools, and 23-26AWG solid and stranded UTP cables. Writable & erasable marking surfaces for each port on the front panel for efficient system management.
• • Meeting the ANSI/TIA-568-C.2 Category 6, ISO/IEC11801 and EN50173-1 specification
  • Supports T568 A&B wiring & easy installation
  • IDC connector can accept 23-26 AWG solid and stranded cables
  • Backward compatible with category 5e or 3
  • Offers total solutions of your local networking area
  • Terminate using 110 or Krone tools

• ELECTRICAL SPECIFICATIONS
  Dielectric Strength	1000V RMS for min
  Insulation Resistance	10MΩ min
  Contact Resistance	2mΩ per contact
  Temperature Range	-10°C ~ 60°C max
  Humidity	10% ~ 65%
  PHYSICAL SPECIFICATIONS
  IDC Contact	0.8mm thickness phosphor bronze, tin plating over nickel
  IDC Operating life	Minimum 250 re-terminations
  Jack Contact	Phosphor bronze and minimum of 50 micro-inches of gold in contact area
  Jack Operating life	Minimum 750 insertions
  PCB	FR-4,1.6mm thickness
