FEATURES:

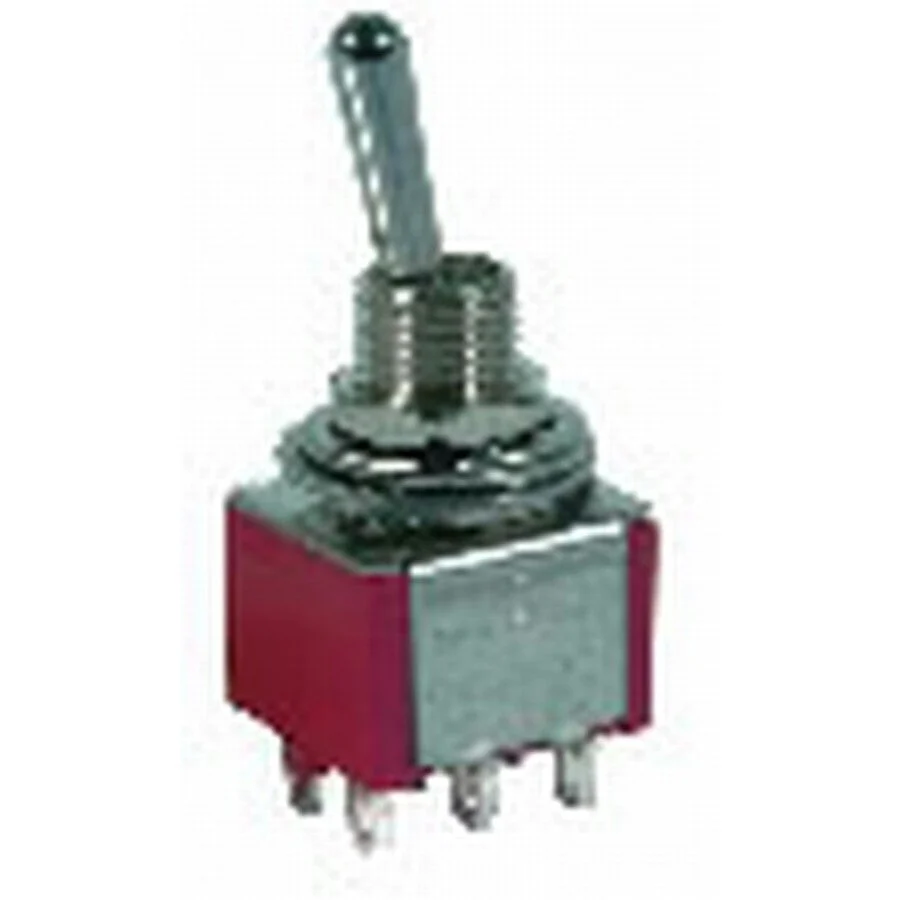

Solder tag with threaded bush
Brackets indicate switch position Centre Off (on - off - on)
Operating temp: -30 degrees - +85 degrees Celsius
Contact rating (with resistive load) Subminiature: 1 Amp @ 250VAC Miniature: 2 Amps @ 250VAC
Contact rating (with resistive load) Subminiature: 3 Amps @ 28VDC Miniature: 5 Amps @ 28VDC
Switch materials Case: Diallyl Phthalate (DAP) (UL94V-0)
Toggle Handle: Brass, chrome plated
Bushing: Brass, nickel-plated
Housing: Stainless Steel
Terminals: Switch support components: Brass, electro-tin plated (for solderability)
Contacts: Fixed and moving, Silver-plated over copper alloy (standard);Fixed and moving, gold plated over nickel-plated alloy.
