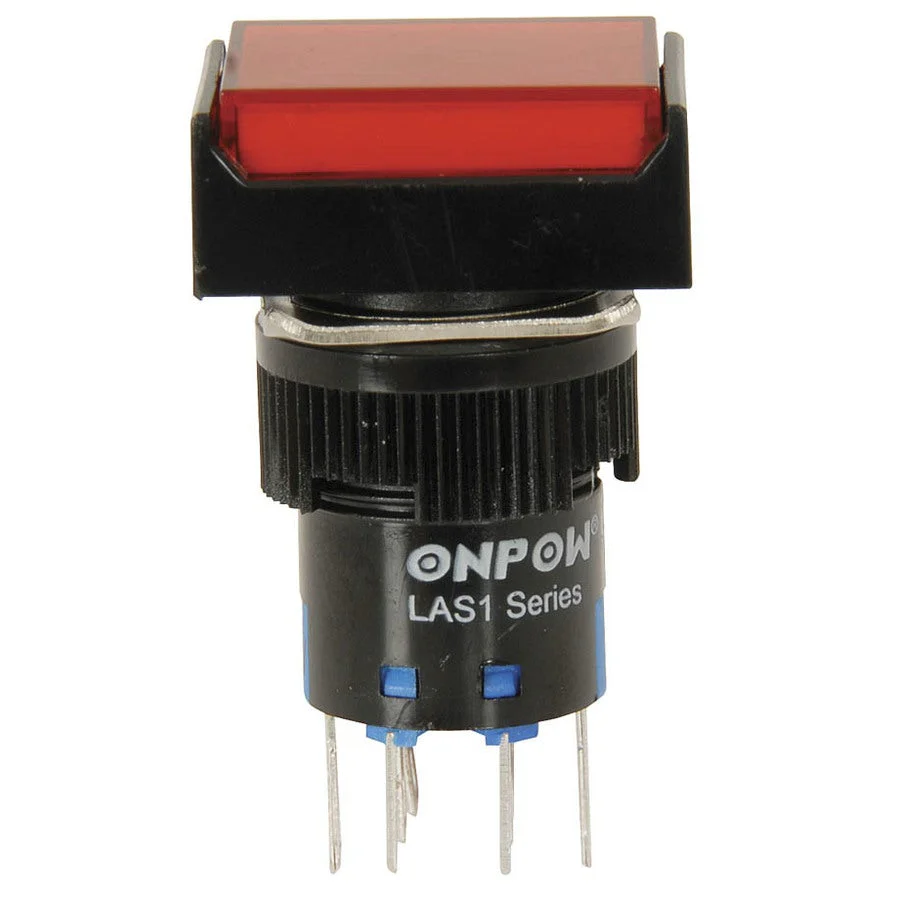

DPDT Illuminated Momentary IP65 Switch Red
Features:
• IP65 rated
• DPDT momentary action
• 12VDC LED illumination
Specifications:
| Switch Type | Pushbutton |
| Pole Throw Type | DPDT |
| Switch Function | Single Action Momentary |
| Poles / Contacts | 2 pole |
| Throws / Positions | 2pos |
| Mechanism Material | Plastic |
| Round Mount Hole Diameter | 15mm |
| Mounting Method | Panel |
| AC Voltage rating | 250V |
| AC current rating | 3A |
| Nominal Voltage | 12V |
| Type | 3mm Standard LED |
| Illumination Colour | Red |
| Connection | Solder Legs |
| Illumination Position | Top |
| IP Rating certificate | Yes |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 5 - Water jets |
| IP Rating | 65 |
| Length | 24mm |
| Width | 18mm |
| Height | 41mm |
Features:
• IP65 rated
• DPDT momentary action
• 12VDC LED illumination
Specifications:
| Switch Type | Pushbutton |
| Pole Throw Type | DPDT |
| Switch Function | Single Action Momentary |
| Poles / Contacts | 2 pole |
| Throws / Positions | 2pos |
| Mechanism Material | Plastic |
| Round Mount Hole Diameter | 15mm |
| Mounting Method | Panel |
| AC Voltage rating | 250V |
| AC current rating | 3A |
| Nominal Voltage | 12V |
| Type | 3mm Standard LED |
| Illumination Colour | Red |
| Connection | Solder Legs |
| Illumination Position | Top |
| IP Rating certificate | Yes |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 5 - Water jets |
| IP Rating | 65 |
| Length | 24mm |
| Width | 18mm |
| Height | 41mm |
$10.89
DPDT Illuminated Momentary IP65 Switch Red—
$10.89
Description
Features:
• IP65 rated
• DPDT momentary action
• 12VDC LED illumination
Specifications:
| Switch Type | Pushbutton |
| Pole Throw Type | DPDT |
| Switch Function | Single Action Momentary |
| Poles / Contacts | 2 pole |
| Throws / Positions | 2pos |
| Mechanism Material | Plastic |
| Round Mount Hole Diameter | 15mm |
| Mounting Method | Panel |
| AC Voltage rating | 250V |
| AC current rating | 3A |
| Nominal Voltage | 12V |
| Type | 3mm Standard LED |
| Illumination Colour | Red |
| Connection | Solder Legs |
| Illumination Position | Top |
| IP Rating certificate | Yes |
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 5 - Water jets |
| IP Rating | 65 |
| Length | 24mm |
| Width | 18mm |
| Height | 41mm |
