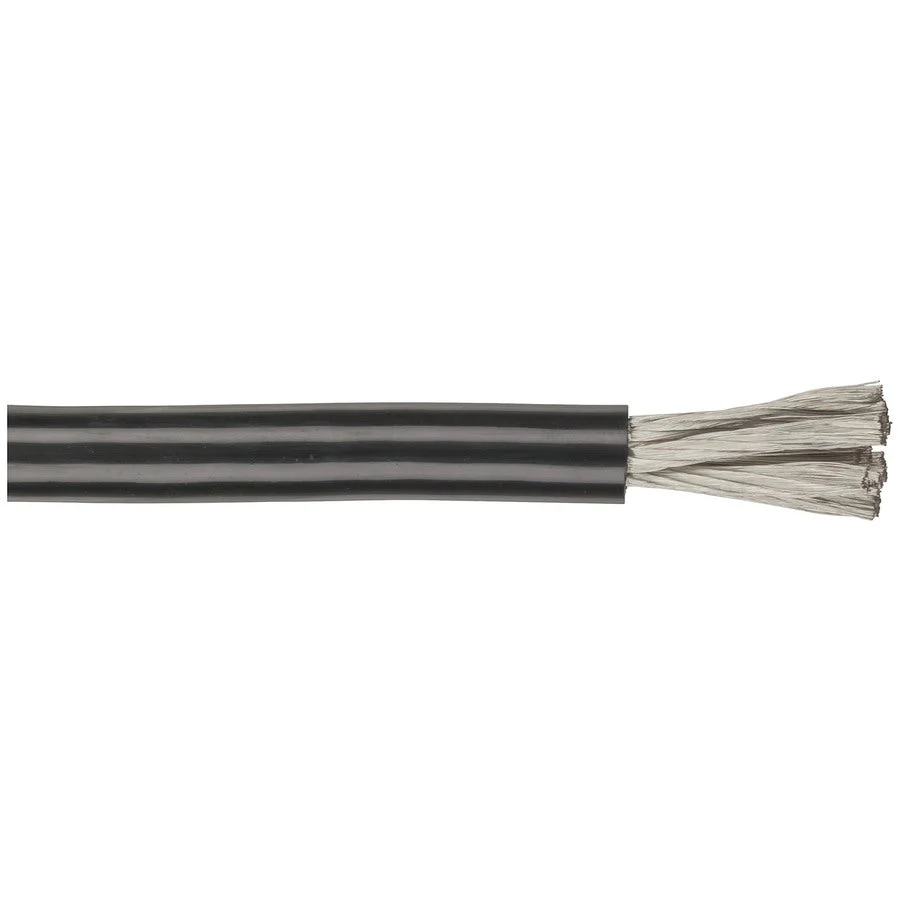

DC POWER Cable - Sold per metre
4GA OFC Super High Current 4GA OFC Power Cable. Run this from your battery to distribution boxes and then the 8GA to amps etc.
- Conductor Material: OFC
- Insulation Material: PVC
- Conductivity: 98% up
Specifications:
| Core Material | Tin Plated Copper |
| Twisted Cores | No |
| OFC wire | Yes |
| Halogen Free Wire | No |
| Oil Resistant Wire | No |
| Strand Weave Configuration | 7 x 7 x 34 |
| Wire Category | Hook up / power |
| Retail Sales Unit | Metre |
| AWG | 4 |
| Roll Length | 50m |
| Outer Diameter | 10mm |
| Conductor Overall Diameter | 7.7mm |
| Individual Conductor Strand Diameter | 0.127mm |
| Cross Sectional Area | 21mm² |
| Number of Conductor Strands | 1666pc |
| Resistance per Linear Metre | 0.97mΩ |
| UV Resistant Cable | No |
| Number of Conductor Cores | 1pc |
| Alternates available | Yes |
| Colour | Black |
| DC current rating | 100A |
Downloads
- Download Datasheet
4GA OFC Super High Current 4GA OFC Power Cable. Run this from your battery to distribution boxes and then the 8GA to amps etc.
- Conductor Material: OFC
- Insulation Material: PVC
- Conductivity: 98% up
Specifications:
| Core Material | Tin Plated Copper |
| Twisted Cores | No |
| OFC wire | Yes |
| Halogen Free Wire | No |
| Oil Resistant Wire | No |
| Strand Weave Configuration | 7 x 7 x 34 |
| Wire Category | Hook up / power |
| Retail Sales Unit | Metre |
| AWG | 4 |
| Roll Length | 50m |
| Outer Diameter | 10mm |
| Conductor Overall Diameter | 7.7mm |
| Individual Conductor Strand Diameter | 0.127mm |
| Cross Sectional Area | 21mm² |
| Number of Conductor Strands | 1666pc |
| Resistance per Linear Metre | 0.97mΩ |
| UV Resistant Cable | No |
| Number of Conductor Cores | 1pc |
| Alternates available | Yes |
| Colour | Black |
| DC current rating | 100A |
Downloads
- Download Datasheet
$12.05
