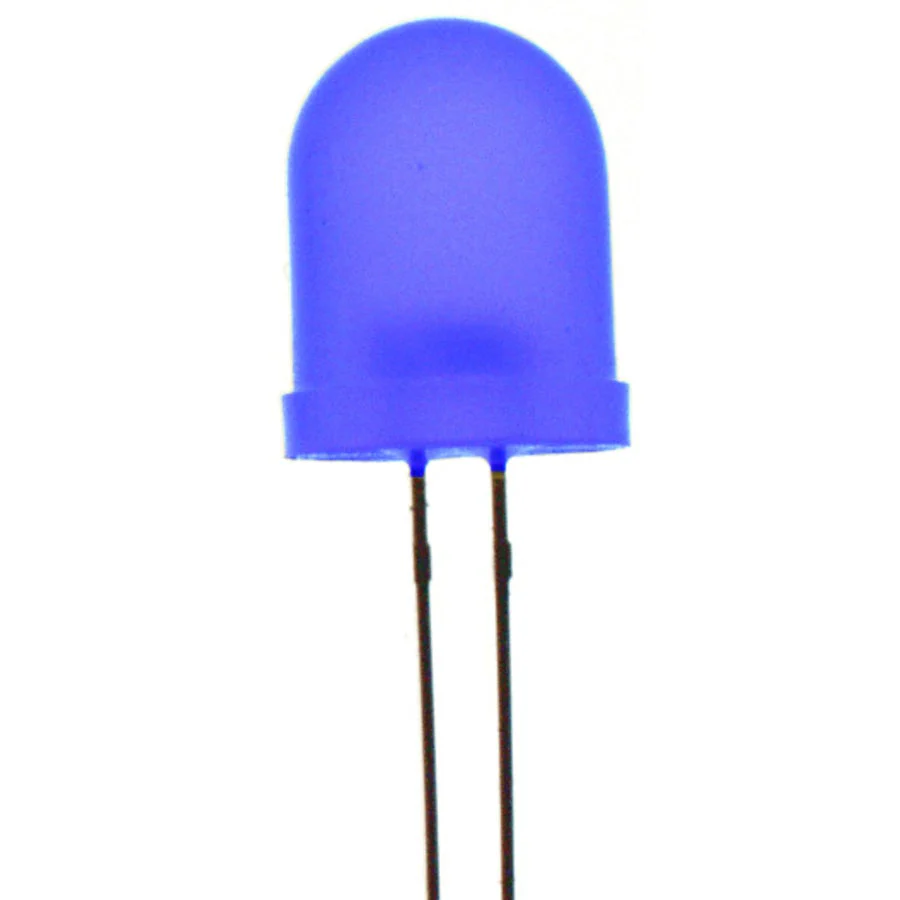

Blue 5mm LED 350mcd Round Diffused
Blue 5mm LED 350mcd Round Diffused
Specifications:
| Diameter | 5mm |
| LED Type | 5mm Standard LED |
| Illumination Type | Single Colour |
| Light Colour | Blue |
| Light Wavelength | 470nm |
| Lens Type | Diffused |
| Viewing Angle | 40° |
| Intensity | 350mcd |
| Vf (typ) - Typical Forward Voltage | 3.3V |
| If (typ) - Typical Forward Current | 20mA |
| If (max) - Maximum Forward Current | 30mA |
| Resistor for 5VDC | 82Ω |
| Resistor for 9VDC | 300Ω |
| Resistor for 12VDC | 430Ω |
Downloads
- Download Datasheet
Blue 5mm LED 350mcd Round Diffused
Specifications:
| Diameter | 5mm |
| LED Type | 5mm Standard LED |
| Illumination Type | Single Colour |
| Light Colour | Blue |
| Light Wavelength | 470nm |
| Lens Type | Diffused |
| Viewing Angle | 40° |
| Intensity | 350mcd |
| Vf (typ) - Typical Forward Voltage | 3.3V |
| If (typ) - Typical Forward Current | 20mA |
| If (max) - Maximum Forward Current | 30mA |
| Resistor for 5VDC | 82Ω |
| Resistor for 9VDC | 300Ω |
| Resistor for 12VDC | 430Ω |
Downloads
- Download Datasheet
$0.63
Blue 5mm LED 350mcd Round Diffused—
$0.63
Description
Blue 5mm LED 350mcd Round Diffused
Specifications:
| Diameter | 5mm |
| LED Type | 5mm Standard LED |
| Illumination Type | Single Colour |
| Light Colour | Blue |
| Light Wavelength | 470nm |
| Lens Type | Diffused |
| Viewing Angle | 40° |
| Intensity | 350mcd |
| Vf (typ) - Typical Forward Voltage | 3.3V |
| If (typ) - Typical Forward Current | 20mA |
| If (max) - Maximum Forward Current | 30mA |
| Resistor for 5VDC | 82Ω |
| Resistor for 9VDC | 300Ω |
| Resistor for 12VDC | 430Ω |
Downloads
- Download Datasheet
