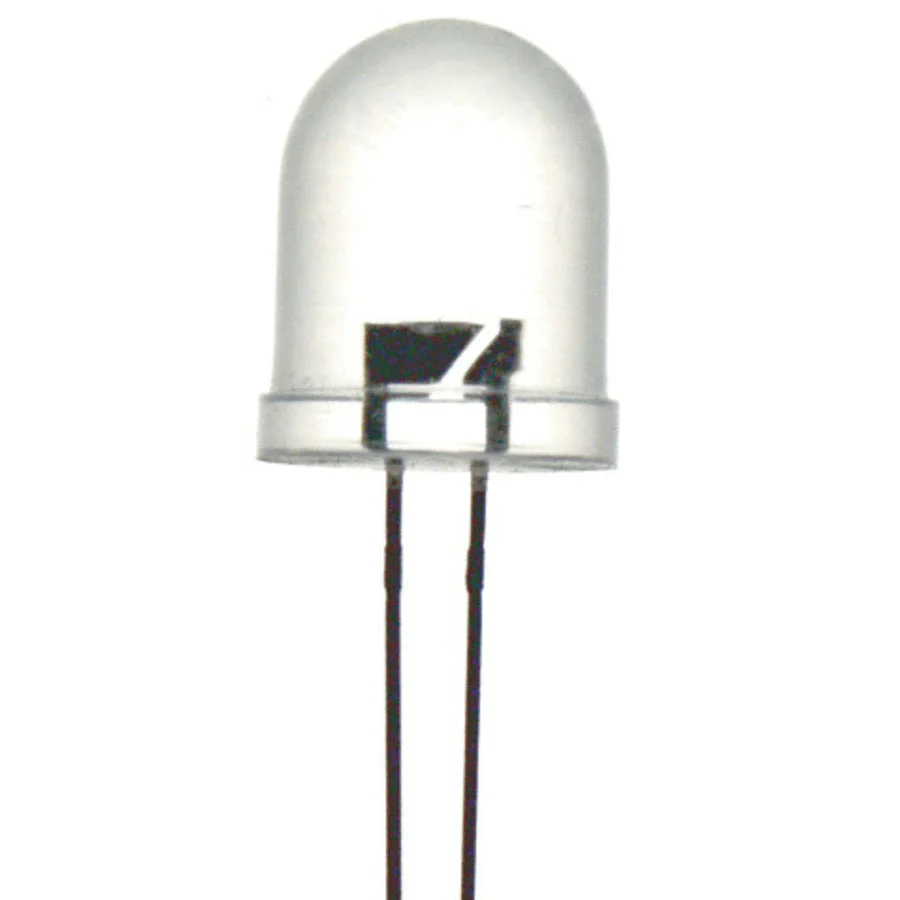

Blue 5mm LED 2500mcd Round Clear
Specifications
Size (mm) 5
Colour Blue
Lens Waterclear
Viewing Angle (Degrees) 15
Wavelength (nm) 468
IF Typical (mA) 20
VF Typical (V) 3.2
IV Typical (mcd) 2500
IF Max Continuous (mA) 30
Preferred Series Resistor (ohms)
5VDC 91
9VDC 300
12VDC 430
Size (mm) 5
Colour Blue
Lens Waterclear
Viewing Angle (Degrees) 15
Wavelength (nm) 468
IF Typical (mA) 20
VF Typical (V) 3.2
IV Typical (mcd) 2500
IF Max Continuous (mA) 30
Preferred Series Resistor (ohms)
5VDC 91
9VDC 300
12VDC 430
Specifications:
| LED Type | 5mm Standard LED |
| Illumination Type | Single Colour |
| Light Colour | Blue |
| Light Wavelength | 468nm |
| Lens Type | waterclear |
| Viewing Angle | 15° |
| Intensity | 2500mcd |
| If (typ) - Typical Forward Current | 20mA |
| If (max) - Maximum Forward Current | 30mA |
| Resistor for 5VDC | 91Ω |
| Resistor for 9VDC | 300Ω |
| Resistor for 12VDC | 430Ω |
| Vf (max) - Maximum Forward Voltage | 3.2V |
Downloads
- Download Datasheet
Specifications
Size (mm) 5
Colour Blue
Lens Waterclear
Viewing Angle (Degrees) 15
Wavelength (nm) 468
IF Typical (mA) 20
VF Typical (V) 3.2
IV Typical (mcd) 2500
IF Max Continuous (mA) 30
Preferred Series Resistor (ohms)
5VDC 91
9VDC 300
12VDC 430
Size (mm) 5
Colour Blue
Lens Waterclear
Viewing Angle (Degrees) 15
Wavelength (nm) 468
IF Typical (mA) 20
VF Typical (V) 3.2
IV Typical (mcd) 2500
IF Max Continuous (mA) 30
Preferred Series Resistor (ohms)
5VDC 91
9VDC 300
12VDC 430
Specifications:
| LED Type | 5mm Standard LED |
| Illumination Type | Single Colour |
| Light Colour | Blue |
| Light Wavelength | 468nm |
| Lens Type | waterclear |
| Viewing Angle | 15° |
| Intensity | 2500mcd |
| If (typ) - Typical Forward Current | 20mA |
| If (max) - Maximum Forward Current | 30mA |
| Resistor for 5VDC | 91Ω |
| Resistor for 9VDC | 300Ω |
| Resistor for 12VDC | 430Ω |
| Vf (max) - Maximum Forward Voltage | 3.2V |
Downloads
- Download Datasheet
$0.28
Original: $0.81
-65%Blue 5mm LED 2500mcd Round Clear—
$0.81
$0.28Description
