ATMEGA328P MCU IC with Arduino UNO Bootloader
Arduino Compatible

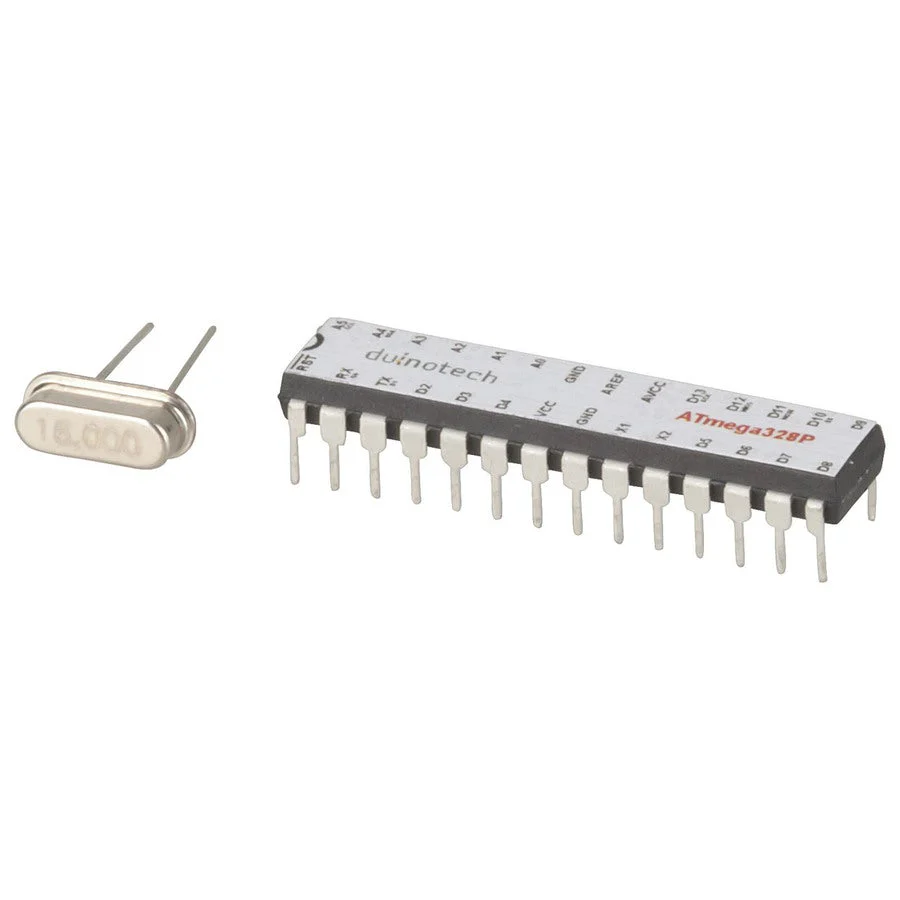

An Atmel AVR ATmega328P microcontroller for you to build your very own customised Arduino compatible projects. For your convenience it comes with the Arduino Uno bootloader pre-installed and features a label on top which details the pinouts. Includes 16MHz crystal oscillator.
• Same IO pins as Duinotech Uno Board
• 0 - 4MHz @ 1.8 - 5.5V, 0 - 10MHz @ 2.7 - 5.5V, 0 - 20MHz @ 4.5 - 5.5V
• 28-pin DIP format for easy use in breadboards or Arduino compatible boards
Data Sheet: http://ww1.microchip.com/downloads/en/DeviceDoc/Atmel-42735-8-bit-AVR-Microcontroller-ATmega328-328P_Datasheet.pdf
| microcontroller brand | Atmel |
| microcontroller boot loader | Yes |
| microntroller program memory | 32KB |
| microcontroller RAM | 2KB |
| microcontroller EEPROM | 1KB |
| microcontroller ICSP | Yes |
| micro A to D converter | Yes |
| leg distance | 2.54mm |
| active case colour | white |
| active marking code type | Number code |
| minimum temperature | -40°C |
| max temperature | 105°C |
| active number of legs | 28 count |
| diameter of leg | 0.45mm |
| unique marking code | ATMEGA328P |
| microcontroller clock harmonic | Yes |
Downloads
- Download Manual
- Download Datasheet
- Download Manual
- Download Datasheet
