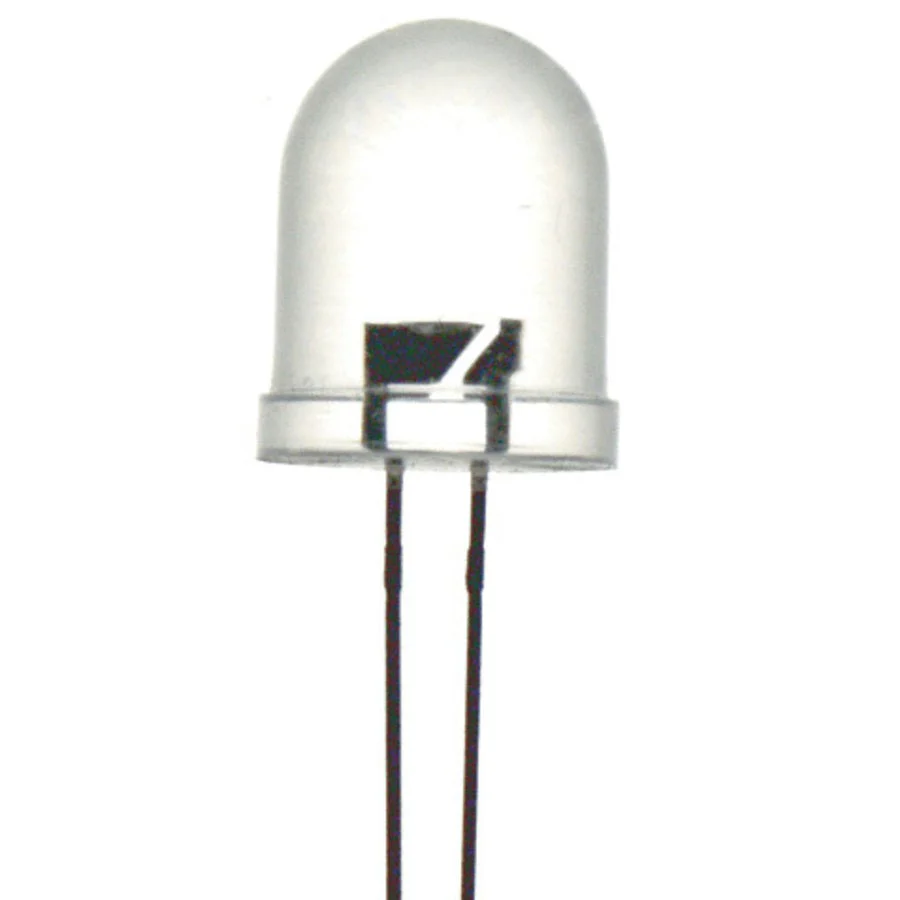

Aqua 5mm LED 7000mcd Round Clear
Aqua 5mm LED 7000mcd Round Clear
Specifications:
| Diameter | 5mm |
| LED Type | 5mm Standard LED |
| Illumination Type | Single Colour |
| Light Colour | Aqua |
| Light Wavelength | 505nm |
| Lens Type | waterclear |
| Viewing Angle | 15° |
| Intensity | 8500mcd |
| Vf (typ) - Typical Forward Voltage | 3.5V |
| If (typ) - Typical Forward Current | 20mA |
| If (max) - Maximum Forward Current | 30mA |
| Resistor for 5VDC | 75Ω |
| Resistor for 9VDC | 270Ω |
| Resistor for 12VDC | 430Ω |
Downloads
- Download Datasheet
Aqua 5mm LED 7000mcd Round Clear
Specifications:
| Diameter | 5mm |
| LED Type | 5mm Standard LED |
| Illumination Type | Single Colour |
| Light Colour | Aqua |
| Light Wavelength | 505nm |
| Lens Type | waterclear |
| Viewing Angle | 15° |
| Intensity | 8500mcd |
| Vf (typ) - Typical Forward Voltage | 3.5V |
| If (typ) - Typical Forward Current | 20mA |
| If (max) - Maximum Forward Current | 30mA |
| Resistor for 5VDC | 75Ω |
| Resistor for 9VDC | 270Ω |
| Resistor for 12VDC | 430Ω |
Downloads
- Download Datasheet
$1.15
Aqua 5mm LED 7000mcd Round Clear—
$1.15
Description
Aqua 5mm LED 7000mcd Round Clear
Specifications:
| Diameter | 5mm |
| LED Type | 5mm Standard LED |
| Illumination Type | Single Colour |
| Light Colour | Aqua |
| Light Wavelength | 505nm |
| Lens Type | waterclear |
| Viewing Angle | 15° |
| Intensity | 8500mcd |
| Vf (typ) - Typical Forward Voltage | 3.5V |
| If (typ) - Typical Forward Current | 20mA |
| If (max) - Maximum Forward Current | 30mA |
| Resistor for 5VDC | 75Ω |
| Resistor for 9VDC | 270Ω |
| Resistor for 12VDC | 430Ω |
Downloads
- Download Datasheet
