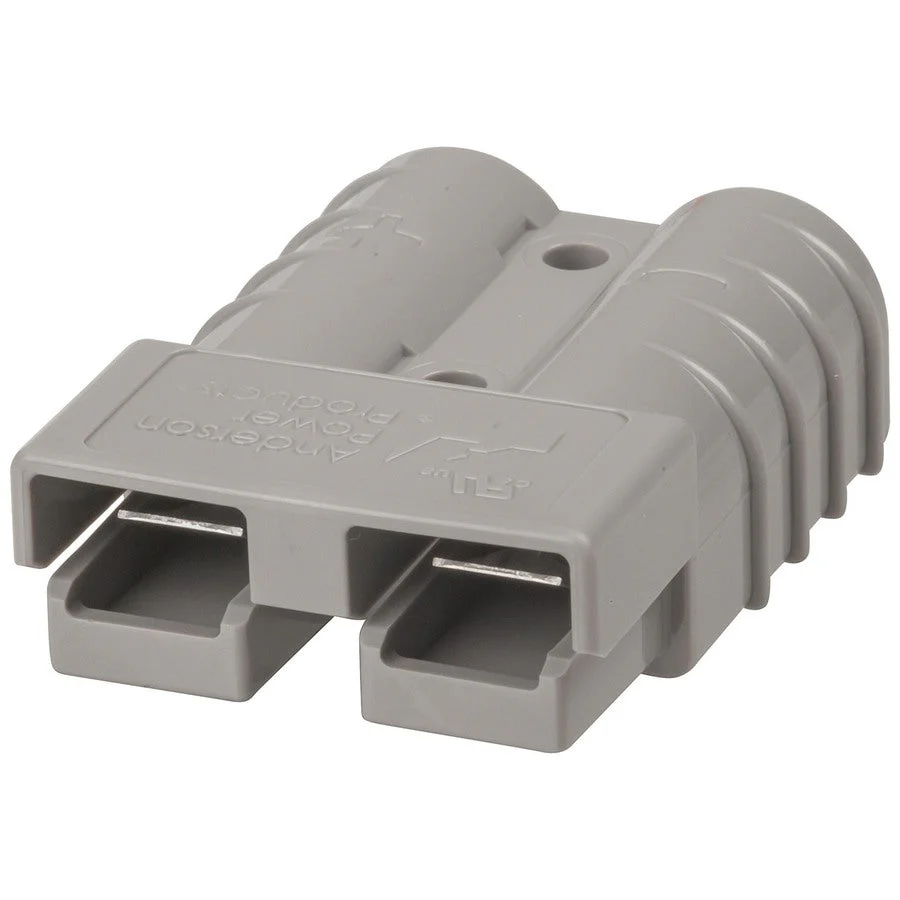

Anderson 50A Power Connector 8 Gauge Contacts
Used widely in both domestic and industry, you'll find this connector in many 4WD applications, boating, automotive and other industries. Supplied as a moulded 2 pole with contacts.
• Contact Wire Size: 8.4mm(8 AWG)
• Max Wire Insulation Diameter: 11mm
• Contact Retention Force: 22kg
• Operating Temperature: -20 to +105 degrees C
| Pack Quantity | 1pc |
| Device | Plug |
| Plug or Socket Type | Anderson 50A 2 Pole |
| Contacts / Pins | 2pc |
| Case Material | Plastic |
| Attachment Method | Crimp |
| DC current rating | 50A |
| DC Voltage | 600V |
| Operating Temperature | 105°C |
Used widely in both domestic and industry, you'll find this connector in many 4WD applications, boating, automotive and other industries. Supplied as a moulded 2 pole with contacts.
• Contact Wire Size: 8.4mm(8 AWG)
• Max Wire Insulation Diameter: 11mm
• Contact Retention Force: 22kg
• Operating Temperature: -20 to +105 degrees C
| Pack Quantity | 1pc |
| Device | Plug |
| Plug or Socket Type | Anderson 50A 2 Pole |
| Contacts / Pins | 2pc |
| Case Material | Plastic |
| Attachment Method | Crimp |
| DC current rating | 50A |
| DC Voltage | 600V |
| Operating Temperature | 105°C |
Description
Used widely in both domestic and industry, you'll find this connector in many 4WD applications, boating, automotive and other industries. Supplied as a moulded 2 pole with contacts.
• Contact Wire Size: 8.4mm(8 AWG)
• Max Wire Insulation Diameter: 11mm
• Contact Retention Force: 22kg
• Operating Temperature: -20 to +105 degrees C
| Pack Quantity | 1pc |
| Device | Plug |
| Plug or Socket Type | Anderson 50A 2 Pole |
| Contacts / Pins | 2pc |
| Case Material | Plastic |
| Attachment Method | Crimp |
| DC current rating | 50A |
| DC Voltage | 600V |
| Operating Temperature | 105°C |
