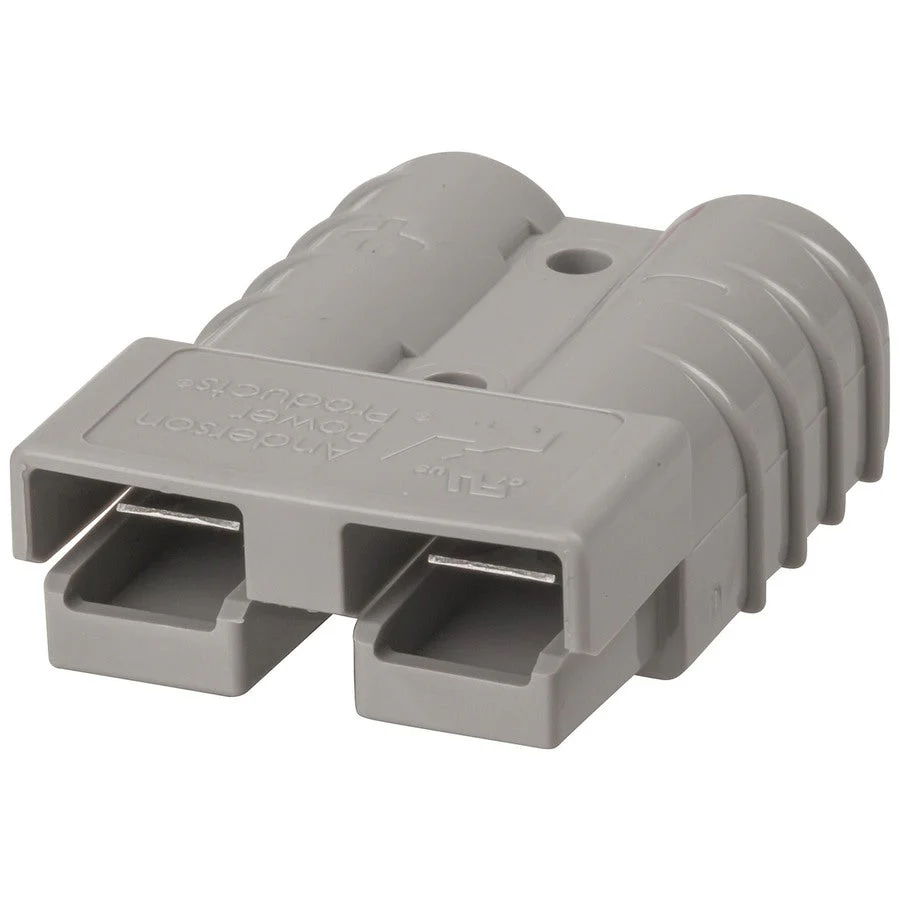

Anderson 50A Power Connector 10-12 Gauge Contacts
Used widely in both domestic and industry, you'll find this connector in many 4WD applications, boating, automotive and other industries. Supplied as a moulded 2 pole with contacts.
• Contact Wire Size: #12-10 AWG
• Max Wire Insulation Diameter: 11mm
• Contact Retention Force: 22kg
• Operating Temperature: -20 to +105 degrees C
| Pack Quantity | 1pc |
| Device | Plug |
| Plug or Socket Type | Anderson 50A 2 Pole |
| Contacts / Pins | 10pc |
| Case Material | Plastic |
| Attachment Method | Crimp |
| DC Voltage | 600V |
| DC current rating | 50A |
| Operating Temperature | 125°C |
